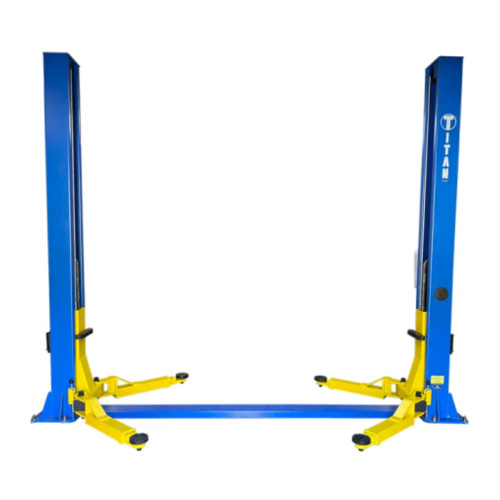

Titan Lifts Hd2P-9000Af 9,000 Lbs 2-Post Lift
The Titan 9,000 LB 2 Post lifts are commercial grade and ideal for automotive service shops or auto enthusiasts. They come with a 220 Volt power unit easily adaptable to most commercial applications.
These lifts have the heavy-duty leaf chain, the steel pulleys, the high-strength cable equalization system and everything you'd expect from a quality lift. The Titan 9,000 LB 2 Post above ground lifts should be installed on a concrete floor with a minimum thickness of 4 inches and 3,000 PSI strength. These rugged and versatile lifts are engineered and manufactured to the highest quality standards to provide you years of trouble free service.
Features
- Commercial Grade
- 9,000lb. Lifting Capacity
- Symmetric Arm Design
- Rubber Door Guards
- Dual-Point Safety Release
- Durable Powder-coated Finish
- Low-profile Lifting Arms equipped with Automatic Arm Restraints
- Dual 3” Cylinders with Low Friction Chain Rollers
- Threaded Lifting Pads
- Stackable Truck Adapters
- Low-Profile Floorplate (Protects Hose and Cables)
- Space-saving Power Unit Mounting Bracket
- Sleek Internal Hose Routing with Integrated Hose Guards
- Anchor Bolt Kit Included
- 1 Year Electric/Hydraulic Parts Warranty
- 5 Year Structural Parts Warranty
*Perfect for garages and shops with low ceilings*
Specifications
| Overall Height | 112" |
|---|---|
| Overall Width | 134-5/8" |
| Width Between Posts | 110-3/8" |
| Drive-Thru | 100-5/8" |
| Min Pad Height | 4-5/8" |
| Max Pad Height | 72-3/4" |
| Lifting Speed | 45 sec |
| Lifting Capacity | 9,000 lb |
| Concrete Spec Min | 4" @ 3,000 PSI |
| Power Unit | 220V-1PH-60HZ-20AMP |
Shipping
| Shipping Length | 115" |
|---|---|
| Shipping Width | 19" |
| Shipping Height | 45" |
| Shipping Weight | 1,300 lb |
| Shipping Length | 118 |
|---|---|
| Shipping Width | 19 |
| Shipping Height | 45 |
Downloads
ManualTitan Standard Duty and Heavy Duty motorcycle lifts are backed by a standard 1 year replacement parts warranty from the date of purchase, to the original purchaser only. The 1 year replacement parts warranty covers power units, hydraulic cylinders, pneumatic cylinders, and all other assembly components such as, but not limited to: cables, caster wheels, valves, switches, wheel vises etc. This does not cover normal wear items such as but not limited to rubber wheel vise pads.
Titan Bulldog Moto Cradle Wheel Chock is warrantied for replacement parts, only to the original purchaser, for a period of 2 years from the date of purchase.
Titan shop equipment products and accessories are warrantied for replacement parts only to the original purchaser for a period of 90 days from the date of purchase. This 90 day replacement parts warranty covers products such as but not limited to: EZ mover jacks, Mini Jacks, tie down products, shop and Bulldog Moto Cradle Wheel Chock accessories, dollies, stands, Light Duty Motorcycle Lifts, etc.
For all warranty considerations, Titan Marketing, LLC will supply replacement parts only during the warranty period. The original purchaser is responsible for all shipping, handling, and any labor charges incurred. All defective parts must be returned to Titan for inspection and examination. Any parts that are found to be defective will be replaced or repaired to proper working order. Other items not listed above may be considered general wear parts and therefore, will not be covered under warranty. These warranties do not extend to defects caused by ordinary wear, abuse, misuse, shipping damage, improper installation, voltage or lack of required maintenance. Titan Marketing, LLC is not to be held responsible for any failure that results from an accident, purchaser/operator abuse, neglect, or failure to operate products in accordance with instructions provided in the owner’s manual(s) supplied. Damage caused by rain, excessive humidity, corrosive environments or other contaminants are not covered under warranty. THESE WARRANTIES DO NOT EXTEND TO ANY COSMETIC DEFECT NOT INTERFERING WITH EQUIPMENT FUNCTIONALITY OR ANY INCIDENTAL, INDIRECT, OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT FROM ANY DEFECT, FAILURE OR MALFUNCTION OF A TITAN MARKETING LLC PRODUCT OR THE BREACH OR DELAY IN PERFORMANCE OF THE WARRANTY.
