JMC Equipment JMC11KC-DX 11,000 Lbs. Two Post Direct Drive Clear Floor Bi-Symmetric Lift

JMC Equipment

SKU:
JMC11KC-DX
Condition:
New
Availability:
Price is subject to change if the product is on backorder. Contact us at 800-562-4791 for availability.
Shipping:
Calculated at Checkout
Capacity:
11,000 Lbs
  • Tuxedo Tp11Dx-Spnca Spin Up Cradle Adapter (Set Of 4) - Tp11Kc-Dx
Total Price:
MSRP: $4,739.00
$3,949.00
(You save  $790.00 )
Adding to cart… The item has been added
Shipping Calculated at Checkout Factory Shipped

JMC Equipment JMC11KC-DX 11,000 Lbs. Two Post Direct Drive Clear Floor Bi-Symmetric Lift

Looking for an installer for this lift??? We can help you find one, call us up and we'll take care of everything - 800-562-4791

Check out one of the most versatile lifts in the market, our very own 11,000 Capacity JMC11KC-DX. It includes three stage arms that will handle symmetric and asymmetric configurations, that will enable you to pick up a wide range of cars in your shop. It also has a single point lock release that ensures vehicle lifting safety. Call us up for more information.

Features

  • 11,000 lbs Capacity.
  • Bi-Symmetric arm design.
  • Rubber Door Guards.

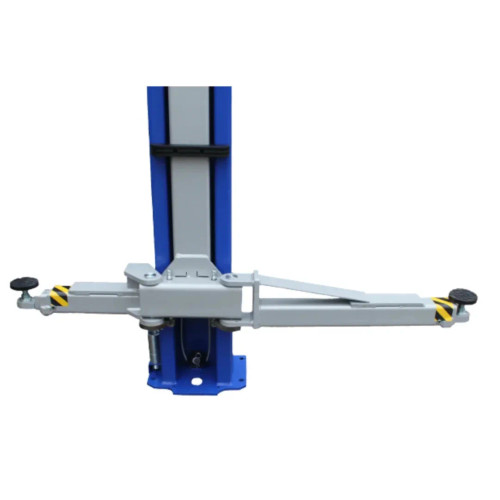

  • 3 Stage Front Arms.
  • Single Piece Column.
  • Direct Drive pull Cylinders.
  • Single Point Lock Release.
  • Heavy Duty Arm Restraint System.
  • Spin Up Low Profile Lift Pads.
  • Stackable Adapters Included.
  • External hose guards.

Specifications

 Lift Model  JMC11KC-DX
 Capacity  11,000 lbs.
 Height Overall  144″
 Width Overall w/ Power Unit  145-1/2″
 Max Lift Height  71″
 Width Between Columns  116″
 Min. Pad Height  4″
 Drive Thru Clearance  104″
 Lifting Speed    50S
 Asymmetric / Symmetric  Asymmetric/Symmetric
 Clear Floor / Floor Plate  Clear Floor
 Short Arm Reach – min/max  23″ – 45″
 Long Arm Reach – min/max  41″ – 57″
 Narrow Bay Setting  NA
 Max Load Per Arm  2,750 lbs.
 Ship Weight  1,705 lbs
 Power  220V – 20 AMP – 1 PH



Optional Accessories (*Sold Separately)

TP11DX-SPNCA



TP11DX-GM19-SPNCA



Downloads

pdf.jpg Flyer

pdf.jpg User Manual

pdf.jpg Part Identification Numbers

*The manufacturer collects Sales Tax on all orders shipped to California

TUXEDO DISTRIBUTORS LIMITED WARRANTY

Structural Warranty:

The following parts and structural components carry a five year warranty:

Columns, Arms, Uprights, Swivel Pins

Legs, Carriages, Overhead Beam

Tracks, Cross Rails, Top Rail Beam

Limited One-Year Warranty:

Tuxedo Distributors, LLC (Tuxedo) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials orworkmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not beenoperated or maintained according to specifications.

Other Limitations:

This warranty does not cover:

1. Parts needed for normal maintenance

2. Wear parts, including but not limited to cables, slider blocks, chains, rubber pads and pulleys

3. Replacement of lift and tire changer cylinders after the first 30 days. A seal kit and installation instructions will be sent for repairs thereafter.

4. On-site labor

Upon receipt, the customer must visually inspect the equipment for any potential freight damage before signing clear on the shipping receipt. Freight damage is not considered a warranty issue and therefore must be noted for any potential recovery with the shipping company.

The customer is required to notify Tuxedo of any missing parts within 72 hours. Timely notification must be received to becovered under warranty.

Tuxedo will replace any defective part under warranty at no charge as soon as such parts become available from the manufacturer. No guarantee is given as to the immediate availability of replacement parts.

Tuxedo reserves the right to make improvements and/or design changes to its lifts without any obligation to previously sold, assembled or fabricated equipment.

There is no other express warranty on the Tuxedo lifts and this warranty is exclusive of and in lieu of all other warranties,expressed or implied, including all warranties of merchantability and fitness for a particular purpose.

To the fullest extent allowed by law, Tuxedo shall not be liable for loss of use, cost of cover, lost profits, inconvenience,lost time, commercial loss or other incidental or consequential damages.

This Limited Warranty is granted to the original purchaser only and is not transferable or assignable.

Some states do not allow exclusion or limitation of consequential damages or how long an implied warranty lasts, so the above limitations and exclusions may not apply. This warranty gives you specific legal rights and you may have other rights, which may vary from state to state.
