AMGO Hydraulics BP-9X 9000 Lbs Floorplate Symmetrical 2-Post Lift

AMGO Hydraulics

SKU:
AH-BP-9X
Condition:
New
Availability:
Please contact us at 800-562-4791 for pricing and availability.
Shipping:
Calculated at Checkout
Capacity:
9,000 Lbs
Total Price:
MSRP: $3,090.00
$2,575.00
(You save  $515.00 )
Adding to cart… The item has been added
Shipping Calculated at Checkout Factory Shipped

AMGO Hydraulics BP-9X 9000 Lbs Floorplate Symmetrical 2-Post Lift

The BP-9X is a base-plate two-post lift designed for low ceiling garages. The total column height of 111 7/8″ allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet The BP-9X features symmetric arms, and automatic arm restraints. The BP-9X also has a single point release switch to make it easier to unlock both column locks form one column.

Features

  •  9,000 lbs capacity, commercial grade 2-post base plate lift is designed and built for any professional shops and home garages to fit low ceiling workshop environment without overhead obstructions
  •  Single-point safety release allows the operator to unlock the safety locks from both Columns simultaneous. There is also a dual locking system for additional safety
  •  4 three-stage arms are suitable for more vehicles
  •  Automatic arm restraints keep the arms locked in their proper positions
  •  Self-lubricating UHMW Polyethylene sliders and bronze bushings
  •  Aircraft quality cable is used for synchronization
  •  Detachable foot guard and tool tray allow for a clutter free work space
  •  Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components
Model BP-9X
Lifting Capacity 9,000lbs (4,082kg)
Lifting Time 49S

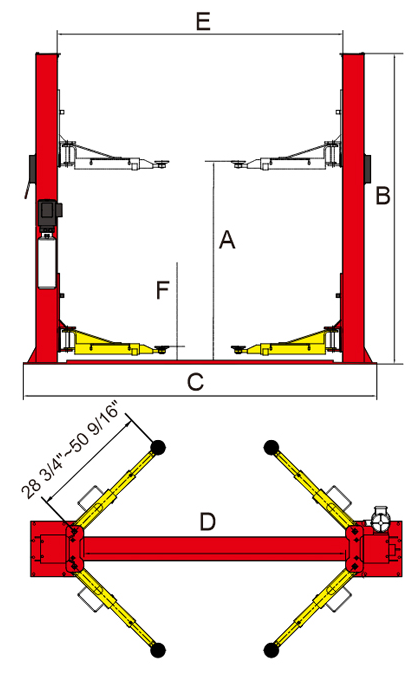

A: Lifting height 76 3/8″ ~ 85 3/8″ (1940~2169mm)
B: Overall Height 111 7/8″ (2841mm)
C: Overall Width 136 1/4″ (3460mm)
D: Drive-Thru Clearance 100 3/4″ (2560mm)
E: Width Between Columns 112 1/4″ (2850mm)
F: Minimum Pad Height 3 1/2″ (90mm)
Motor 2.0HP / 220V/60Hz, Single Phase
Gross Weight 1,590lbs (721kg)





Download

Brochure

Installation Manual

Warranty information.

AMGO offers one of the best product warranties in the industry from the original factory commercial invoice date in the industry as follows:
1.Steel structure components(including Columns,Carriage,,Lifting Arms, Top Beam, Floor Cover,Platform,Cross Beam,Car Drive-in Ramp, Scissor,baseframe etc.) warranty for five years.
2.Hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.)warranty for two years.
3.Other parts(no including consumption parts such as rubber pad),electrical components, power unit warranty for one year.

Warranty procedure:

In order to start a warranty claim, you need fill out completely (including date of purchase) the warranty card attached below, and then send it to technical.support@amgohyd.com. If this information is not provided, the factory will not support the claim.

Click here to download the warranty card
