BendPak HD-973PX 9,000 Lbs & 7,000 Lbs Tri-Level Parking Lift

BendPak HD-973PX 9,000 Lbs & 7,000 Lbs Tri-Level Parking Lift

Supersize your parking capacity with this revolutionary tri-level parking lift from BendPak! This unique four-post parking lift design parks up to three vehicles in one space, instantly tripling your parking capacity. With an extended length and taller rise compared to the HD-973P, the HD-973PX has even more room for your longest and boxiest vehicles.

The tri-level HD-973PX is a four-post parking lift that maximizes your parking capacity without adding any additional real estate. Each HD-973PX houses up to three vehicles on strengthened parking platforms to give you the most space for your buck. With an additional 84” of overall height compared to the HD-973P parking lift, the HD-973PX supports some of the biggest vehicles around! This extra height, along with the additional 10” of runway length, gives you the perfect amount of space to fit longer and taller vehicles, while maintaining a height that will fit comfortably in most shops and garages. With the topmost platform’s weight capacity sitting at a hefty 7,000 lbs. and the lower deck handling up to 9,000 lbs., the HD-973PX is ideal for lifting even heavy-duty vehicles like full-size trucks and SUVs.

This rugged design is ready for installation indoors or outdoors, instantly tripling your parking and storing capability. The easy to use top-of-the-line design ensures that your vehicles are being lifted safely, and efficiently. Which saves you time, and worry. The safety features that come standard with any BendPak lift make sure your cars stay in the air until YOU move them, and intuitive design cycles through the cars at the push of a button. With the HD-973PX you’re getting a lift that can not only park your taller and longer vehicles, but fits comfortably and safely.

Features

• Extended length, high rise.
• Perfect for parking, storage and service.
• 7,000 lb. capacity upper deck.
• 9,000 lb. capacity lower deck.
• Superstructure features durable powder coat finish.
• Perfect for cars, trucks, and SUVs.
• Platforms feature full-length aluminum decking.
• Rugged welded-steel construction.
• Powerful hydraulic cylinders.
• Heavy-duty 3/8” lifting cable.
• Heavy-duty steel construction.
• Wide base-plate for maximum stability.
• Heavy-duty steel construction.
• Grease nipples are located on every sheave and sheave axle to make lubrication maintenance a breeze.
• Integrated hydraulic flow restrictor provides controlled descent in event of hose rupture.
• Reliable electric-hydraulic power system.
• Multi-position safety locks in each column.
• Automatic safety locks combined with redundant anti-fall devices.
• Adjustable lock ladders.
• Independent backup slack-cable safety latches.
• Push-button pneumatic safety release..
• Padded trip bar with limit switch prevents lower vehicle from making contact with upper platform.
• Simple controls.
• Optional drive-thru ramps available.
• Optional 4,500-lb. air-hydraulic rolling jacks available.

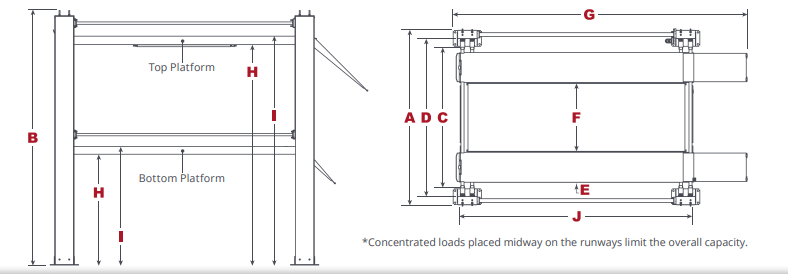

Specifications

*Specifications subject to change without notice.

WARNING: California Prop 65

Downloads

  Manual
  Flyer
