BendPak HD-973P 9,000 & 7,000 Lb. Capacity Tri-Level Parking Lift
Meet the HD-973P, whose patent-pending design allows the storage of three vehicles in a single parking space. Plus, its independent platforms mean you can park vehicles at the height of your choice. Ideal for sedans, SUV’s and full-size trucks.
The HD-973P by BendPak is a four-post parking lift that offers a cost-effective way to triple the capacity of typical parking areas. Our patent-pending design can be used indoors or outdoors, and this lift allows the storage of three vehicles in a single parking space. The upper platform accommodates vehicles weighing up to 7,000 lbs., and the lower deck heftily handles up to 9,000 lbs. This is the perfect mechanical parking system for sedans, SUVs and full-size trucks.
While triple-stacking parking lifts are incredibly useful tools, most examples of this type of structure are too tall for many shops and garages. That's why we invented the HD-973P. It is an incredibly unique parking lift that fits in more spaces than any other triple-stacker. The secret to its success: Its specially engineered design lacks cumbersome mechanisms that project high over the top of the lift. This eliminates several feet of lift structure while maintaining a safe, stable and revolutionary design.
Features
- Perfect for parking, storage and service.
- 7,000 lb. capacity upper deck.
- 9,000 lb. capacity lower deck.
- Superstructure features durable powder coat finish.
- Perfect for cars, trucks, and SUVs.
- Platforms feature full-length aluminum decking.
- Rugged welded-steel construction.
- Powerful hydraulic cylinders.
- Heavy-duty 3/8” lifting cable.
- Heavy-duty steel construction.
- Wide base-plate for maximum stability.
- Heavy-duty steel construction.
- Grease nipples are located on every sheave and sheave axle to make lubrication maintenance a breeze.
- Integrated hydraulic flow restrictor provides controlled descent in event of hose rupture.
- Reliable electric-hydraulic power system.
- Runways feature non-skid surface.
- Multi-position safety locks in each column.
- Automatic safety locks combined with redundant anti-fall devices.
- Adjustable lock ladders.
- Independent backup slack-cable safety latches.
- Push-button pneumatic safety release..
- Padded trip bar with limit switch prevents lower vehicle from making contact with upper platform.
- Simple controls.
- Optional drive-thru ramps available.
- Optional 4,500-lb. air-hydraulic rolling jacks available.

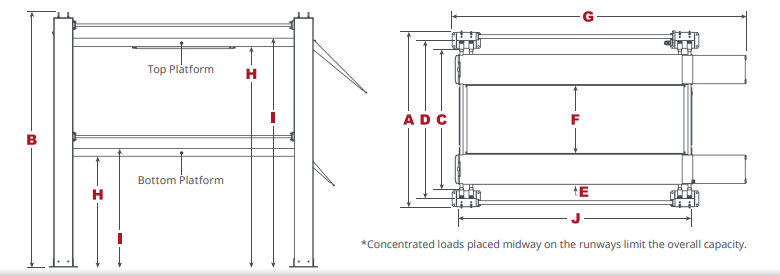

Specifications
| Style | |
| Style | Multi-Level Parking Lift |
| Top Platform | |
| Lifting Capacity* | 7,000 lbs. (3,175 kg) |
| *Max Capacity / Front Axle | 3,500 lbs. (1,588 kg) |
| *Max Capacity / Rear Axle | 3,500 lbs. (1,588 kg) |
| A - Overall Width | 112" (2,849 mm) |
| B - Overall Length | 242" (6,139 mm) |
| C - Height of Columns | 161" (4,093 mm) |
| D - Drive-thru Clearance | 87" (2,201 mm) |
| E - Maximum Rise | 139.5" (3,544 mm) |
| F - Maximum Lifting Height | 144" (3,667 mm) |
| G - Distance Between Columns | 100" (2,546 mm) |
| H - Runway Width | 19" (482 mm) |
| I - Width Between Runways | 44" (1,121 mm) |
| J - Runway Length | 188.5" (4,786 mm) |
| Min. Wheelbase @ rated Capacity1 | 135" (3,429 mm) |
| Min. Wheelbase @ 75% Capacity1 | 115" (2,921 mm) |
| Min. Wheelbase @ 50% Capacity1 | 95" (2,413 mm) |
| Min. Wheelbase @ 25% Capacity1 | 80" (2,032 mm) |
| Locking Positions | 31 |
| Locking Spacing | Every 4" (102 mm) |
| Lifting Time to Max. Rise | 90 seconds |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Bottom Platform | |
| Lifting Capacity* | 9,000 lbs. (4,082 kg) |
| *Max Capacity / Front Axle | 4,500 lbs. (2,041 kg) |
| *Max Capacity / Rear Axle | 4,500 lbs. (2,041 kg) |
| A - Overall Width | 112" (2,833 mm) |
| B - Overall Length | 242" (6,139 mm) |
| C - Height of Columns | 161" (4,093 mm) |
| D - Drive-thru Clearance | 90.25" (2,292 mm) |
| E - Maximum Rise | 70" (1,783 mm) |
| F - Maximum Lifting Height | 75" (1,906 mm) |
| G - Distance Between Columns | 100" (2,546 mm) |
| H - Runway Width | 19" (482 mm) |
| I - Width Between Runways | 44" (1,121 mm) |
| J - Runway Length | 176" (4,474 mm) |
| Min. Wheelbase @ rated Capacity1 | 125" (3,175 mm) |
| Min. Wheelbase @ 75% Capacity1 | 110" (2,794 mm) |
| Min. Wheelbase @ 50% Capacity1 | 90" (2,289 mm) |
| Min. Wheelbase @ 25% Capacity1 | 75" (1,905 mm) |
| Locking Positions | 13 |
| Locking Spacing | Every 4" (102 mm) |
| Lifting Time to Max. Rise | 50 seconds |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Shipping | |
| Shipping Weight | 5,296-lbs (2,402 kgs) |
1 The Lift supports less weight than its rated capacity when the vehicle’s wheelbase is shorter; this is because the wheels of such a vehicle are closer to the middle of the Runways, where there is less strength. For example, the maximum weight allowed on the Lift for a vehicle with a wheelbase of 95” is 50 percent of the Lift’s rated capacity (or 3,500 lbs. when the rated capacity is 7,000 lbs.).
Note: An air supply (minimum 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
