Bendpak HD-9SW 9,000-lb. Capacity Super Wide 4 Post Lift
To accommodate extra-wide vehicles on a 9K capacity four post lift, choose the HD-9SW. We also offer a variety that offers 82” of overhead clearance: the HD-9SWX. The “SW” stands for super-wide, and it’s the ideal car lift to double your parking and/or service wider vehicle types. The taller “X” model is also idea for taller wrenchers looking for a little more headroom underneath. The extra overhead also makes it possible to park higher-clearance vehicles.
Features
- Standard rise.
- Shorter runway for smaller spaces.
- Runways accommodate wide or narrow vehicles.
- Runways include rail kit for optional accessories.
- Electric / hydraulic power system.
- Single hydraulic cylinder mounted underneath runway.
- Fully enclosed lifting cables, safety locks and sheaves.
- Internal anti-sway slider blocks in each column.
- Oversized self-lubricating cable rollers.
- Oversized sheave diameter reduces cable fatigue.
- High-speed lifting.
- Features heavy-duty 3/8" aircraft cable.
- Rugged 1.25" roller axles.
- Multi-position safety locks in each column.
- Adjustable lock ladders.
- Runways feature non-skid surface.
- Push-button pneumatic safety release.
- Independent backup slack-cable safety latches.
- Inside runways adjust for different tread widths.
- Customizable power unit location.
- Removable approach ramps for additional drive-under clearance.
- Optional drive-thru ramps available.
- Optional drip trays available.
- Optional solid deck available to increase storage capacity.
- Optional 4,500-lb. air / hydraulic rolling jacks available.

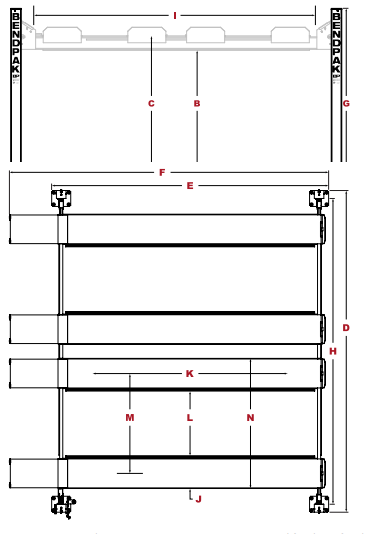

Specifications
| Model | HD-9SW |
| Lifting capacity (1) | 9,000 lbs / 4,082 Kg |
| a Overall width (2) | 202” / 5,131 mm |
| b Outside length | 174” / 4,418 mm |
| c Overall length | 218,5” / 5,549,1 mm |
| d Post height | 90” / 2,282 mm |
| e Maximum rise | 77” / 1,957 mm |
| f Maximum lifting height | 72,3” / 1,836 mm |
| g Distance between Post | 192” / 4,877 mm |
| h Runway width | 19” / 482 mm |
| i Width between Runways | 34,30” min. - 41” max. / 871 mm – 1,039 mm |
| j Runway length | 164,50” / 4,178 mm |
| k Maximum height below ramp | 70” /1,748,5 mm |
| Min. wheelbase @ rated capacity (3) | 115” / 2,921 mm |
| Min. Wheelbase @ 75 capacity (3) | 100” / 2,540 mm |
| Min. wheelbase @ 50 capacity (3) | 85” / 2,159 mm |
| Min. Wheelbase @ 25 capacity (3) | 70” / 1,778 mm |
| Locking positions | 14; Spaced every 4” / 102 mm |
| Lifting time | 55 seconds |
| Motor | 200 VAC, 60 Hz, 1 Ph (Special voltages available upon request) |
1. The combined weight for both Vehicles on the Runways cannot exceed 9,000 lbs.
2. Overall Width is defined as the dimension outside-to-outside of the Baseplates. Use the Overall Width listed here for creating chalk lines.
3. The Runways support less weight than its rated capacity if the Vehicle's wheelbase is shorter than 135.00". This is because the wheels are closer to the middle of the Runways, where there is less strength. For example, the maximum weight allowed on the Lift for a Vehicle with a wheelbase of 85.00" is 50 percent of the Lift's rated capacity (or 4,500 lbs. when the rated capacity is 9,000 lbs.).
*Specifications subject to change without notice.
