Challenger Lifts SRM10 Short Rise 10,000 Lbs Vehicle Lift

Description

Challenger’s shortrise lift is a great choice for brake and tire servicing needs. Dual hydraulic cylinders provide a 10,000 lb. capacity to lift vehicles ranging from small passenger cars to light trucks. Standard spotting blocks and optional auxiliary adapters reach an even wider range of vehicle lift points.

Features & Benefits

  • 10,000 lb. lift capacity
  • 22” raised height
  • Standard two-position spotting blocks reach pickup points on a wider range of vehicles
  • Three locking positions for ease of use
  • Powder coat finish provides long-lasting durability
  • Can be mounted flush

Specifications

 Model Number  SRM10
 Lifting Capacity  10,000 lbs.
 Raised Height  22”
 Lowered Height  4.25”
 Locking Bar Heights  13.75”, 18.325”, 21.25”
 Low Adapter Position  4.75”
 High Adapter Position  6.75”
 Overall Width  85” (+ 2.5” for handle)
 Outside Width of Platforms  72”
 Width between Platforms  23”
 Platform Overall Length  50”
 Ramp & Platform Overall Length  82.5”
 Overall Length  92.875”
 Rearward Movement  13.25”
 Motor / Voltage  1HP, 115v, 60Hz, 1Ph
 ALI/ETL Certified  Yes
 Colors Available  Blue, Red

Additional Parts and Accessories

Productivity Accessories
Part No. Description

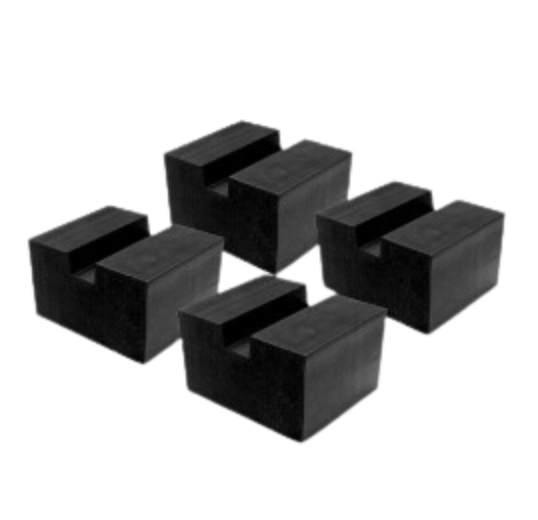

 SR10-1  Two-position steel adapter blocks with rubber pads (set of 4)
 10354  Surface Mounted Steel Hose Guard Kit includes two 64" pieces and one 20" piece
 10356  Surface Mounted Steel Hose Guard Kit includes three 20" pieces

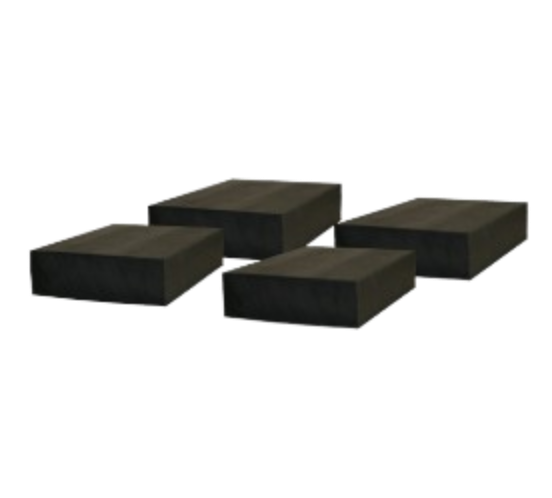

 10549  1.5" Spotter Block Auxiliary Adapter (set of 4)
 10554  3" Spotter Block Auxiliary Adapter (set of 4)
 63100  4.125" Spotter Block Auxiliary Adapter (set of 4)

Download

Challenger Lifts Warranty Agreement

Challenger Lifts, Inc. lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lift, Inc., www.challengerlifts.com.

This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a CLI authorized service representative.

This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of CLI.

The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.

Functional parts are any wear items, as defined from time to time by Challenger Lifts. Examples include power units, cylinders, sheaves, hoses, cables, controls, etc. and may differ depending on the model of lift.

Structural parts are items, as defined from time to time by Challenger Lifts, Inc. that are not Functional Parts and include items like carriage, columns, arms, runways, plungers, etc. and may differ depending on the type of lift.

Note: WARRANTY CARD MUST BE COMPLETED AND RETURNED UPON INSTALLATION FOR VALIDATION or WARRANTY PERIOD WILL BEGIN FROM INVOICE DATE OF LIFT PURCHASE. WARRANTY MAY ALSO BE VALIDATED BY REGISTERING ONLINE @ challengerlifts.com/register.shtml

Description Model/Series Labor Functional Parts Structural parts Extended Warranty Available
CL10 CL10 1 Year 2 Years 5 Years Yes
10K 2-Post, 9K 2-Post LE10,  SA10,  CLFP9 1 Year 1 Year 5 Years No
12K, 15K, 18K 2-Post CL12, 15000, 18000 1 Year 2 Years 5 Years Yes
8K Inground EVW0820 1 Year 2 Years 2 years No
10K Ingrounds EV1020 1 Year 2 Years 5 Years Yes
12K, 15K Ingrounds EV1220, EV1520 1 Year 1 Year 5 Years Yes
14K 4-Post 4P14 1 Year 1 Year 5 Years No
15K 4-Post 4015 1 Year 2 Years 5 Years No
30K 4-Post Cable Drive 4030 1 Year 2 Years 5 Years No
30K, 40K, 60K Chain Drive 44030, 44040, 44060 1 Year 1 Year 1 Year No
Rolling Jacks RJ, SAJ 1 Year 1 Year 1 Year No
Mid and Short Rise MR-6, SRM-10 1 Year 1 Year 1 Year No
Scissors SX14, DX77 1 Year 1 Year 1 Year No
Mobiles CLHM 1 Year 1 Year 5 Years No
Accessories     90 days   No
Replacement Parts     90 days   No


Extended Warranty

An extended warranty is available for purchase for NEW CL/EV Series lifts. The Extended Warranty must be purchased within 30 days of lift invoice, and extends the Functional Parts coverage by an additional 3 years (5 Years total). Lift must be installed by and authorized Challenger installer. Extended warranty does not apply to accessories.
