Challenger Lifts CLFP9 Symmetric Low Ceiling Two Post Floorplate Lift

SKU:
CLFP9
Condition:
New
Capacity:
9,000 Lbs

Factory Shipped

  • Challenger Lifts THK
  • Challenger Lifts 10313 6" Stack Adapter Extension
  • Challenger Lifts 10315 Stack Adapter Kit For 10,000 And 12,000 Lb Lift

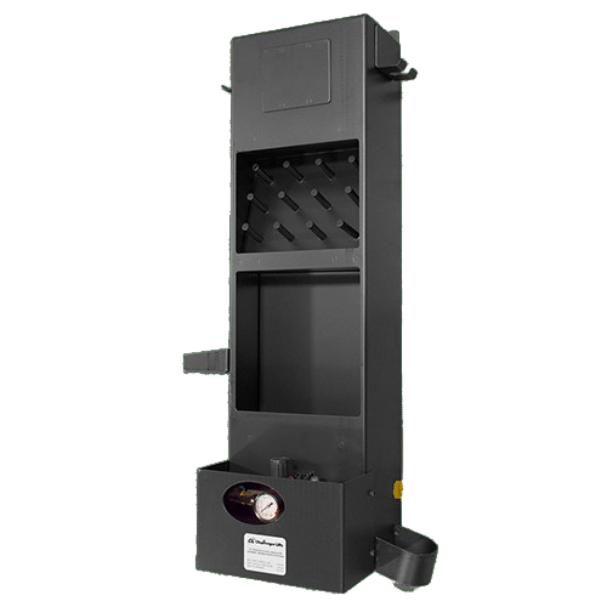

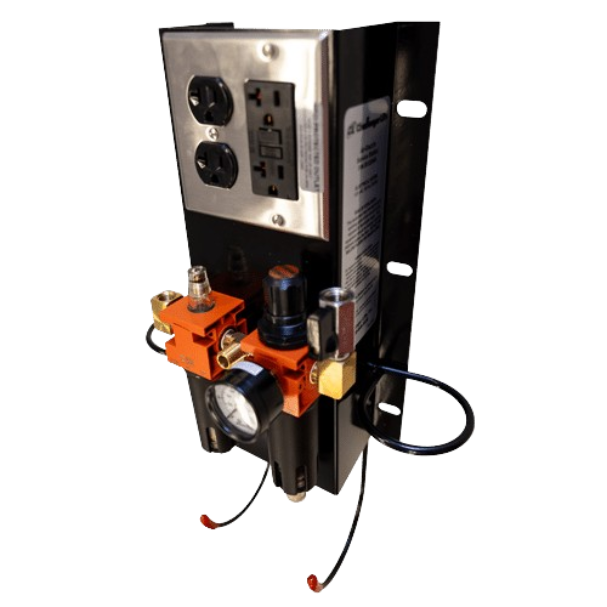

  • Challenger Lifts B10264A Air/Electric Workstation With Filter/Lubricat
Total Price:
$5,196.85 $3,584.05
(You save $1,612.80)
Free Shipping
Free Shipping

Factory Shipped

Challenger CLFP9 Two Post Floorplate Car Lift

The CLFP9 2 post car lift features a 10’ 7/8” overall column height, making it ideal for low ceiling applications. Standard front and rear 3-stage arms provide maximum arm sweep, arm retraction and reach. The CLFP9 2 post lift will accommodate a wide variety of vehicle lift points, including short and long wheelbase and wide body imports.

This floor plate car lift makes a great addition to the home enthusiast garage as well as professional vehicle service shops. The CLFP9 2 post car lift provides dependable long lasting durability with a smooth, reliable lift motion. Other 2 post lift features include double telescoping screw pads, durable powder coat finish, plated arm pins, and a Heavy-Duty chain and hydraulic lifting system with cable synchronization, just to name a few. Available in red and blue only.

Challenger CLFP9

Symmetric Low Ceiling 2-post floor plate lift w/ dual point mechanical lock release (10' 7/8" ht.), 3-stage front & rear arm design.

Features:

  • 10´ 7/8" overall column height allows lift to be placed in low ceiling shops.
  • Front and rear 3-stage arms provide excellent reach and retraction to lift a variety of vehicles.
  • Low profile drive-over floor plate makes vehicle positioning easy.
  • Dual point mechanical pull-lock cable release system allows technician to disengage column locks on each side.
  • Double Telescoping Screw Pads minimize the need for truck adapters by meeting a wider range of OEM recommended pick up points.
  • Fully gusseted base plate design reduces column deflection
  • Plated arm pins inhibit rust and provide long-lasting durability.
  • Heavy duty chain auto lift with cable equalization provides long lasting durability and a smooth reliable lift motion.

Specifications:

Model Number
CLFP9

Lift Capacity*

9,000 lbs. (4082kg)
A Rise Height1
78-1/8" (1984mm)
B Column Height
10' 7/8"
(3070mm)
C Overall Width
11' 5-1/2" (3493mm)
Drive-Thru Clearance
98-3/16" (2494mm)
E Front Arm Reach
24-1/2" / 44-1/2" (623mm / 1131mm)
F Rear Arm Reach
24-1/2" / 44-1/2" (623mm / 1131mm)
G Screw Pad Height2
Adj. 4" / 5-7/8" (102mm / 149mm)
H Inside of Columns
109" (2769mm)
Motor
2HP, Single Phase, 60Hz
Voltage
208v - 230v
Speed of Rise
60 seconds
Max. Load per Arm
2,250 lbs. (1020kg)
Ceiling Height Required
10' 1-7/8" (3096mm)
Shipping Weight
1925 lbs. (873 kg)

*Lift capacity ratings are based on loads equally distributed on all four arms.  1 Rise Height is measured with adjustable screw pads in highest position.  2 Specifications are listed without rubber pad, for measurements with rubber pad add 1/4" (6mm)
Optional frame engaging adapters (10314 or 10318) are REQUIRED when lifting vehicles with frame construction.

CLFP9 Two Post Lifts



 Accessories:

  10315adapter-2324-general-02897.23.205.149.jpg   10313-stacks-58787.1410927202.90.90.jpg    b10264a-92182.1410924091.90.90.jpg    thk-71530.1410921931.90.90.jpg   cl-a2006-3-54287.1410922136.90.90.jpg

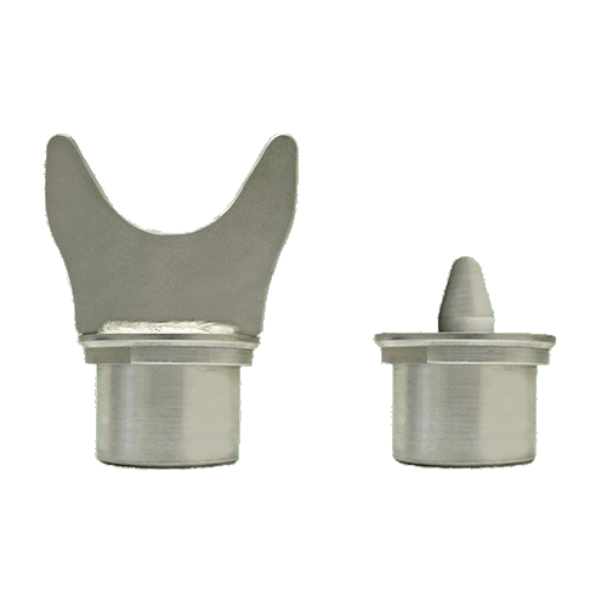

          Part# 10315            Part# 10313   Part# B10264      Part# THK          A2006-3 3´

*Shipping is FREE to direct points within the 48-contiguous states.

***It is the buyer's responsibility to unload the freight at their location.

****The Challenger Lifts CL10V3-3-DPC is an ALI Certified Lift. Click here to view its certification.

Challenger Lifts Warranty Agreement

Challenger Lifts, Inc. lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lift, Inc., www.challengerlifts.com.

This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a CLI authorized service representative.

This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of CLI.

The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.

Functional parts are any wear items, as defined from time to time by Challenger Lifts. Examples include power units, cylinders, sheaves, hoses, cables, controls, etc. and may differ depending on the model of lift.

Structural parts are items, as defined from time to time by Challenger Lifts, Inc. that are not Functional Parts and include items like carriage, columns, arms, runways, plungers, etc. and may differ depending on the type of lift.

Note: WARRANTY CARD MUST BE COMPLETED AND RETURNED UPON INSTALLATION FOR VALIDATION or WARRANTY PERIOD WILL BEGIN FROM INVOICE DATE OF LIFT PURCHASE. WARRANTY MAY ALSO BE VALIDATED BY REGISTERING ONLINE @ challengerlifts.com/register.shtml

Description Model/Series Labor Functional Parts Structural parts Extended Warranty Available
CL10 CL10 1 Year 2 Years 5 Years Yes
10K 2-Post, 9K 2-Post LE10,  SA10,  CLFP9 1 Year 1 Year 5 Years No
12K, 15K, 18K 2-Post CL12, 15000, 18000 1 Year 2 Years 5 Years Yes
8K Inground EVW0820 1 Year 2 Years 2 years No
10K Ingrounds EV1020 1 Year 2 Years 5 Years Yes
12K, 15K Ingrounds EV1220, EV1520 1 Year 1 Year 5 Years Yes
14K 4-Post 4P14 1 Year 1 Year 5 Years No
15K 4-Post 4015 1 Year 2 Years 5 Years No
30K 4-Post Cable Drive 4030 1 Year 2 Years 5 Years No
30K, 40K, 60K Chain Drive 44030, 44040, 44060 1 Year 1 Year 1 Year No
Rolling Jacks RJ, SAJ 1 Year 1 Year 1 Year No
Mid and Short Rise MR-6, SRM-10 1 Year 1 Year 1 Year No
Scissors SX14, DX77 1 Year 1 Year 1 Year No
Mobiles CLHM 1 Year 1 Year 5 Years No
Accessories     90 days   No
Replacement Parts     90 days   No


Extended Warranty

An extended warranty is available for purchase for NEW CL/EV Series lifts. The Extended Warranty must be purchased within 30 days of lift invoice, and extends the Functional Parts coverage by an additional 3 years (5 Years total). Lift must be installed by and authorized Challenger installer. Extended warranty does not apply to accessories.
