Bendpak HD-7PXW 7K Lbs Capacity 4-Post Lift (Super-Tall Rise)
7,000-lb. Capacity / Super-Tall Rise / Four-Post Lift / Vehicle Display Platform
The HD-7PXW is a literal giant. This four-post lift is also a magnificent display platform and will effortlessly lift up to 7,000 lbs. over 12 feet into the air! Specially made for dealers, it's perfect for stacking taller vehicles and getting them seen!
This lift has a 7,000-lb. lift capacity and 188” long runways to accommodate a variety of vehicle types and wheelbases.
It has all the same safety and convenience features as other BendPak four-post lifts. A one-touch pneumatic safety release instantly releases all locks simultaneously, and the lift's lone hydraulic cylinder is neatly tucked under the power-side runway. There's simply no better-looking and higher-reaching car lift on the market than the HD-7PXW.
Features
- 7,000-lb. maximum lifting capacity.
- Super tall rise of delivers 12-feet of lifting height.
- Electric / hydraulic power system.
- Single hydraulic cylinder mounted underneath runway.
- Internal anti-sway slider blocks in each column.
- Oversized self-lubricating cable rollers.
- Features heavy-duty 3/8” aircraft cable.
- Rugged 1.25” roller axles.
- Multi-position safety locks in each column.
- Adjustable lock ladders.
- Ramps feature non-skid surface.
- Push-button pneumatic safety release.
Specifications
Capacity | |
Lifting Capacity* | 7000 lbs. (3175 kg) |
*Max Capacity / Front Axle | 3500 lbs. (1588 kg) |
*Max Capacity / Rear Axle | 3500 lbs. (1588 kg) |

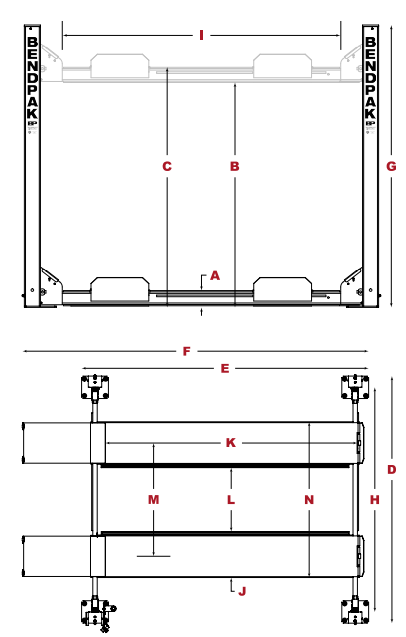

Rise | |
A - Min. Runway Height | 4,5" (114 mm) |
B - Max. Rise | 140" (3556 mm) |
C - Max. Lifting Height | 145" (3683 mm) |
Time to Full Rise | 60 seconds |
Outside Dimensions | |
D - Overall Width | 110,25" (2800 mm) |
E - Outside Length | 198" (5029 mm) |
F - Overall Length | 224,5" (5702 mm) |
G - Height of Columns | 158" (4013 mm) |
Inside Dimensions | |
H - Width Between Columns | 100" (2540 mm) |
I - Drive-Thru Clearance | 86,5" (2197 mm) |
Runways | |
J - Runway Width | 19" (483 mm) |
K - Length of Runways | 188" (4775 mm) |
L - Width Between Runways | 37,5" (953 mm) or 44,5" (1130 mm) |
M - Runway Centerline | 56,5" (1435 mm) or 63,5" (1613 mm) |
N - Outside Edge of Runways | 75,5" (1918 mm) or 82,5" (2096 mm) |
Minimum Wheelbase | |
Rated Capacity | 135" (3429 mm) |
75% Capacity | 115" (2921 mm) |
50% Capacity | 95" (2413 mm) |
25% Capacity | 80" (2032 mm) |
Locking | |
Locking Positions | 30 |
Lock Spacing | Every 4" (102 mm) |
Power Unit | |
Motor | 208-230 VAC / 50-60 Hz / 1Ph |
Noise | 45 dB |
Shipping | |
Weight | 2,180 lbs. (988.8 kg) |
Dimensions: | 192'' x 22'' x 35'' (4,876 mm x 558 mm x 889 mm) |
Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
