Bendpak HD-9SWX 9,000 Lbs Super-Wide 4-Post Lift

BendPak

SKU:
BP-5175024
Condition:
New
Availability:
Free Shipping is valid for commercial locations within the 48 Continental U.S. only. We will contact you if Tax and shipping surcharges apply.
Shipping:
Free Shipping
  • Bendpak RJ-45 Adapter Kit For RJ-45 Four-Post Bridge Jacks
  • Bendpak Plastic Drip Trays Sets Of Two
Total Price:
MSRP: $12,834.00
$10,695.00
(You save  $2,139.00 )
Adding to cart… The item has been added

jmc-shipping-button.pngBendPak HD-9SWX 9,000-lb. Capacity Super Wide 82" Rise 4 Post Lift


THD-9SWX is ideal for anyone who wants a little extra standing room under their lift. Plus, the runways are 24" longer than our standard-length HD-SW. Park up to four cars, trucks and SUVs, and enjoy servicing two raised vehicles in a single lift.

This super-wide, extended-length model is designed to transform your garage into a state-of-the-art parking facility. It turns that two-car space into a four-car trophy stand. The HD-9SWX is an extended length model with higher rise to provide exceptional clearance underneath. The extra dimensions are particularly useful for parking or servicing long-wheelbase vehicles.

The best thing about this car lift is how easy it is to use. Low-stance vehicles glide onto the runways without risking damage to the chassis. It’s a smart solution for family garages and professional spaces. Auto shops sometimes prefer large lifts like the HD-9SWX because their techs need equipment that allows them to work on virtually anything that rolls through their doors. The 9,000-lb. capacity of this lift (4,500 lbs. max per car, per side) covers sedans and sports coupes. If you do need to step up into the next category of lifting, BendPak has four-post lift options, from the 14,000-lb. capacity HDS-14 series to the 40,000-lb. capacity HDS-40.

Features

  • 9,000-lb. maximum lifting capacity
  • Freestanding design
  • Perfect for parking, storage and service
  • Double-wide configuration for quad-vehicle storage
  • Four runways
  • Super-tall rise
  • Extra-long ramp
  • Runways accommodate wide or narrow vehicles
  • Runways include rail-kit for optional accessories
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks and sheaves
  • Internal anti-sway slider blocks in each column
  • Oversized self-lubricating cable rollers
  • Oversized sheave diameter reduces cable fatigue
  • High-speed lifting
  • Features heavy-duty 3/8" aircraft cable
  • Rugged 1.25" roller axles
  • Multi-position safety locks in each column
  • Adjustable lock ladders
  • Runways feature non-skid surface
  • Push-button pneumatic safety release
  • Independent backup slack-cable safety latches
  • Inside runways adjust for different tread widths
  • Customizable power unit location
  • Removable approach ramps for additional drive-under clearance
  • Optional drive-thru ramps available
  • Optional drip trays available
  • Optional solid deck available to increase storage capacity
  • Optional 4,500-lb. air / hydraulic rolling jacks available

Specifications

Capacity
 Lifting Capacity*  9000 lbs. (4082 kg)
 *Max Capacity / Front Axle  4500 lbs. (2041 kg)
 *Max Capacity / Rear Axle  4500 lbs. (2041 kg)

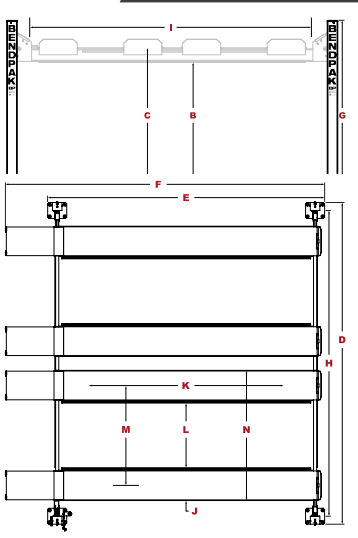

Rise
 A - Min. Runway Height:  7" (178 mm)
 B - Max. Rise:  82" (2083 mm)
 C - Max. Lifting Height:  89" (2261 mm)
 Time to Full Rise:  65 seconds
Outside Dimensions
 D - Overall Width:  202" (5131 mm)
 E - Outside Length:  198" (5029 mm)
 F - Overall Length:  224" (5690 mm)
 G - Height of Columns:  102" (2591 mm)
Inside Dimensions
 H - Width Between Columns:  192" (4877 mm)
 I - Drive-Thru Clearance:  178" (4521 mm)
Runways
 J - Runway Width:  19" (483 mm)
 K - Length of Runways:  188" (4775 mm)
 L - Width Between Runways:  37" (940 mm) or 42" (1067 mm)
 M - Runway Centerline:  56" (1422 mm) or 61" (1549 mm)
 N - Outside Edge of Runways:  75" (1905 mm) or 80" (2032 mm)
Minimum Wheelbase
 Rated Capacity:  135" (3429 mm)
 75% Capacity:  115" (2921 mm)
 50% Capacity:  95" (2413 mm)
 25% Capacity:  80" (2032 mm)
Locking
 Locking Positions:  16
 Lock Spacing:  Every 4" (102 mm)
Power Unit
 Motor:  220 VAC / 60 Hz / 1 Ph
 Noise:  45 dB
Shipping
 Weight:  2,966-lbs. (1345.4 kg)
 Dimensions:  214'' x 22'' x 51'' (5,435 mm x 558 mm x 1,282 mm)

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

HD-9SWX (5175024)

Downloads

Manual




**Bendpak charges taxes to California**
***It is the buyer's responsibility to unload the freight at their location.

Videos Hide Videos Show Videos
