AMGO Hydraulics BP-12 12000 Lbs Floorplate 2-Post Lift
- Brand:
- AMGO Hydraulics
- SKU:
- AH-BP-12
- Condition:
- New
Factory Shipped
Factory Shipped
AMGO BP-12 12,000 Lbs Floorplate 2-Post Lift
AMGO BP Series Base plate two post lifts are stronger and more convenient to operate than most all other lifts in the world. The rugged BP-12 can lift vehicles up to 12,000 lbs. and is designed with no overhead obstructions for low ceiling professional and home garages to increase headroom. AMGO two post lifts are manufactured according to high-quality standards, while using critical materials and parts choosing, with advanced features and innovative technology.
Features
-
12,000 lbs capacity, chain-driven 2 post lift with base plate heavy duty design
- Single-point safety release allows the operator to unlock the safety locks from both columns simultaneously. There is also a dual locking system for additional safety
- 4 three-stages arms suitable for more vehicles
- Automatic arm restraints keep the arms locked in their proper positions
- Width adjustment:width between columns 118 1/8″(3000mm)and 123 1/2″(3137mm)
- Self-lubricating UHMW Polyethylene sliders and bronze bushings
- Aircraft quality cable is used for synchronization
- Detachable foot guard and tool tray to allow for a clutter free work space
- Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two years on Electrical Components

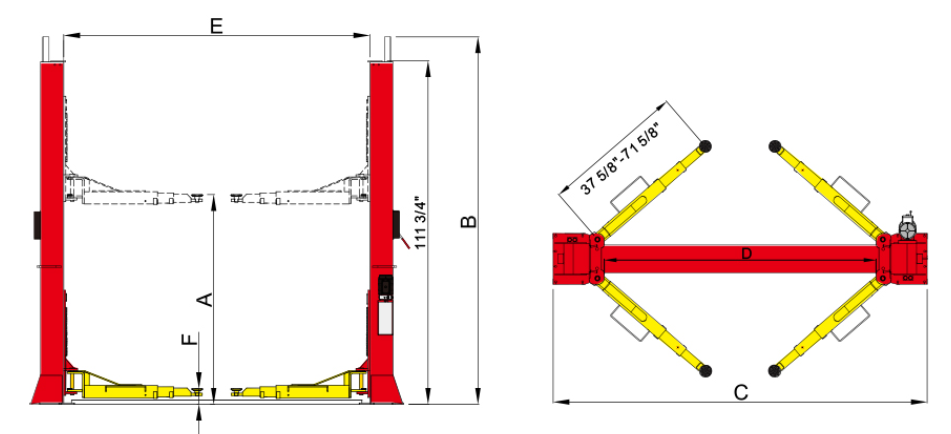

Specifications
| Model | BP-12 |
| Lifting Capacity | 12,000 lbs (5,443 kg) |
| Lifting Time | 65S |
| A:Lifting Height | 73 1/4″ ~ 82 1/4″ (1860~2089mm) |
| B:Overall Height | 122 1/2″ (3110mm) |
| C:Overall Width | 145 3/8″ / 150 3/4″ (3692 / 3829mm) |
| D:Drive-Thru Clearance | 104 1/2″/ 109 7/8″ (2653 / 2790mm) |
| E:Width Between Columns | 118 1/8″/ 123 1/2″ (3000 / 3137mm) |
| F:Minimum Pad Height | 4 3/4″” (120mm) |
| Motor | 2.0HP |
| Gross Weight | 2,150 lbs (975 kg) |
Warranty information.
AMGO offers one of the best product warranties in the industry from the original factory commercial invoice date in the industry as follows:
1.Steel structure components(including Columns,Carriage,,Lifting Arms, Top Beam, Floor Cover,Platform,Cross Beam,Car Drive-in Ramp, Scissor,baseframe etc.) warranty for five years.
2.Hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.)warranty for two years.
3.Other parts(no including consumption parts such as rubber pad),electrical components, power unit warranty for one year.
Warranty procedure:
In order to start a warranty claim, you need fill out completely (including date of purchase) the warranty card attached below, and then send it to technical.support@amgohyd.com. If this information is not provided, the factory will not support the claim.
Click here to download the warranty card
