BendPak MDS-6EXTF Open Center-FLUSH-MOUNT / EXTENDED 6,000 Lb. Cap. Mid-Rise Scissor Lift
The MDS-6EXTF extended-length, flush-mount, mid-rise lift is the ideal solution for quick-lube stations looking to install a car lift flush over their work pits. If your shop wants to be ready for longer-wheelbase vehicles and minimize the lift’s footprint, you can’t do better than the BendPak MDS-6EXTF.
Features
- Each lift platform features four solid steel-scissor frame support bars, making it one of the strongest mid-rise lifts in its class.
- Dual master hydraulic cylinder combines with dual equalizing cylinders to provide a safe and level 6,000 pound lifting capacity.
- Solid-steel safety lock bars engage automatically during descent.
- Convenient stainless-steel pneumatic cylinders simultaneously release safety locks during descent with a simple push of a button. (NOTE: Requires min. 50 PSI, 10 CFM air source at time of installation.)
- A push-button safety lock release system is operated away from the lift and allows operators to safely deactivate the locks without the need to push or pull cumbersome release bars or lock release handles.
- Hinge point features Zerk grease fitting to allow lubrication at critical wear areas.
- Comes standard with four durable cushioned-rubber contact blocks, permitting fast vehicle setup.
- Three locking positions allow technicians to work at different working heights to increase productivity and minimize fatigue.
- Powder coat finish provides a long lasting durable finish.
Specifications

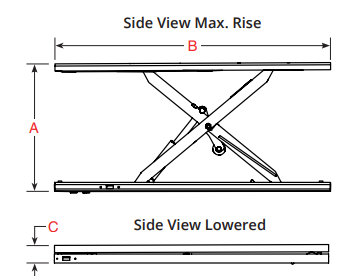

| Model | MDS-6EXTF | |
| Type | Flush-Mount | |
| Lifting capacity | 6,000 lbs. / 2,722 kg | |
| A | Lifting height (full rise - no blocks) | 36.75" / 933 mm |
| Lifting height (full rise) Med. lift blocks 1.5” (38 mm) | 38.25" / 972 mm | |
| Lifting height (full rise) Tall lift blocks 2.9” (75 mm) | 39.65" / 1,007 mm | |

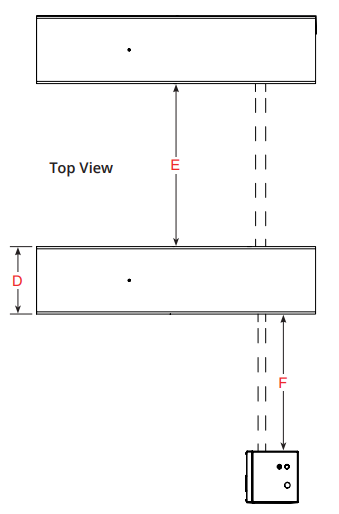

| B | Platform length | 78.75" / 2,000 mm |
| C | Total length | 78.75" / 2,000 mm (no ramps) |
| D | Lowered height | 5.25” / 133 mm (Top of Platform to be Flush with floor) |
| E | E Platform width | 19" / 484 mm |
| F | F Width between Platforms | 40 to 46" / 1,018 to 1,168 mm |
| G | G Ramp Length | N/A No ramps |
| H | H Ramp Extension Length | N/A No Extensions |
| I | I Max. Platform to Console | 40" / 1,024 mm |
| Lifting time | 35 seconds | |
| Hydraulic Pressure Developed at Max. Capacity | 1700 psi / 11.72 N/m2 | |
| Motor | 208-230 VAC at 60 Hz., 1 Ph |
*Specifications subject to change without notice
*Note: The MDS-6EXTF does not include Ramps or Covers.
