Bendpak PL-6KT 18,000 Lbs Triple-Wide Parking Lift

BendPak

SKU:
BP-5175154
Condition:
New
Availability:
Special price available for a limited time! Call 800-562-4791 for availability. Free Shipping is valid for commercial locations within the 48 Continental U.S. only.
Shipping:
Free Shipping
Total Price:
MSRP: $36,695.00
$34,845.00
(You save  $1,850.00 )
Adding to cart… The item has been added

jmc-shipping-button.pngBendpak PL-6KT 18,000-lb. Independent Platforms Triple Parking Lift

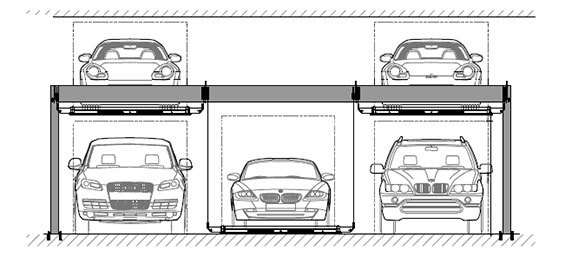

The PL-6KT triple-wide parking lift is one of the most efficient parking units ever designed. The key to its design is a streamlined, four-column structure that leaves all three lifting platforms free from surrounding posts, making it safer and easier to enter and exit parked vehicles.

This parking lift is equally useful in large residential garages and commercial spaces. Municipal parking lots and custom shops looking for extra parking don’t need to waste money buying multiple lifts that may or may not even fit in their space. A triple-wide lift is the most efficient way to turn three parking spots into six.

Features

  • 6,000-lb. capacity per deck (18,000 lbs. total).
  • Perfect for cars, light trucks, motorcycles and ATVs.
  • Rugged I-beam and C-channel construction.
  • Built-in wheel stops.
  • Wide base-plate for maximum stability.
  • Front and rear wheel chocks.
  • Superstructure features durable powder-coat finish.
  • Dual hydraulic cylinders with heavy-duty steel lifting cable.
  • Heavy-duty steel construction.
  • Reliable electric-hydraulic power system.
  • Full-width platform to keep bottom vehicles protected.
  • Simple controls.
  • Oversized sheave diameter reduces cable fatigue.
  • High-speed lifting.
  • Features heavy-duty 3/8" aircraft cable.
  • Rugged 1.25" roller axles.
  • Multi-position safety locks in each column.
  • Runways feature non-skid surface.
  • Push-button pneumatic safety release.
  • Independent backup slack-cable safety latches.
  • Customizable power unit location.

Specifications

 Model  PL-6KT
 # of Platforms  3
 Load capacity per Platform  6,000 lbs. / 2,722 kg
 a Total width  308" / 7,834 mm
 b Total length  236.5" / 6,008 mm
 c Post height  100.25" / 2,553 mm
 d Total height  123.75" / 3,117 mm
 e Min. runway height  8" / 206 mm
 f Maximum rise  95.25" / 2,420 mm
 g Width between Posts  283" / 7,197 mm
 h Drive-Thru Clearance  93" / 2,438 mm
 i Usable Platform width  82" / 2,086 mm
 j Platform length (with Approach ramp)  166" / 4,216 mm
 Safety Lock Positions  7
 Lifting time  ≈45 seconds
 Motor  220 VAC, 50/60 Hz, 1 Ph



 2024-04-18-10-35-38-pl-6k-series-double-and-triple-wide-parking-lifts-installation-and-operation-m.png   Bendpak PL-6KT (5175154) 6,000-lb. Capacity / Parking Lift / Triple / Independent Platforms / SPECIAL ORDER
