AMGO Hydraulics PRO-18A 18000 Lbs Alignment 4-Post Truck Lift

AMGO Hydraulics

Please contact us at 800-562-4791 for pricing and availability.
Calculated at Checkout
18,000 Lbs
Total Price:
MSRP: $11,370.00
(You save  $1,895.00 )
Adding to cart… The item has been added
Shipping Calculated at Checkout Factory Shipped

AMGO Hydraulics PRO-18A 18000 Lbs Alignment 4-Post Truck Lift

The PRO-18A, this is the lift you need if you want to have great features with a high capacity for alignment work performed on your vehicles.


• 18,000 lbs capacity
• Air-released safety lock for convenient operation and reliability
• Mechanical self-lock and cable-breaking protection
• Optional turnplate pockets to fit different wheel bases
• 1/2″ aircraft quality cable
• Skid proof diamond platform
• Hydraulic cylinders are designed and made to high quality standards
• Strict quality control of cylinders with flow restrictor for a stable and smooth operational speed

Optional Rolling Jacks:

More choices:

-Optional led lights: No. 40103
-Optional extension kits: No. 41801 and plus 41803
-Optional air line kits: No. 40102

• Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components


 Model  PRO-18A
 Style  Alignment
 Lifting Capacity  18,000 lbs (8,000kg)
 Lifting Time  92S

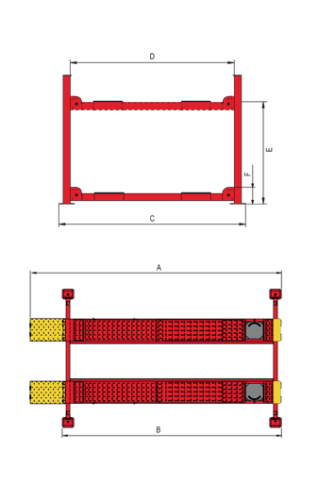

 A: Overall Length (Inc.Ramps)  292 3/4″ (7436mm)
 B: Overall Length (No.Ramps)  252 1/4″ (6408mm)
 C: Overall Width  137 1/8″ (3482mm)
 D: Width Between Columns  122 3/8″ (3108mm)
 E: Max. Lifting Height  75 3/8″ (1915mm)
 F: Overall Height  86″ (2185mm)
 G: Minimum Height  9 7/8″ (250mm)
 H: Max. Underneath Height  66 5/8″ (1692mm)
 I: Drive-Thru Clearance  108 1/4″ (2750mm)
 J: Width Between Runways  51 1/4″ (1302mm)
 K: Outside Edge of Runways  95 1/4″ (2418mm)
 L: Min. Four Wheel Align  99 5/8″ (2530mm)
 M: Max. Four Wheel Align  182 5/8″ (4640mm)
 N: Max. Two Wheel Align  209 1/8″ (5310mm)
 Gross Weight  4,429 lbs (2,009kg)
 Motor  2.0HP, 220V/60Hz Single Phase


Shipping Information




Warranty information.

AMGO offers one of the best product warranties in the industry from the original factory commercial invoice date in the industry as follows:
1.Steel structure components(including Columns,Carriage,,Lifting Arms, Top Beam, Floor Cover,Platform,Cross Beam,Car Drive-in Ramp, Scissor,baseframe etc.) warranty for five years.
2.Hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.)warranty for two years.
3.Other parts(no including consumption parts such as rubber pad),electrical components, power unit warranty for one year.

Warranty procedure:

In order to start a warranty claim, you need fill out completely (including date of purchase) the warranty card attached below, and then send it to If this information is not provided, the factory will not support the claim.

Click here to download the warranty card
