jmc-shipping-button.pngBendPak XPR-10S-LP 10,000 Lb. Capacity Two Post Lift - Symmetric Clearfloor

10,000‐lb. Capacity / Symmetric Clearfloor / Adjustable Width / Screw Pads / LOW PROFILE ARMS

The XPR-10S two-post lift offers exceptional direct-drive lifting performance. This industrial-strength car lift guarantees cutting-edge technology, top of the line materials, a design that’s ahead of its time and a 10,000-lb. lifting capacity. All height/width variations fit in shops with ceilings higher than 12’, and none of them will crowd your floor while you work beneath a vehicle. Every XPR-10S two-post lift features our telescoping screw pad assembly kit.

Every BendPak lift offers an abundant roster of options and accessories that allow you to fully tailor the lift to your unique circumstance. In addition to these features, you'll be impressed with the long list of standard features and capabilities packed into the structure, parts and components. Our XPR-10S symmetric two-post lift features an adjustable top beam to accommodate wide or narrow installation setups. The XPR-10 two-post lift features low-pressure HVLP direct-drive cylinders, eliminating the need for lifting chains or screw mechanisms most commonly found on other lift designs. Dual HVLP low-pressure cylinders minimize leakage and offer better reliability, smoother operation and fewer maintenance costs throughout the life of your lift. High volume and low pressure equates to less workload placed on the entire hydraulic system.

The XPR-10S features double-telescoping screw pads with gouge and tear-resistant polyurethane pads to help increase workplace safety and reduce operating costs.

A set of our 63 mm stacking adapters is included with the purchase of a lift.

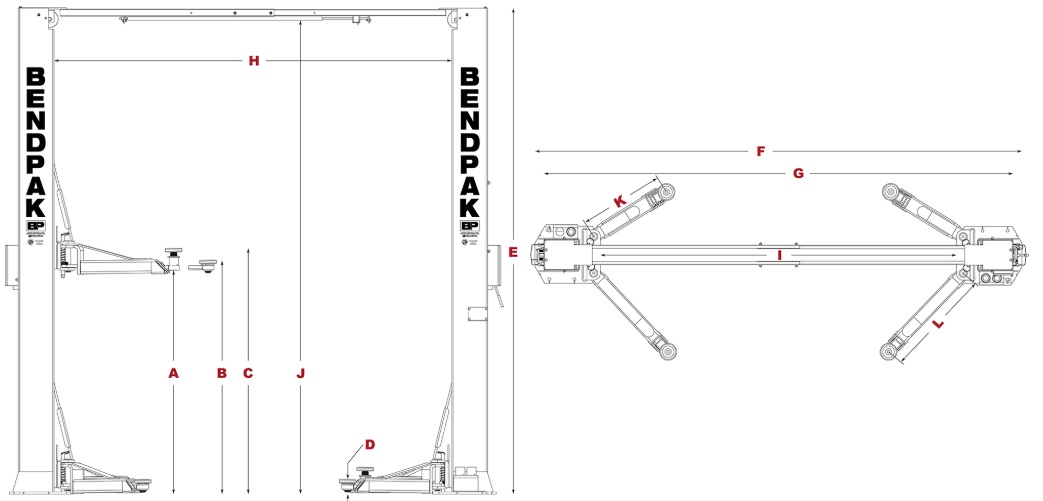

 Bendpak XPR-10 Floorplan

Features

  • 10,000 lb. lifting capacity
  • Expandable top beam accommodates wide or narrow drive-thru configuration
  • Double telescoping screw pads offer increased versatility
  • Padded overhead safety shutoff bar
  • Telescoping arm design for more versatile arm positioning
  • Single piece columns
  • Single point safety release
  • Drop-end arms provide a lower pad height
  • Dual hydraulic direct drive cylinders
  • Oversized 53" tall carriage for superior strength and durability
  • Electric / hydraulic power system
  • Large, 17" x 19" A36 steel base plate
  • Self-lubricating dura glide UHMW polyethylene bearing system
  • Safety locks in each column spaced every 3"
  • Plated arm restraints and arm pins for rust prevention
  • Heavy-duty 1/2" aircraft quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue
  • 4?piece 63 mm stackable adapter set comes standard
  • Triple telescoping front arms
  • ETL Approved

Specifications

Capacity
 Lifting Capacity*  10.000 lbs. (4536 kg)
 *Max Capacity / Front Axle  5000 lbs. (2268 kg)
 *Max Capacity / Rear Axle  5000 lbs. (2268 kg)
Rise
 A - Rise:  69" (1753 mm)
 B - Rise + Pad Only:  75" (1905 mm)
 C - Rise + Pad + 63 mm Adapter:  77,5" (1969 mm)
 D - Min. Height + Pad:  4" (102 mm)
 Time to Full Rise:  45
Outside Dimensions
 E - Height Overall:  145" (3683 mm)
 F - Width Overall:  132" (3353 mm) or 145" (3683 mm)
 G - Outside Columns:  126,75" (3219 mm) or 139,75" (3550 mm)
Inside Dimensions
 H - Inside Columns:  105,5" (2680 mm) or 118,5" (3010 mm)
 I - Drive-Thru Clearance:  93" (2362 mm) or 106" (2692 mm)
 J - Floor To Overhead Switch:  141" (3581 mm)
Arms & Pads
 K - Front Arm Reach: (MIN)  27,5" (699 mm)
 K - Front Arm Reach: (MAX)  51,5" (1308 mm)
 L - Rear Arm Reach: (MIN)  34" (864 mm)
 L - Rear Arm Reach: (MAX)  54,5" (1384 mm)
 Screw Pad Adjustment:  2" (51 mm)
 Max Load Per Arm  2500 lbs. (1134 kg)
Power Unit
 Motor:  220 VAC / 60 Hz / 1 Ph
 Noise:  45 db
Shipping
 Weight:  1,744-lbs. (791 kg)
 Dimensions:  150'' x 24'' x 39'' (3810 mm x 609 mm x
 990 mm)



Bendpak XPR-10s Specs

Optional Telescoping Low-Pro arms

The safe and rugged XPR-10-LP two-post lift features our exclusive Low-Pro arms that accommodate lowered sports cars and those vehicles with exclusive lift points located on the extreme outer edges of the chassis.

Note: The Low-Pro Arms is NOT True Symmetric  (Click here to see info on the BendPak XPR-10S-LP Low Profile Two Post Lift)

Bendpak Low Profile Arms



Downloads

Manual





**Bendpak charges taxes to California**
***It is the buyer's responsibility to unload the freight at their location.
