BendPak SP-7XEF 7,000 Lbs Flush Mount Scissor Lift
Introducing the SP-7XE Series Lift, a comprehensive system designed to elevate your automotive maintenance experience. Engineered with precision components and innovative features, this series is geared towards efficiency, safety, and adaptability.
Features
- 7,000-lb. lifting capacity.
- Pneumatic safety locks.
- Hardened pivot pins with "Zerk" fittings.
- Open-center design.
- Ergonomic controls.
- Dual-cylinder hydraulic design provides extra power.
- Low-profile.
Specifications

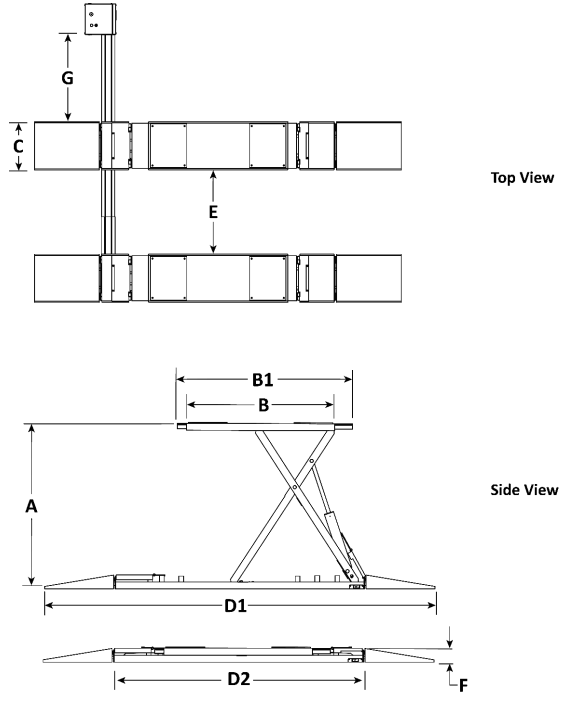

| Model | SP-7XEF | |
| Mounting Style | Flush mount | |
| Lifting capacity | 7,000 lbs. (3,175 kg) | |
| A | Maximum height raised (no blocks) | 70.5 in. (1,790 mm) |
| B | Individual platform length | 62.5 in. (1,590 mm) |
| B1 | Extended platform length | 74 in. (1,880 mm) |
| C | Individual platform width | 21.75 in. (550 mm) |
| D | Total length | 106 in. (2,692 mm) (no drive-up ramps) |
| E | Distance between platforms | 38 in. (968 mm) |
| F | Lowered height | N/A |
| G | Max distance to Console | Up to 40.25 in. (1,024 mm) |
| Safety Lock Positions | 8 | |
| Lifting time | ≈45 seconds | |
| Air Pressure Requirement | 30 psi (3 cfm), regulated to a maximum 125 ps | |
| Power Requirement | 208-240 VAC, 50/60 Hz, 1 Ph., 3 HP, 18 Amps | |
| Hydraulic Pressure at Max. Load | 3,060 psi |
*Specifications subject to change without notice
The SP-7XEF does not have ramps or Hose Covers.
