Bendpak HD-9EWT 9,000-lb. Capacity Extra-Wide 4 Post Lift

Built for garages with plenty of space, the BendPak HD-9EWT is perfect for high ceilings and high-rise vehicles. Unlike the narrower HD-9ST four-post lift, the HD-9EWT comfortably accommodates wide-body trucks and SUVs, avoiding concerns about mirror and door scratches. With a substantial 82” rise from the runways, it lifts heavy vehicles higher, providing plenty of room for taller techs to work beneath. Plus, it offers ample space for high-clearance trucks and SUVs, ensuring compatibility with taller vehicles.

Features

  • 9,000-lb. maximum lifting capacity.
  • Freestanding design.
  • High-rise.
  • Better suited for wide cars and off-road vehicles.
  • Perfect for parking, storage, and service.
  • Runways accommodate narrow and standard vehicles.
  • Runways include rail-kit for optional accessories.
  • Electric-hydraulic power system.
  • Single hydraulic cylinder mounted underneath runway.
  • Fully enclosed lifting cables, safety locks, and sheaves.
  • Internal anti-sway slider blocks in each column.
  • Oversized self-lubricating cable rollers.
  • Multi-position safety locks in each column.
  • Adjustable safety locks in each column.
  • Adjustable lock ladders.
  • Runways feature a durable matte finish.
  • Push-button pneumatic safety release.
  • Independent backup slack-cable safety latches.
  • Customizable power unit location.
  • Removable approach ramps for additional drive-under clearance.

Specifications

 Lifting Capacity  9,000 lbs. / 4,082 kg
 Max Capacity at Front Axle  4,500 lbs. / 2,041 kg

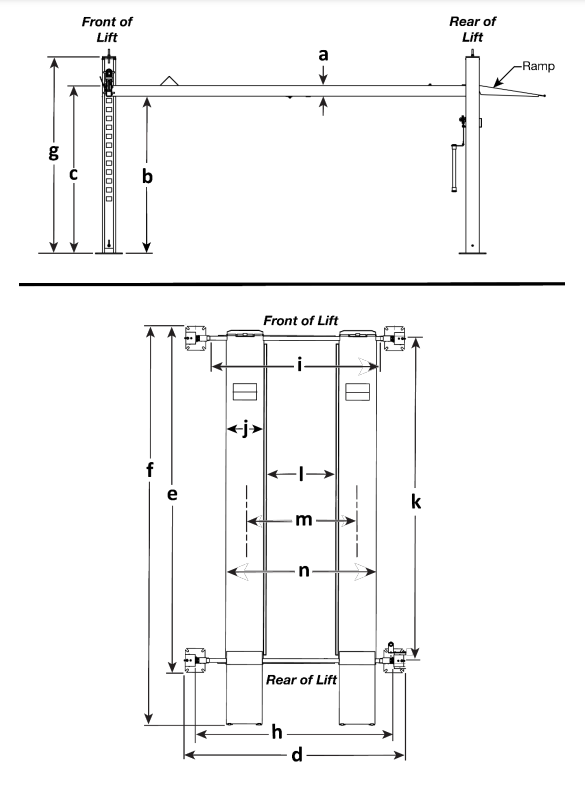

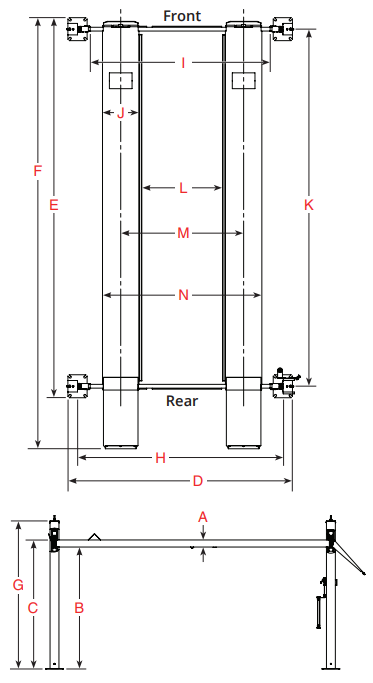

 A. Min. Runway Height  4.75 in. / 121 mm
 B. Maximum Rise  82.165 in. / 2,087 mm
 C. Maximum Lifting Height  87 in. / 2,208 mm
 D. Overall Width ± .125 in. / 3 mm  117 in. / 2,970 mm
 E. Outside Length  198 in. / 5,028 mm
 F. Overall Length  224.50 in. / 5,703 mm
 G. Height of Post  100 in. / 2,537 mm
 H. Distance Between Posts  107 in. / 2,716mm
 I.  Drive-thru Clearance  93.25 in. / 2,371 mm
 J. Runway Width  19 in. / 482 mm
 K. Runway Length  182.25 in. / 4,629 mm
 L. Width Between Runways  35.75 in. – 42.0 in. / 910 MIN – 1,068 mm MAX
 M. Runway Centerline  57.75 in. – 64.00 in. / 1,468 – 1,626 mm
 N. Outside Edge of Runways  76.75 in.- 83 in.
    / 1,950 – 2,108 mm
 Max. Load Operating Pressure  135 in. / 3,429 mm
 Min. Wheelbase @ Rated Capacity  115 in. / 2,921 mm
 Min. Wheelbase @ 75 Capacity  95 in. / 2,413 mm
 Min. Wheelbase @ 25 Capacity  80 in. / 2,032 mm
 Locking Positions  17 spaced every 4 in. / 102 mm
 Motor   220 VAC, 60 Hz, 1 Ph (special voltages available upon request)
