Bendpak HD-9AE 9,000-lb. Capacity Alignment Car Lift
The HD-9AE alignment lift features adjustable multi-position leveling, integrated front radius plates and rear slip plates. This makes it compatible with all leading alignment instrumentation, including 3D and camera wheel alignment systems. Multi-caster slip plates in the back and radius plates upfront allow for extremely precise, free-floating alignment. Wheel service is where many shops make the big bucks, so we’re conscious of the fact that these lifts need to be dependable and efficient to keep you satisfied.
Features
- 9,000-lb. maximum lifting capacity.
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493.
- Multi-caster slip plates.
- Dual radius plate positions.
- Heavy-duty stainless steel lifting cables.
- Dual-hub cable sheaves.
- Grease nipples on every sheave and sheave axle.
- Single hydraulic cylinder.
- Integrated hydraulic flow restrictor.
- Durable powder-coat finish.
- Spring-loaded safety locks.
- Simple push-button lock release.
- Aircraft-quality stainless steel and aluminum pneumatic cylinders.
- Secondary lock system.
- Fully enclosed cables, airlines, safety latches and sheaves.
- Multiple adjustable height locking positions.
- Maintenance-free power system.
- Easy-to-reach operator controls.

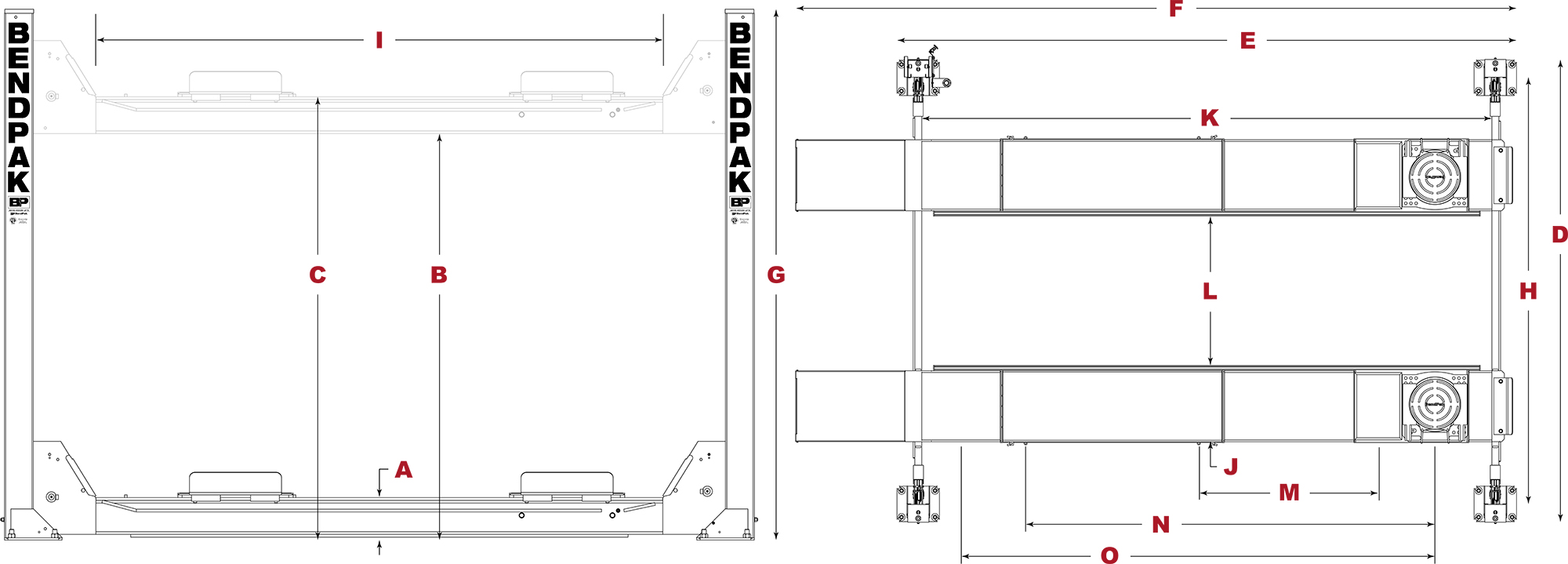

Specifications
| Capacity | |
| Lifting Capacity* | 9000 lbs. (4082 kg) |
| *Max Capacity / Front Axle | 4500 lbs. (2041 kg) |
| *Max Capacity / Rear Axle | 4500 lbs. (2041 kg) |
| Rise | |
| A - Min. Runway Height | 6,5" (165 mm) |
| B - Max. Rise | 70" (1778 mm) |
| C - Max. Lifting Height | 76,5" (1943 mm) |
| Time to Full Rise | 60 seconds |
| Outside Dimensions | |
| D - Overall Width | 127" (3226 mm) |
| E - Outside Length | 198" (5029 mm) |
| F - Overall Length | 224" (5690 mm) |
| G - Height of Columns | 88" (2235 mm) |
| Inside Dimensions | |
| H - Width Between Columns | 117" (2972 mm) |
| I - Drive-Thru Clearance | 103,5" (2629 mm) |
| Runways | |
| J - Runway Width | 19" (483 mm) |
| K - Length of Runways | 188" (4775 mm) |
| L - Width Between Runways | 40" (1016 mm) |
| Alignment | |
| M - Min. 4-Wheel Alignment | 71" (1803 mm) |
| N - Max. 4-Wheel Alignment | 145" (3683 mm) |
| O - Max. 2-Wheel Alignment | 160" (4064 mm) |
| Minimum Wheelbase | |
| Rated Capacity | 135" (3429 mm) |
| 75% Capacity | 115" (2921 mm) |
| 50% Capacity | 95" (2413 mm) |
| 25% Capacity | 80" (2032 mm) |
| Locking | |
| Locking Positions | 12 |
| Lock Spacing | 4 |
| Power Unit | |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Noise | 45 dB |
| Shipping | |
| Weight | 2,270-lbs. (1,029 kg) |
| Dimensions | 190'' x 22'' x 42'' (4,826 mm x 558 mm x 1,066 mm) |
Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to function. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
