APEX AL9LC Two Post Car Lift 9,000 Lbs Capacity Floorplate

APEX AL9LC Two Post Car Lift 9,000 Lbs Capacity Floorplate

The APEX AL9LC is a 9,000-lb floorplate two-post lift engineered for shops and serious garages that need professional lifting capability in low-ceiling environments. Featuring dual symmetric and asymmetric arm configurations, long-reach telescoping arms, and a rugged chain-over lifting system, the AL9LC delivers stable, confident performance for a wide range of vehicles. Previously sold under the GrandPrix brand, the AL9LC now carries the APEX name while retaining the same proven design, performance, and BendPak-backed support.

Features

• 9,000-lb. lifting capacity.
• Symmetric and asymmetric arm design for enhanced versatility.
• Triple-telescoping front arms & dual-stage extended rear arms.
• Heavy-duty, high-strength leaf chain engineered for reliable lifting power and durability.
• Heavy-duty 6” x 6” tubular steel carriage for maximum strength.
• Electric-hydraulic power system for effortless operation.
• Oversized 20.5" x 15.5" base plate for increased stability.
• Self-lubricating UHMW polyethylene guide blocks for long-lasting durability.
• Safety locks in each column spaced every 3 inches.
• Automatic arm restraints for enhanced safety.
• Heavy-duty 1/2" aircraft-quality equalizer cables.
• Oversized cable sheaves to reduce cable fatigue.
• Double-telescoping screw pads feature tear-resistant polyurethane for long-lasting durability.
• Full size rubber carriage guard reduces door dings.
• 4-piece 63 mm stackable adapter set included.
• 10-piece concrete wedge anchors included.

Specifications

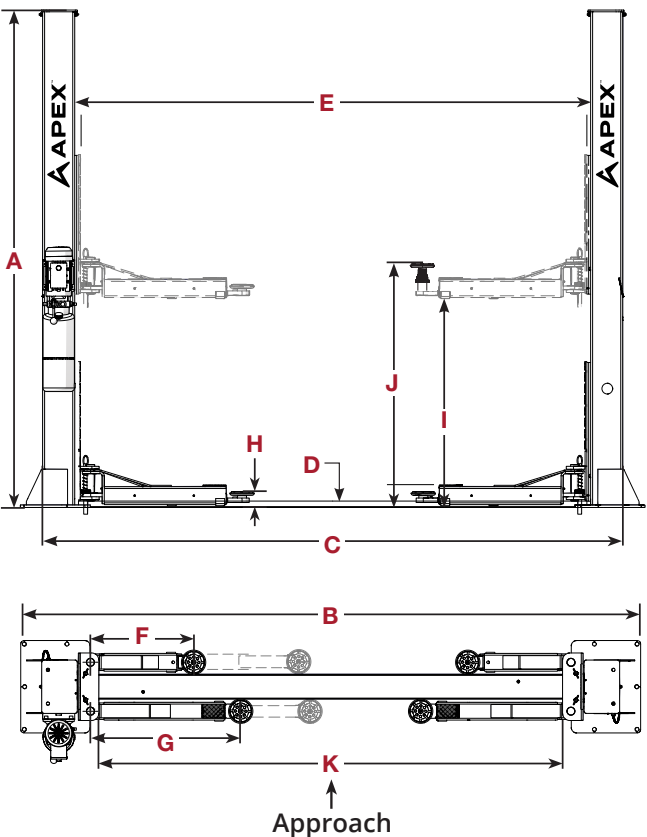

Model  AL9LC  Lifting Capacity  9,000 lbs. (4,082 kg)  Max. Capacity / Front Axle  4,500 lbs. (2,045 kg)  Max. Capacity / Rear Axle  4,500 lbs. (2,045 kg) A  Height Overall (*)  109.5" (2,781 mm) B  Width Overall (at Baseplate)  137.25" (3,486 mm) C  Width Outside of Columns  127.5" (3,238 mm) D  Floor To Driveover Height  1.25" (30 mm) E  Width Inside Columns  113.5" (2,880 mm) F  Front Arm Reach (Min.)  22.5" (571 mm) F  Front Arm Reach (Max.)  43.25" (1,099 mm) G  Rear Arm Reach (Min.)  33.5" (845 mm) G  Rear Arm Reach (Max.)  53.25" (1,353 mm) H  Min. Pad Height  3.9" (100 mm) I  Rise  70" (1,778 mm) J  Max. Lift H. (Pad + 63mm Adapt.)  76.5"-78.5" (1,943-1,994 mm) K  Drive-Thru Clearance  103" (2,618 mm)    Screw Pad Adjustment  2" (51 mm)  Motor (**)  220 VAC/60Hz/1 Ph  Time of Full Rise  65 seconds  Max. Load Per Arm  2,250 lbs. (1,023 kg)  Shipping Weight  1,385 lbs. (630 kg)

* To top of cylinder when lift is raised to max height.
** Special voltages available upon request.
The design, material and specifications are subject to change without notice.
