APEX AL10C Two Post Car Lift 10,000 Lbs Capacity Clearfloor

APEX AL10C Two Post Car Lift 10,000 Lbs Capacity Clearfloor

The APEX AL10C is a 10,000-lb clearfloor two-post lift engineered for shops that demand unrestricted under-vehicle access, heavy-duty strength, and long-term reliability. Featuring a direct-drive hydraulic lifting system, rugged overhead box-beam construction, and advanced safety systems, the AL10C delivers smooth, consistent lifting performance for a wide range of vehicles. Previously sold under the GrandPrix brand, the AL10C now carries the APEX name while retaining the same proven design, performance, and BendPak-backed support.

Features

• 10,000-lb. lifting capacity.
• Rugged box-beam overhead construction for added stability.
• Padded overhead safety shutoff bar.
• Symmetric and asymmetric arm design for enhanced versatility.
• Triple-telescoping front arms & dual-stage extended rear arms.
• Dual direct-drive low-pressure hydraulic cylinders.
• Heavy-duty 6” x 6” tubular steel carriage for maximum strength.
• Electric-hydraulic power system for effortless operation.
• Oversized 20.5" x 15.5" base plate for increased stability.
• Self-lubricating UHMW polyethylene guide blocks for long-lasting durability.
• Safety locks in each column spaced every 3 inches.
• Automatic arm restraints for enhanced safety.
• Heavy-duty 3/8" aircraft-quality equalizer cables.
• Oversized cable sheaves to reduce cable fatigue.
• Double-telescoping screw pads feature tear- resistant polyurethane for long-lasting durability.
• Full size rubber carriage guard reduces door dings.
• 4-piece 63mm stackable adapter set included.
• 10-piece concrete wedge anchors included.

Specifications

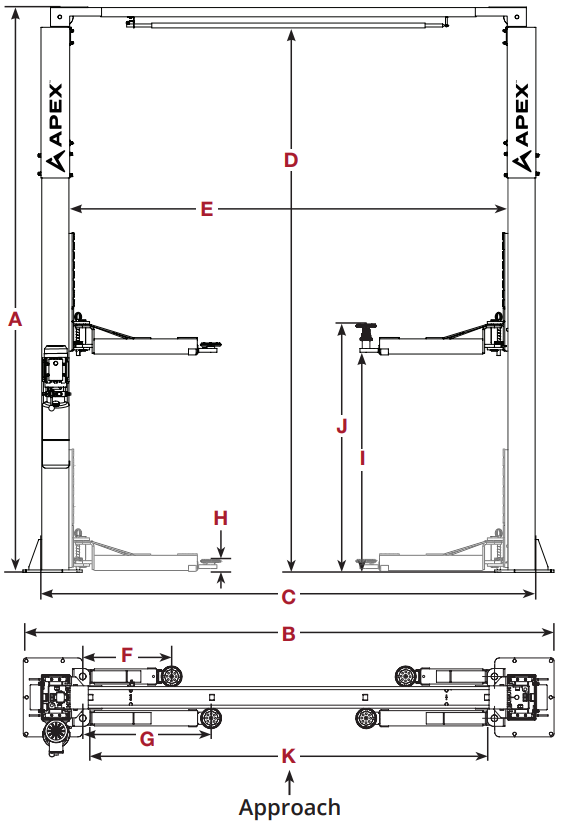

MODEL  AL10C  Lifting Capacity  10,000 lbs. (4,536 kg)  Max. Capacity / Front Axle  5,000 lbs. (2,268 kg)  Max. Capacity / Rear Axle  5,000 lbs. (2,268 kg) A  Height Overall (*)  148" (3,759 mm) B  Width Overall (at Baseplate)  137.5" (3,492 mm) C  Width Outside of Columns  128.5" (3,264 mm) D  Floor To Overhead Switch Bar  142.5" (3,619 mm) E  Width Inside Columns  114.5" (2,908 mm) F  Front Arm Reach (Min.)  22.5" (571 mm) F  Front Arm Reach (Max.)  43.25" (1,099 mm) G  Rear Arm Reach (Min.)  33.5" (845 mm) G  Rear Arm Reach (Max.)  53.25" (1,353 mm) H  Min. Pad Height  3.9" (100 mm) I  Rise  70" (1,778 mm) J  Max. Lift H. (Pad + 63mm Adapt.)  76.5"-78.5" (1,943-1,994mm) K  Drive-Thru Clearance  103" (2,618 mm)    Screw Pad Adjustment  2" (51 mm)  Motor (**)  220 VAC/60Hz/1 Ph  Time of Full Rise  65 seconds  Max. Load Per Arm  2,500 lbs. (1,134 kg)  Shipping Weight  1,545 lbs. (703 kg)

* To top of cylinder when lift is raised to max height.
** Special voltages available upon request.
The design, material and specifications are subject to change without notice.
