Ranger RML-1500Xl Super-Stretch Motorcycle-Atv Lift
Large Platform to Handle Virtually Any Motorcycle or ATV
The RML-1500XL from Ranger can easily handle up to 1,500 lbs. It comes equipped with an impressively large platform that can handle almost any motorcycle or ATV in its weight class.
Features
- A combination of power, solid construction, and user-friendly features makes the Ranger RML-1500XL the best motorcycle lift money can buy.
- With little effort, you can easily position, secure and raise motorcycles, bobbers, stretched choppers, trikes and other wheeled and recreational vehicles with ease.
- Features 12-gauge welded-steel construction, a non-skid diamond-plate platform surface and full travel automatic safety locks that allow various working heights.
- Side decks can be easily removed to provide a more compact work area for closer access to bikes when performing maintenance work or cleaning detail.
- A humongous 1,500-lb. lifting capacity handles just about anything that rolls.
- Safe and reliable means it’s been lifecycle tested beyond industry standards.
- Retractable, built-in, full-swivel casters provide stow-and-go capability even when loaded.
- Precision ball bearings improve rollability and are maintenance free.
- A gentle slope, textured diamond-plate approach ramps, and a secondary cheater ramp means even ground huggers can be loaded effortlessly.
- The RML-1500XL gets its power from a potent commercial-grade hydraulic power system that produces big lifting muscle right off the ground.
- A dual-function power unit provides either air or hydraulic pump operation.
- User-friendly controls increase productivity, reduce injuries, save money, and improve job satisfaction.
- A wide base frame combined with full perimeter tie-down rings provides a stable work environment ensuring bikes and choppers remain upright; tip-over concerns remain a thing of the past.
- Chrome alloy hydraulic cylinder provides smooth, controlled operation to keep things nice and civilized, and an extended-stroke ram means the RML-1500XL stands tall for improved ergonomics.
- A rigid tubular-steel wheel vise provides better stability and features a hardened steel crank and ergonomic handle for fast and easy set-up. Durable non-slip rubber contact plates help protect expensive wheels.
- A removable rear deck provides drop-down clearance and accessibility for wheel and suspension work.
- Rear vertical support poles provide a secure and stable support for hoist straps, as well as tie-downs for elevated bike testing or other floating required services.

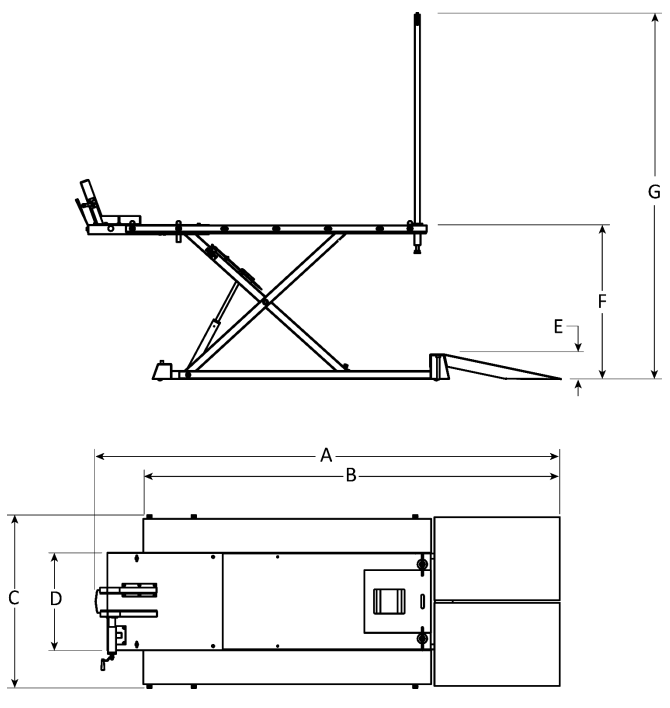

Specifications
| Lifting Capacity | 1,500 lbs. (680 kg) |
| Power Supply | Air / Hydraulic |
| Main Platform Length | 79.5" (2,019 mm) |
| Main Platform Length w/ Extension | 99.75" (2,534 mm) |
| Main Platform Width | 29.5" (749 mm) |
| Overall Width with Side Decks | 51" (1,295 mm) |
| Overall Length w/ Extension & Ramp | 134.75" (3,422 mm) |
| Max Lifting Height | 45" (1,143 mm) |
| Lowered Height | 7.75" (197 mm) |
| Platform Height - 1st Lock Position | 24" (610 mm) |
| Platform Height - 2nd Lock Position | 28.75" (730 mm) |
| Platform Height - 3rd Lock Position | 32.5" (825 mm) |
| Platform Height - 4th Lock Position | 36" (902 mm) |
| Platform Height - 5th Lock Position | 38.5" (978 mm) |
| Platform Height - 6th Lock Position | 41" (1,041 mm) |
| Air Supply | 90 to 160 psi |
| Shipping Weight | 808 lbs. (367 kg) |
| Shipping Dimensions | 46'' x 91'' x 16'' (1,168 mm x 2,311 mm x 406 mm) |
