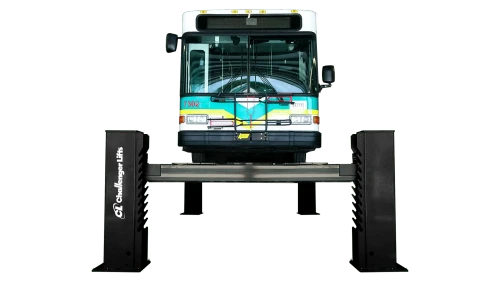

Challenger Lifts 44060X 60,000 Lbs XL Extended "Chain Driven" Four Post Car Lift
We designed our 40,000 lb. to 60,000 lb. lifts as an economic high capacity lifting solution in a traditional 4-post design.
Features
- 40,000 - 60,000 lb. lifting capacity for heavy commercial truck and transit vehicles
- Heavy duty, high tensile strength leaf chain and sealed roller bearings for maximum reliability
- Variable-synchro power system with dual hydraulic lift cylinders provide the ability to variably or simultaneously raise the front or rear lift suspension, providing a stable platform when lifting vehicles with heavier front or rear axles
- Velocity fused redundant hydraulic safety system
- Single point air actuated lock release system allows technician to disengage all column locks simultaneously
- Diamond plate anti-skid runways and heavy duty fixed approach ramps for positive vehicle traction and long lasting durability
- Adjustable runways accommodate a variety of tread and axle widths
- Built-in runway rail system for optional convenience accessories like rolling jacks and sliding oil drain pan
- 10 level twin ladder lock positions provide a comfortable working height for a variety of service work on a variety of vehicles
- Independent control console provides safe and convenient access to the lifts’ power controls - features variable-synchro power system to raise and lower the front or rear suspension either simultaneously or independently, dual pressure gauges and single point air lock release button
- Anti-skid diamond plate ramps are bolted down for safe and easy drive-on
Specifications
| Model Number | 44060X |
| Lift Capacity | 60,000 lb. |
| A Length Overall | 46’ |
| B Width Overall | 17’ 1¼” |
| C Inside Columns | 144” |
| D Between Columns | 410” |
| E Height Overall | 92” |
| F Height of Runways | 14” |
| G Width of Runways | 32” |
| H Width Between Runways | 36” - 58” |
| I Max Wheelbase | 430” |
| J Rise Height | 73” |
| Min - Max 4 Wheel Align | N/A |
| Max 2 Wheel Alignment | N/A |
| Motor | 15HP |
| Voltage | 230 - 460v Three Phase |
| Speed of Rise | 75 sec. |
| Amps | 30 |
Additional Parts and Accessories *Sold Separately
| Part Number | Description |
| SAJ25 | Air/Hydraulic operated rolling jack, 25,000 lb. capacity, adj. width 45” - 55” |
| SAJ35 | Air/ Hydraulic operated rolling jack, 35,000 lb. capacity, adj. width 45” - 55” |
| 44RK40 | Fixed Ramp kit, 96” long for drive thru operation |
| 10267 | Oil drain pan kit, adj. width, 32 gallon |
Downloads
Other Models
| Model Number | 44040 | 44040E | 44040X | 44050 | 44050E | 44050X | 44060 | 44060E | 44060X |
| Lift Capacity | 40,000 lb. | 40,000 lb. | 40,000 lb. | 50,000 lb. | 50,000 lb. | 50,000 lb. | 60,000 lb. | 60,000 lb. | 60,000 lb. |
| A Length Overall | 36’ | 41’ | 46’ | 36’ | 41’ | 46’ | 36’ | 41’ | 46’ |
| B Width Overall | 17’ 1¼” | 17’ 1¼” | 17’ 1¼” | 17’ 1¼” | 17’ 1¼” | 17’ 1¼” | 17’ 1¼” | 17’ 1¼” | 17’ 1¼” |
| C Inside Columns | 144” | 144” | 144” | 144” | 144” | 144” | 144” | 144” | 144” |
| D Between Columns | 290” | 350” | 410” | 290” | 350” | 410” | 290” | 350” | 410” |
| E Height Overall | 92” | 92” | 92” | 92” | 92” | 92” | 92” | 92” | 92” |
| F Height of Runways | 14” | 14” | 14” | 14” | 14” | 14” | 14” | 14” | 14” |
| G Width of Runways | 32” | 32” | 32” | 32” | 32” | 32” | 32” | 32” | 32” |
| H Width Between Runways | 36” - 58” | 36” - 58” | 36” - 58” | 36” - 58” | 36” - 58” | 36” - 58” | 36” - 58” | 36” - 58” | 36” - 58” |
| I Max Wheelbase | 310” | 370” | 430” | 310” | 370” | 430” | 310” | 370” | 430” |
| J Rise Height | 73” | 73” | 73” | 73” | 73” | 73” | 73” | 73” | 73” |
| Min - Max 4 Wheel Align | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Max 2 Wheel Alignment | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Motor | 3HP | 3HP | 3HP | 10HP | 10HP | 15HP | 15HP | 15HP | 15HP |
| Voltage | 230 - 460v Three Phase | 230 - 460v Three Phase | 230 - 460v Three Phase | 230 - 460v Three Phase | 230 - 460v Three Phase | 230 - 460v Three Phase | 230 - 460v Three Phase | 230 - 460v Three Phase | 230 - 460v Three Phase |
| Speed of Rise | 70 sec. | 70 sec. | 70 sec. | 75 sec. | 75 sec. | 75 sec. | 75 sec. | 75 sec. | 75 sec. |
| Amps | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
Challenger Lifts Warranty Agreement
Challenger Lifts, Inc. lifts are guaranteed to the original owner. CLI shall repair or replace, at CLI option, for the full warranty period those parts that prove upon inspection to be defective and pay for reasonable costs of transportation and/or labor for replacement of said parts for the warranty period stated below. This warranty shall not apply unless the product is installed, used and maintained according to CLI’s specifications set forth in CLI’s installation, operation and maintenance instructions. Use of any unapproved parts or accessories will void your warranty. This limited warranty extends only to the original purchaser and is not transferable. This warranty is valid only if the product has been registered with Challenger Lift, Inc., www.challengerlifts.com.
This warranty does not cover normal maintenance or adjustments, damage or malfunction caused by improper handling, installation, abuse, misuse, negligence, carelessness of operation, or normal wear and tear. In addition, this warranty does not cover equipment when repairs have been attempted or made by anyone other than a CLI authorized service representative.
This warranty is exclusive and is in lieu of all other warranties expressed or implied including any implied warranty of fitness for a particular purpose, which implied warranties are expressly excluded. No employee, agent, representative, dealer or other person or entity is authorized to give any warranties of any nature on behalf of CLI.
The remedies described are exclusive and in no event shall CLI, Inc. be liable for special, consequential or incidental damages for the breach of or delay in performance of the warranty. This warranty shall be governed by the Commonwealth of Kentucky, and shall be subject to the exclusive jurisdiction of the Court in the Commonwealth of Kentucky in the County of Jefferson.
Functional parts are any wear items, as defined from time to time by Challenger Lifts. Examples include power units, cylinders, sheaves, hoses, cables, controls, etc. and may differ depending on the model of lift.
Structural parts are items, as defined from time to time by Challenger Lifts, Inc. that are not Functional Parts and include items like carriage, columns, arms, runways, plungers, etc. and may differ depending on the type of lift.
Note: WARRANTY CARD MUST BE COMPLETED AND RETURNED UPON INSTALLATION FOR VALIDATION or WARRANTY PERIOD WILL BEGIN FROM INVOICE DATE OF LIFT PURCHASE. WARRANTY MAY ALSO BE VALIDATED BY REGISTERING ONLINE @ challengerlifts.com/register.shtml
| Description | Model/Series | Labor | Functional Parts | Structural parts | Extended Warranty Available |
| CL10 | CL10 | 1 Year | 2 Years | 5 Years | Yes |
| 10K 2-Post, 9K 2-Post | LE10, SA10, CLFP9 | 1 Year | 1 Year | 5 Years | No |
| 12K, 15K, 18K 2-Post | CL12, 15000, 18000 | 1 Year | 2 Years | 5 Years | Yes |
| 8K Inground | EVW0820 | 1 Year | 2 Years | 2 years | No |
| 10K Ingrounds | EV1020 | 1 Year | 2 Years | 5 Years | Yes |
| 12K, 15K Ingrounds | EV1220, EV1520 | 1 Year | 1 Year | 5 Years | Yes |
| 14K 4-Post | 4P14 | 1 Year | 1 Year | 5 Years | No |
| 15K 4-Post | 4015 | 1 Year | 2 Years | 5 Years | No |
| 30K 4-Post Cable Drive | 4030 | 1 Year | 2 Years | 5 Years | No |
| 30K, 40K, 60K Chain Drive | 44030, 44040, 44060 | 1 Year | 1 Year | 1 Year | No |
| Rolling Jacks | RJ, SAJ | 1 Year | 1 Year | 1 Year | No |
| Mid and Short Rise | MR-6, SRM-10 | 1 Year | 1 Year | 1 Year | No |
| Scissors | SX14, DX77 | 1 Year | 1 Year | 1 Year | No |
| Mobiles | CLHM | 1 Year | 1 Year | 5 Years | No |
| Accessories | 90 days | No | |||
| Replacement Parts | 90 days | No |
Extended Warranty
An extended warranty is available for purchase for NEW CL/EV Series lifts. The Extended Warranty must be purchased within 30 days of lift invoice, and extends the Functional Parts coverage by an additional 3 years (5 Years total). Lift must be installed by and authorized Challenger installer. Extended warranty does not apply to accessories.
