Shop Tools

The median listing is $54.43: 351 items sit under $25.00 (bits, blades, hook tools) and 27 sit at or above $1,000.00 (tap and die masters, heavy pullers, engine mounting plates, diagnostic platforms). Most shops order from both ends at once.

What is inside this section

Hand tools: ratchets, wrenches, pliers, drivers

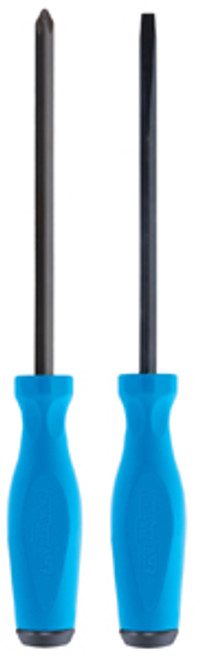

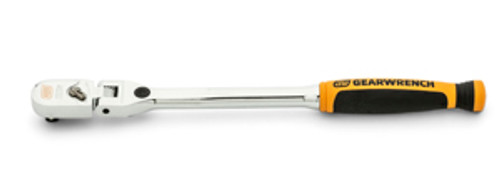

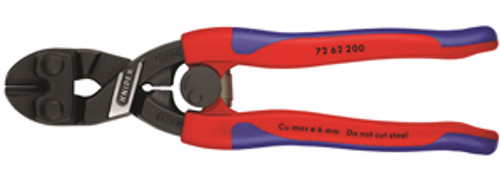

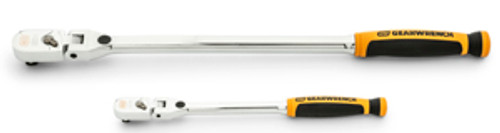

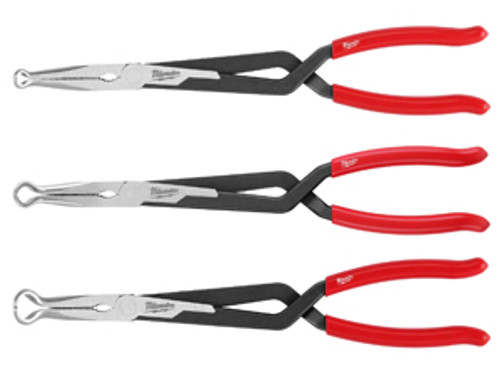

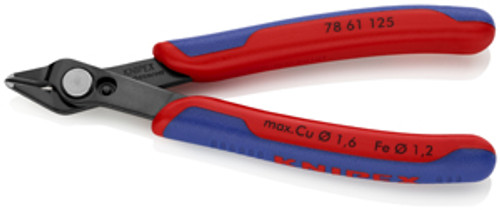

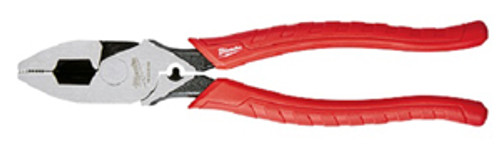

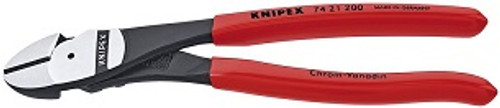

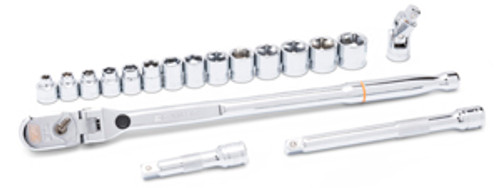

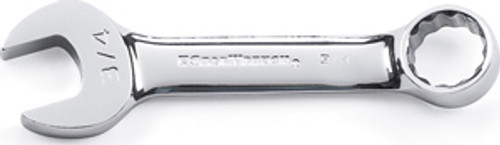

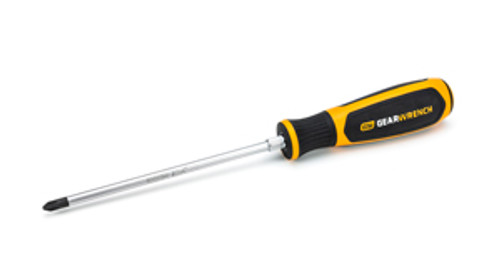

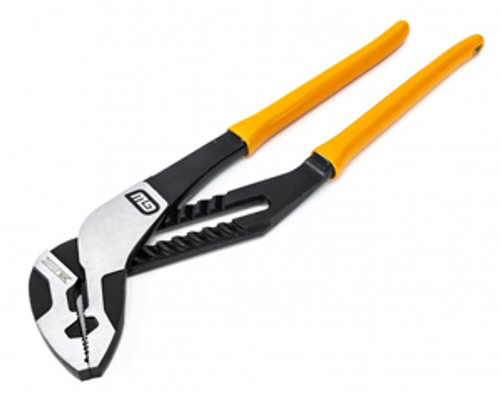

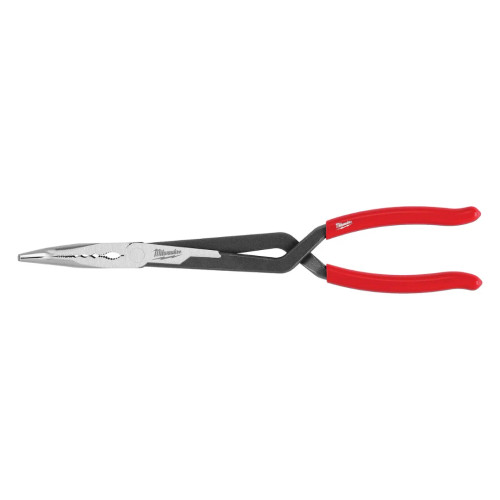

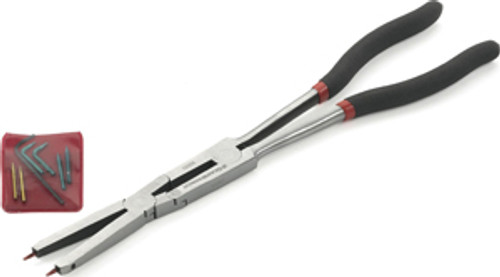

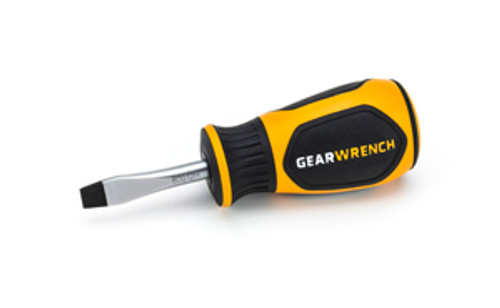

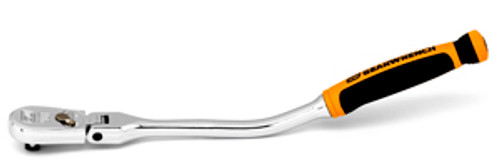

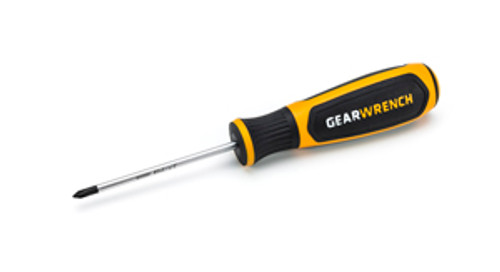

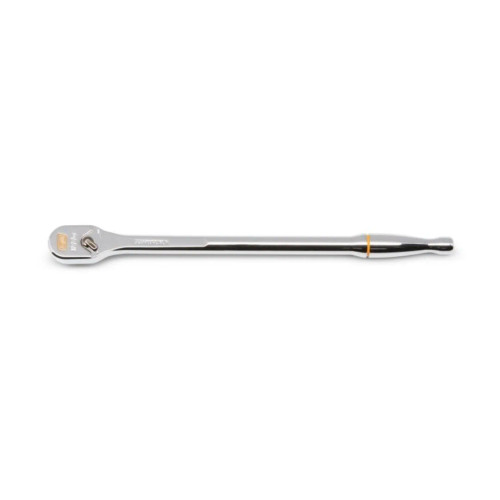

The largest block: 115 listings name a ratchet, 140 name pliers, 85 name a wrench (30 of them impact wrenches and 14 also ratcheting, so the groups overlap) and 48 are screwdrivers or screwdriver sets. GearWrench supplies most of the ratchet program, split by mechanism - 30 listings carry the 90-tooth designation (the 81204T 90T flex head ratchet set, $91.45) and 10 carry 120XP (the 81376 1/2 in. drive locking flex ratchet, $91.45; the 81364XP 1/2 in. drive 24 in. XL ratchet, $77.96). A finer tooth count means a shorter swing arc, which is what matters when a fastener sits against a frame rail. Knipex covers pliers with Cobra water pump pliers, Alligator pliers, circlip and snap ring sets, plier wrenches and cable shears; Channellock adds tongue-and-groove, welding and oil filter pliers.

Cordless platforms

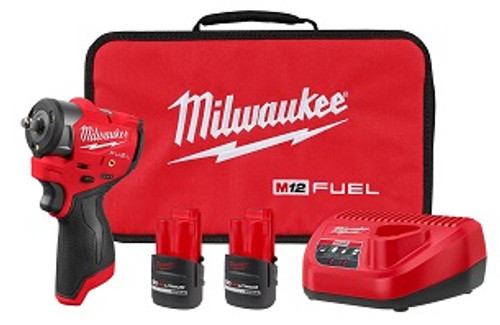

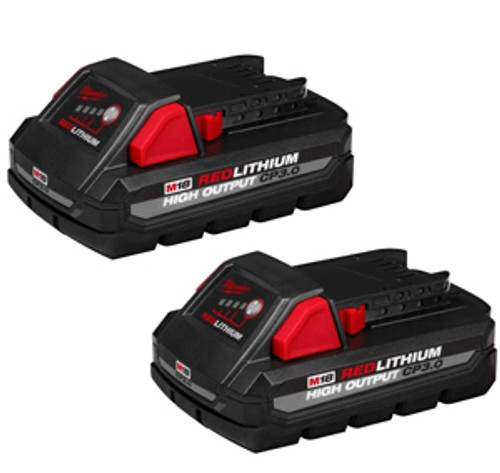

166 listings name a battery platform: 80 M18, 58 M12, 27 20V MAX, one FlexVolt 20V/60V pack (DeWalt DCB606, 6.0Ah) and one unrelated 20V pack (the Lincoln Industrial 1886 grease gun kit, on its own proprietary battery, not DeWalt's 20V MAX platform); one kit, the 3890-22, spans M18 and M12. This matters more than any single tool - standardize on one platform and you share packs; mix platforms and you buy duplicate chargers. Packs run from the Milwaukee 48-11-2401 M12 RedLithium 1.5Ah to the 48-11-1813 M18 RedLithium HD12.0, with DeWalt covering 2Ah (DCB203) through 8Ah (DCB208YY), across 30 battery and pack-kit listings and 3 chargers (a fourth listing, the 2792-20, is a radio with a charger built in).

Air tools

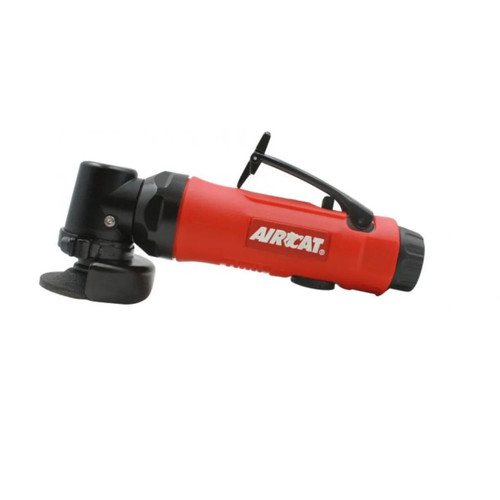

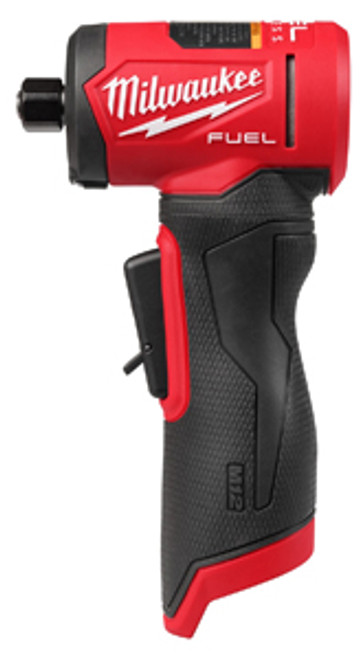

The pneumatic side is Astro Pneumatic and AirCat, plus air supply hardware from Lincoln Industrial: 12 air die grinders, 10 air sanders, the 4980 air hammer with a 0.498 shank, air hammer bit sets, needle scalers, pneumatic punches in 5.5 mm and 8 mm, reversible air drills in 3/8 in. and 1/2 in., air nibblers, cut-off tools in 3 in. and 4 in., and two AirCat air hydraulic riveters. Four more die grinders and four more sanders in this section run on M18, M12 or 20V MAX packs, not on air. Air tools stay relevant because they have no pack to run flat mid-job.

Thread repair, extraction and drilling

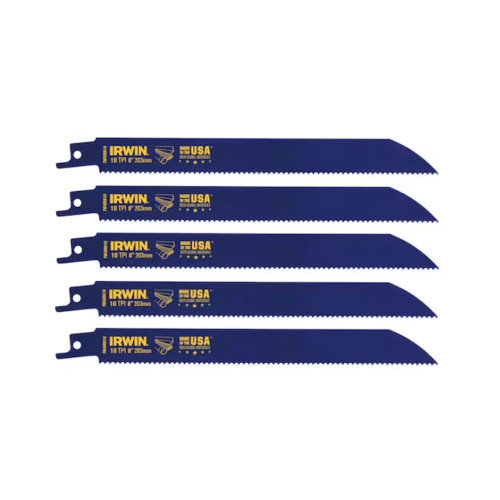

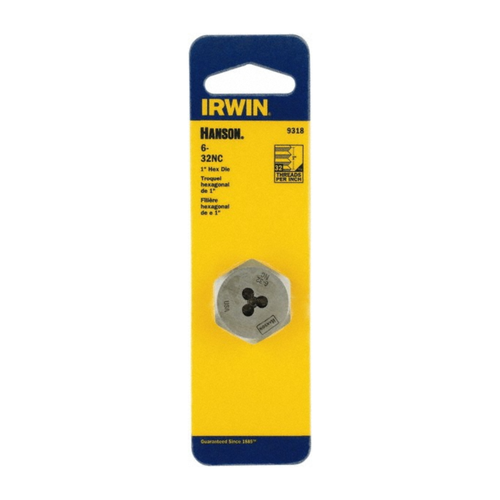

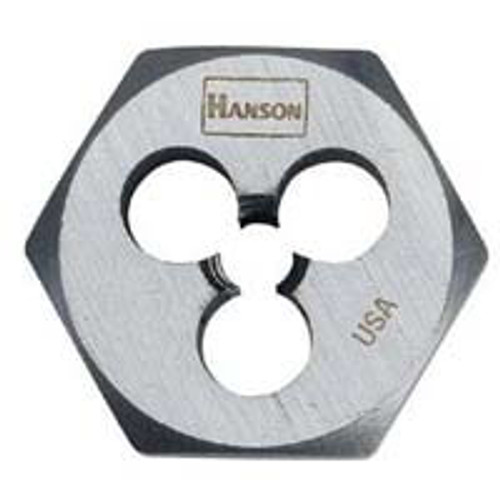

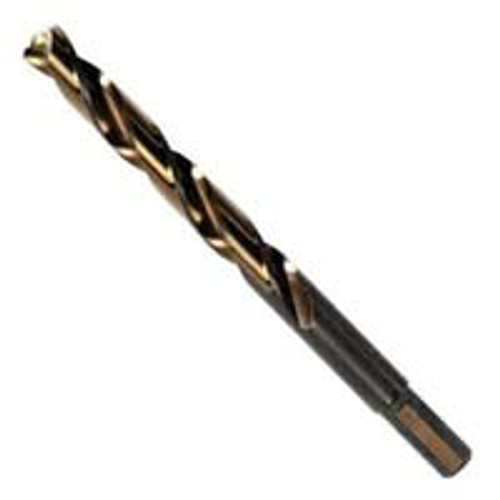

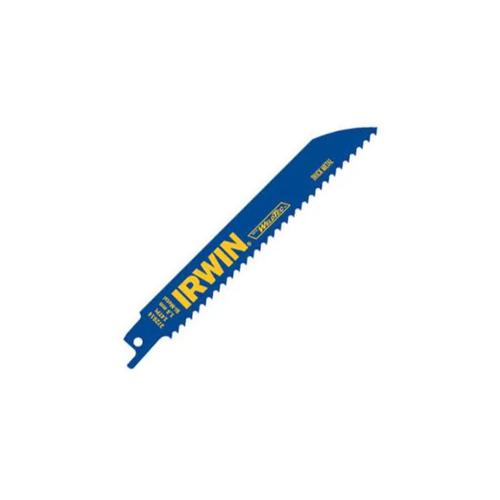

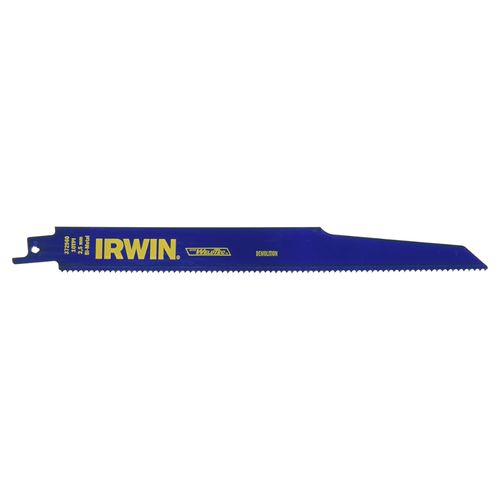

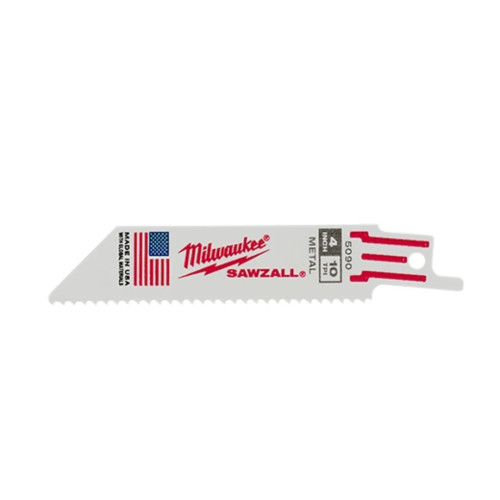

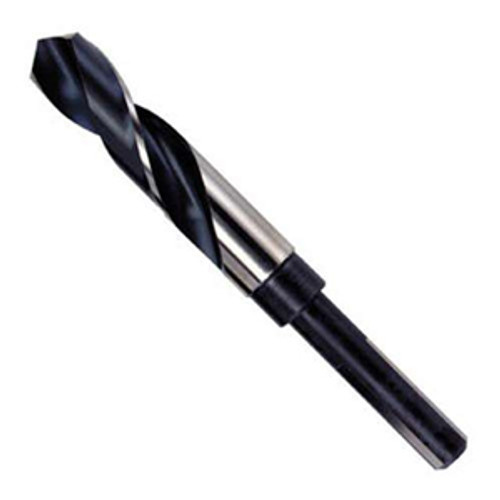

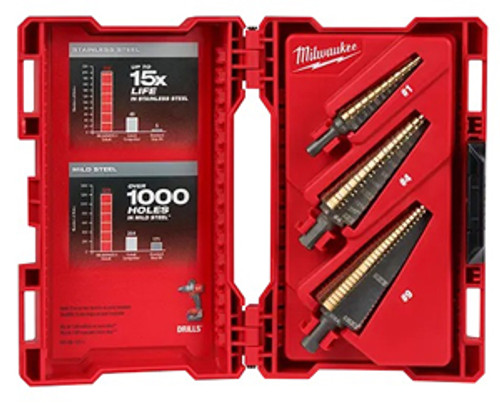

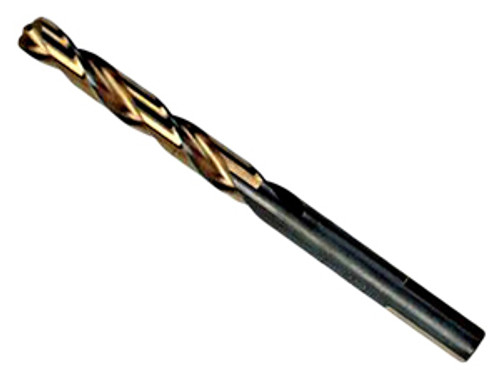

46 listings are extractors and 9 are complete tap and die sets. The largest are Irwin: the 26377DC at 117 pieces, supplied with taps, dies and ratchets, and the 1813817 at 116 pieces, which the listing describes as a ratchet drive set; GearWrench offers the 82812 at 114. For extraction, the Irwin 11135ZR is a 35-piece screw extractor set and the 54113 a 13-piece bolt extractor set, and GearWrench sells the Bolt Biter line including the 86171 16-piece nut extractor set. Drilling covers 75 drill bit listings - Irwin TurboMax and cobalt, Milwaukee Shockwave and cobalt step bits, Astro TurboStep - plus hole saws and 28 reciprocating saw blade listings.

Diagnostics and electrical

TOPDON supplies 23 listings, from a $15.99 Harley 4 pin and 6 pin cable and the $65.01 ArtiLink 500B OBDII scan tool up to the PXMAX four-channel scope and docking station package at $4,500.00. Two listings here declare J2534 pass-thru, which is what matters if you need to reflash modules: the Bosch MTECH2 Mastertech II VCI at $1,749.00 and the TOPDON RLINKJ2534 at $224.00. Confirm vehicle coverage on the model page before you choose between them. GearWrench sells the GWSMART07 7 in. wireless bi-directional diagnostic tablet at $649.00, and TOPDON lists a TS004 thermal imaging monocular at $389.00 for locating hot spots, electrical faults and exhaust leaks, and for scanning brake assemblies for uneven heat after testing.

Vehicle-specific service tools

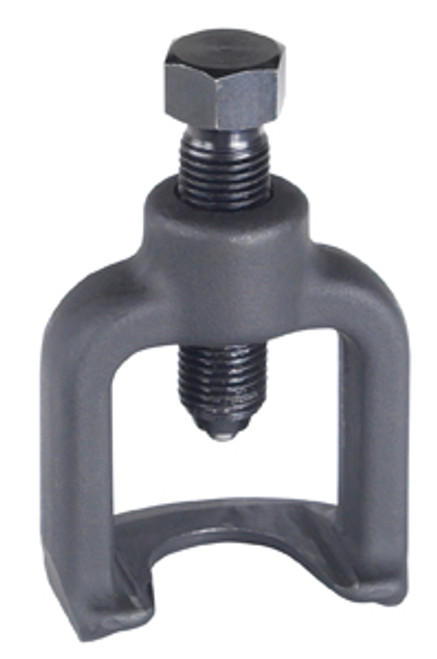

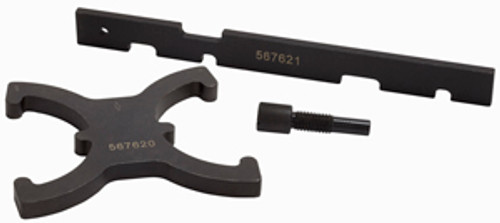

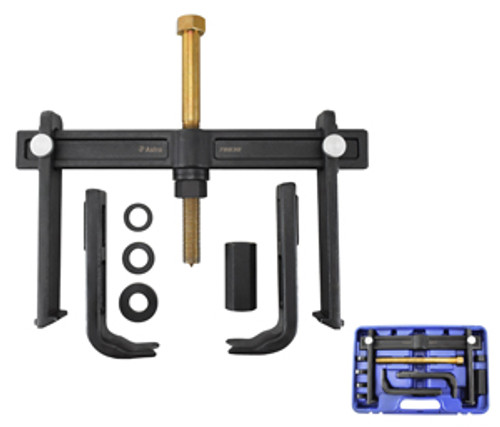

The OTC / Robinair / Bosch block is where model-specific work lives: 16 camshaft tool sets and kits, including the 6498 Ford 4.6 4Valve cam timing kit, the 6680 Ford 3.9L and 6683 Ford 1.6L 4V cam tool sets, and the 6686 GM Northstar V8 cam kit; 12 pullers including the 6575 Hub Grappler hub and bearing kit, brake service kits, injector sleeve tooling, cylinder liner installers and removers, and three engine mounting plates - the 61405 for Cummins L-10 and M11 (37 x 20 x 8 in., 85 lb shipping weight), plus Mack/Volvo and International Harvester/Ford plates.

Tire, wheel and shop fixtures

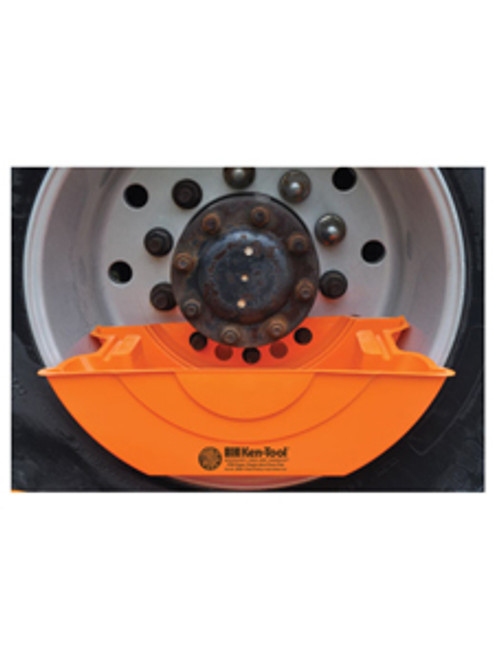

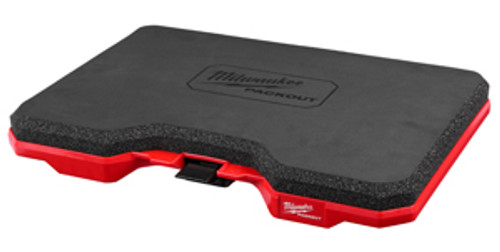

Ken Tool covers tire and wheel service across 17 listings: truck tire demount tools, the 31444 Mega Bead Seater with a five-gallon air blaster tank, TPMS sensor rebuild and stem repair kits, and a 4-way lug wrench. DJS Fabrications supplies 24 shop fixtures - a wall mounted parts rack, a large truck bed cart, panel caddies, and dolly adapters for Mercedes, BMW, Porsche, Corvette and Tesla. Milwaukee adds 12 PACKOUT listings - five of them storage (two drawer boxes, two compact organizers and a screwdriver rack), and seven more: a radio, a fan, a lit charging station, two first aid kits, a kneeling pad and a bit set.

Cordless, air or hand tool

For fastening work the choice comes down to three things. Drive size sets the ceiling: the impact wrenches here run from 3/8 in. up to the 1 in. anvil on the Milwaukee 2869-22HD and 2869-20. Power source sets the workflow: a cordless impact goes out to the customer parking lot, an air impact does not, and an air impact never waits on a charger. Form factor sets access: the Astro 1830 is a palm-sized 1/2 in. impact and the 1833 has a flex head for wheel wells, while the Milwaukee 2562-20 is an M12 3/8 in. stubby aimed at the same problem.

One caution: most pages here state drive size and platform but publish no torque figure. The Milwaukee 2869-22HD is the exception, listing up to 2,000 ft-lbs nut-busting torque, 0 to 1,200 RPM and 0 to 1,440 IPM. For every other model, check the product page or call before assuming a torque rating.

Impact wrench comparison

The prices below were the prices shown on each product page when this page was written. Check the product page or call 800-562-4791 for the current figure before you order.

What your shop needs to run this equipment

Air supply

The AirCat listings are the only ones here that publish full air consumption data, and they set realistic expectations for the rest. Consumption runs from 0.5 CFM on the 6410 and 6420 riveters to 4.2 CFM on the 6250 right angle die grinder, all through a 1/4 in. NPT inlet on 3/8 in. hose. To feed several tools from one line, Astro sells the 2618 air control unit rated at 120 CFM and the 2616 3/8 in. filter regulator; Lincoln Industrial handles hose management with the 83753 3/8 in. reel carrying 50 ft ($293.39) and the 83754 in 1/2 in. ($267.43). Air pressure requirements are not published on most air tool pages here - check the model page first.

Three figures above are read against the feature text on the same listing: the 6325 and 6335 spec tables truncate free speed to 18 and 13, and the 6205 spec table gives a weight of 0.75 lb where the feature bullet says 7.5 lbs - we follow the spec table. One more typo is worth knowing about before you plumb a drop: the 6220 spec table lists a hose size of 3.5 next to a 1/4 in. NPT inlet, and every other AirCat listing here calls for 3/8 in. hose.

Electrical

Only one item in this section carries a full electrical specification: the BendPak E2.1F3H1 electric/hydraulic power unit, listed at 208-230V, 50-60 Hz, single phase, with a 2.5 HP motor, a 3.6-gallon reservoir and a 2,650 psi pressure relief valve. It lowers by gravity rather than by pumping. Everything else here is cordless or bench equipment; where a voltage is not printed, confirm it on the model spec sheet before committing a circuit.

Mounting and floor space

Fixtures come with real install requirements. The DJS-00300 wall mounted parts rack is rated to 150 lbs per shelf across three fold-up shelves and calls for 5/16 in. x 2 in. concrete anchors in a 1/4 in. pilot hole, or 1/4 in. heavy-duty toggle bolts in a 1/2 in. hole for drywall and hollow block. The DJS-00112 large truck bed cart measures 63 x 39 x 32 in. assembled on four casters rated at 1,000 lbs each. The DJS-00125 Tesla Model S and X adapters (set of 2) are made of high strength 6061-T6 aluminum: you unbolt the factory jack pad and bolt the adapter in its place. The listing states they work only with the DJS universal dolly, which is rated at 4,000 lbs and is not stocked in this section - ask us for it before you order the adapters. The Star-A-Liner 9022032 frame anchoring stands ship in sets of four, with three rows of anchor teeth per side and an 18 in. working height at the lowest setting.

Certifications and standards

Be careful with certification claims here, because most listings make none. The BendPak E2.1F3H1 power unit is the one that states a listing mark: UL / ETL Listed. Two listings declare J2534 pass-thru, which is what matters if you need to reflash modules: the Bosch MTECH2 Mastertech II VCI and the TOPDON RLINKJ2534. Five listings here carry a California Proposition 65 warning: the BendPak E2.1F3H1 power unit, the MaxJax RST-1WS work seat and the three Lisle air hose and tool holders. ALI, ANSI, ASME and OSHA marks are not declared on these pages; if a certification is a purchasing requirement, ask us to confirm it in writing for the specific model before you order.

Frequently asked questions

Do the cordless tools include batteries and a charger?

For bare tools the listings are explicit: the Milwaukee 2867-20 and the DeWalt DCF923B are described as bare tools, the Milwaukee 2960-20 states that batteries are sold separately, and the DCF961B is listed as tool only, so they take packs you already own. For the kit numbers - the 2962-22R and the 2967-22GG impact wrench and grease gun combo - the listings name the kit but do not spell out what ships in the box; call us and we will confirm the pack and charger count before you order. Packs and chargers are also stocked on their own, as 30 battery and pack-kit listings and 3 chargers.

What size compressor do I need for these air tools?

Size it against the published consumption of the tools you will run at the same time. Here that ranges from 0.5 CFM for the AirCat riveters to 4.2 CFM for the 6250 die grinder, all on 3/8 in. hose. Impact wrenches and sanders draw more than grinders in sustained work, and most air tool pages here publish no CFM figure, so ask us for the spec sheet before sizing a compressor.

Can I buy single tools, or only sets?

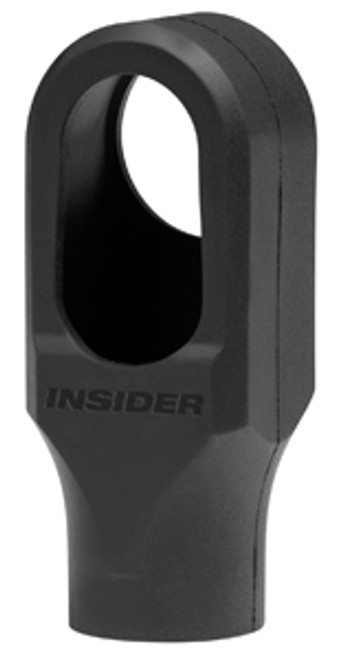

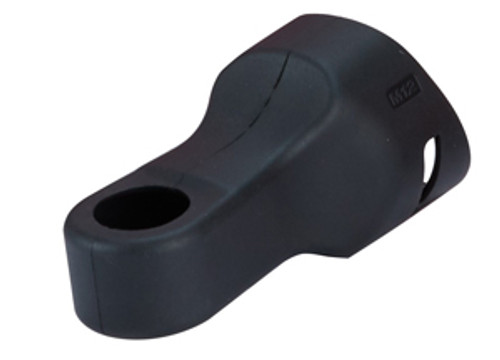

Both. Roughly a quarter of the section is priced under $25.00: single Torx screwdrivers, individual TurboMax drill bits, hook and pick tools, protective boots. At the other end the Irwin 26377DC tap and die set runs 117 pieces. The set is the right call for thread repair, where a missing size stops the job; singles are right for consumables you replace on a schedule.

What is the difference between a 90-tooth and a 120XP ratchet?

Swing arc. More teeth means the pawl catches sooner, so you can turn a fastener in a tighter space without repositioning. GearWrench sells both families here - 30 listings carry the 90T designation and 10 carry 120XP - in locking flex head, compact head, teardrop and 24 in. XL handle variants. Pick the head style for the access problem, and the tooth count for how little room you have to swing.

How do I order, and what if the tool I need is not listed?

Order online, or call 800-562-4791 and we will build the order with you. A few heavy-duty items are phone order only, including the 61405 Cummins L-10 mounting plate and the Mack/Volvo adapter plate. If a catalog number is not shown, send us the brand and part number: we can quote GearWrench, Milwaukee, Irwin, OTC, Astro Pneumatic, Knipex, DeWalt, TOPDON, Channellock, Sunex, Ken Tool and AirCat items beyond what is published here.
