Cemb SM1100 Leverless Center Post Tire Changer

Brand:
CEMB
SKU:
SM1100
Condition:
New

Factory Shipped.

Total Price:
$39,018.87 $23,216.99
(You save $15,801.88)
Free Shipping
Free Shipping

Factory Shipped.

Cemb SM1100 Center Post Leverless Tire Changer

The SM1100 combines the best of multiple tire changer technologies; offering speed and efficiency throughout a wide range of applications. Easily adapts to ultra-low-profile, run-flat tires, special custom rims, every day wheels and even commercial light truck and industrial wheels.

Features:

  • Center Post
  • Wheel Lift
  • Bead Pressing System
  • Leverless System
  • Side Shovel
  • Bead Roller System
 Lateral Icon Leverless System   Moto Inverter  IPH icon
Lateral Til Pole Leverless System moto Inverter IPH
Left side rotating mounting arm. Patented automatic leverless mounting / dismounting tool, complete with plastic protections and controlled by a dedicated joystick.   The new standard supplied independent floating bead presser is recommended to operate on Run-Flat and UHP tires. Particularly efficient on reverse rims thanks to the bead pressing tool height easily adjustable.

 Lateral Bead Braking System icon

  Changer Wheel Lift icon

 Changer Pneumatic Icon


Lateral Bead Breaking System W/ Discs Changer Wheel Lift Pneumatic Wheel Locking System
New lateral bead braking system with independent and synchronized discs conceived to perform a controlled penetration, a quick and efficient disengagement of working area and the bead breaking in series on wheels having the same diameter.

Specifications

Power Supply 220V, 1ph, L6-20P
Air Pressure 115-145 psi (8-10 bar)
Rim Diameter (Ext.) 12" - 30"
Tire Diameter 40" (1016 mm)
Max. Wheel Width 15" (380 mm)
Turn Table Speed 8-15 rpm
Shipping Weight: 1125 lbs (510 Kg)

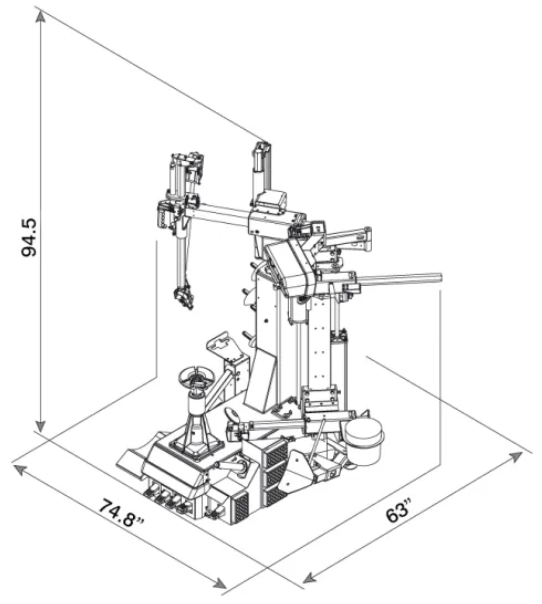

Size

Standard Parts and Accessories

ULS Universal Locking Flange Plastic Lever VR Fixing Accesory Kit Hand Free Clamp Leverless Head Front Insert Leverless Head Rear Insert
Z3013240 Z4-602261 Z8-11100086 0604065 Z8-11600367 Z8-1160038
Lock Handle Protection CONE PROTECTION Cone D.58 Cone Cone D.75 Cone D.120
Z461560 Z4-103232A Z4-118294 Z4-103229A Z4-118294 Z4-103230A





Download

Sell Sheet

Catalog

Warranty Information

  1. By finalizing the purchase agreement, the user confirms that the goods are ordered for purposes related to their business or professional activity.
  2. The duration of the contractual warranty of CEMB products to protect against any construction or operating defects and material defects is 12 (twelve) months from the date of delivery, unless otherwise agreed.
  3. CEMB will replace or repair the products or items supplied, or will totally or partially refund the price, if, despite correct and diligent use by the customer, defects are found not attributable to the installation or incorrect use of the product, which must be asserted against CEMB no later than 12 (twelve) months from the delivery date. Any defects that emerge during use in the first 12 (twelve) months must be immediately notified to CEMB.
  4. The customer undertakes to provide all the evidence regarding the reality of the defects or anomalies found. Likewise, the customer must provide CEMB with all the means to proceed to the ascertainment of such defects and to be able to remedy them. To ensure this latter purpose, the customer will refrain from his own intervention or from any third party intervention.
  5. The disputed goods must be returned to CEMB within 2 (two) weeks from the notification and must be properly packaged, with shipment at customer’s care and in accordance with the special instructions that CEMB may have given at the time of supply or subsequently. The items, or components or parts of them returned must be accompanied by a note stating the description of the defect, as well as any other information indicated or requested by CEMB at the time of supply or subsequently.
  6. The warranty does not apply to replacements or repairs that result from normal wear and tear of the products, from deterioration or accidents caused by negligence, or for use of the products other than that for which the devices are intended. In the same way, the warranty does not apply in the event of inadequate intervention by the customer or user on the products delivered.
  7. The repair, modification or replacement of parts during the warranty period cannot have the effect of extending the warranty period of the products. All other actions and claims covered by the warranty are excluded, especially those aimed at repairing direct or indirect damage caused to people or other objects other than the products delivered, as well as reimbursement of any loss of earnings.
  8. CEMB reserves the right to perform a detailed expert analysis of the products returned under warranty to determine the causes of the defect and communicate them to the customer before proceeding with any replacements, repairs, or refund calculation.
  9. Should the customer request a search for the origin of a fault in CEMB’s goods, to be carried out at its premises, the applicable expenses (travel, etc.) will be charged to the customer after a detailed estimate accepted by the latter before operation, and all this without CEMB being obliged to produce results.
  10. All products or articles or parts thereof replaced by CEMB will become the exclusive property of CEMB. This warranty replaces any warranty or other provision established by law regarding the quality or suitability of the products for specific uses, except for those provisions which by law cannot be waived.
  11. The liability of CEMB for all possible causes is limited to a sum which, in the absence of a different stipulation of the agreement, is limited to the contractual amount of the supply that gives rise to the complaint. The customer agrees to waive any recourse by his/her insurance companies against CEMB and the insurance companies of that company.
