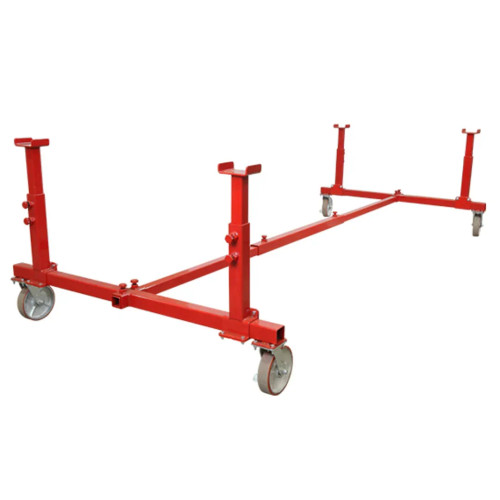

Auto Twirler At-Bce-Assy Body Cart Elite
Our Body Cart Elite is the newest, fully adjustable, universal heavy duty body cart.
It has 8”x2” polyurethane over cast iron wheels, rated for 1,250 lbs each. The cart is rated at 3,000 lbs capacity and will extend out to 12 feet long. The cross member on each end is 5 feet wide, the posts will adjust out 4 feet wide.
Imagine, a 12 foot long cart with a wide stable base and large wheels that roll over cracks and up onto the trailer with ease. This is the ideal cart to transport bodies to the blaster or painter.
We use the same clamps we used on our AutoTwirler PRO so there is absolutely zero wobble on the posts. Each post has about 10“ of height adjustment, for an overall cart height of 28” to 38“ high. The top posts are held in place with two 3/4” structural bolts.
The Elite cart comes standard with 4 straddle pad mounts. Optional Bolt Down posts (like on the Body Cart Plus) or Leaf Spring posts are available, as additional accessories.
Specifications
| Weight | 250 lbs |
| Weight limit | 3,000 lbs rating |
| Casters | Four (4) – 8" Polyurethane over cast iron Casters rated at 1,250 lbs. each, includes 2 caster locks. |
| Width | Up to 60”. |
| Height | 28” to 38". |
| Made in the USA | The Body Cart ELITE is manufactured in Utah The Body Cart ELITE ships bare steel. Powder Coating is available in red or blue for an additional cost. |
| Storage | 15”x60”x20” |
Downloads
1 year Limited Warranty
Every AutoTwirler has a 1 year warranty on the jacks and casters and a 1 year warranty on steel components against manufacturing defects from the date of purchase.
Mis-use
This warranty does not cover mis-use, not following instructions, or items that have been altered in any way.Replacement items are available, at a cost, if needed.
Non Transferable
This warranty is not transferable and must have proof of purchase.
Registering Product
If you purchased your unit thru a JMC Equipment, we highly recommend that you register your product with Auto Twirler by mailing, emailing, or faxing your receipt with your name, address phone and date of purchase.
