Auto Twirler At-Bc-Pro-Assy Body Cart Pro
*The Body Cart PRO ships bare steel. Powder Coating is available in red or blue for an additional cost.
Our Body Cart PRO is our largest and most supportive, fully adjustable, universal heavy duty body cart.
It comes standard with four (4) 8” polyurethane over cast iron casters, rated at 1,250 lbs each.

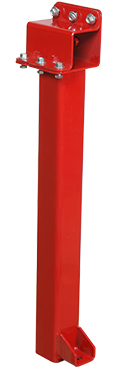

It has 8 independently adjustable mounting posts, all with a 2“x4” pad with a single bolt hole. There is about 10“ of adjustment in 6 of the posts and about 19” in 2 of the posts. We did this so support the rear body mounts on Corvettes, which are higher than the others. Having so many mounts is very helpful when you need to remove one (1) mount in order to repair work on the mounting point or frame rail, you still have 7 other mounts intact.
This cart is adjustable in height from 25“ to 33” high.
Optional straddle pad posts and leaf spring posts are available at additional costs.
The center tubing, which is 3“ square, 3/16” thick, is not included with this cart because (a) the length varies based on the car and (b) its too expensive to ship. If you make the center tubing 30“ longer than your car body, you can use it as a subframe system and mount it onto our rotisserie with our optional swing arms that mount to the center tube ends.
*Note: Sets of (2) - AT-BC-PRO-CONNECT (Not included)
Specifications
| Weight | 375 lbs |
| Weight Limit | 3,000 lbs rating |
| Adjustable Height | 25“ – 33” |
| Casters | Four (4) – 8" Polyurethane over cast iron Casters rated at 1,250 lbs each, includes 2 caster locks. |
| Width | 0” to 63“. |
| Length | Based on the center tube, not included. |
| Made in the USA | The Body Cart PRO is manufactured in Utah. |
| Storage | 12” x 63” x 24” |
Optional Accessories (Sold Separately)
| AT-BC-PRO-CONNECT |
 |
Downloads
1 year Limited Warranty
Every AutoTwirler has a 1 year warranty on the jacks and casters and a 1 year warranty on steel components against manufacturing defects from the date of purchase.
Mis-use
This warranty does not cover mis-use, not following instructions, or items that have been altered in any way.Replacement items are available, at a cost, if needed.
Non Transferable
This warranty is not transferable and must have proof of purchase.
Registering Product
If you purchased your unit thru a JMC Equipment, we highly recommend that you register your product with Auto Twirler by mailing, emailing, or faxing your receipt with your name, address phone and date of purchase.
