Autel MA60020T ADAS Mobile Calibration Frame + MS909 Tablet

Brand:
Autel
SKU:
MA60020T
UPC:
6937357207742
Condition:
New

Factory Shipped

Total Price:
$16,530.00 $16,135.00
(You save $395.00)
Shipping Calculated at Checkout
Shipping Calculated at Checkout

Factory Shipped

Autel MA600LDW2.0T ADAS MA600 Mobile Calibration Frame + MS909 Tablet

Includes frame w/LDW case T1&T2, MA600LDW3, Toyota LDA Target, Software Upgrade (1YR) and the MS909 Tablet.

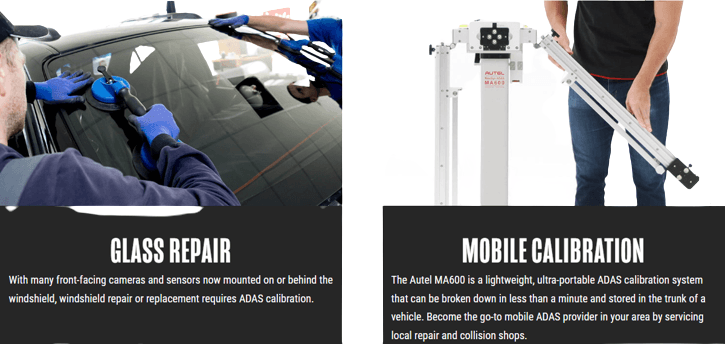

The Autel MaxiSYS ADAS Calibration solution is becoming more portable. The easy to use MA600 frame is quickly folded and disassembled for transport, to calibrate in many locations, creating a smarter service made simple. Advanced Driver Assistance System (ADAS) is becoming standard equipment on today’s new vehicles. With MaxiSys calibration tools and accurate software, Autel MaxiSys ADAS MA600 is an ideal calibration tool for glass replacement and more. Portable expansive affordable. The MA600 provides LDW calibration for camera based systems. Within 2 minutes, one person can perform accurate frame placement.



mobile-specs.pngMA600 provides LDW calibration for camera based systems. Within 2 minutes, one person can perform accurate frame placement.



Lane Departure Warning (LDW)MA600LDW2.0

Warns driver when vehicle begins to move out of freeway lane. Designed to minimize causes collisions: driver error, distractions and drowsiness.

MaxiSys ADAS -- MA600 Parts and Accessories

The MA600 provides accurate calibration procedures for camera based systems with accessories and oversize AVM patterns available to purchase separately. The new step-by-step tutorial graphics and fine line laser leveling process offers a quicker and more efficient vehicle centering and squaring to calibration frame procedure. It's the new generation MaxiSYS MA600, smarter service made simple.


 MaxiSys MS909 Tablet

 The MaxiSys MS909 features a 10-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 128GB built-in memory to provide diagnostic guidance and test components to confirm repairs. The MS909 features the new MaxiFlash VCI, a combination VCI and vehicle communication tool providing faster dual Wi-Fi vehicle and network communications. The MS909 features front and rear cameras and a rechargeable Lithium battery providing 8 hours of continuous use to ensure you always have the power to scan.



image 0


Processor
Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)

Memory
4GB RAM & 128GB On-board Memory

Display

9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen

Connectivity
WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)

BT v.2.1 + EDR
GPS
USB 2.0 (TWO USB HOST Type A, ONE USB mini device)
HDMI 2.0
SD Card (Support up to 256GB)

Camera
Rear: 16 Megapixel, Autofocus with Flashlight

Front: 5.0 Megapixel

Sensors
Gravity Accelerometer, Ambient Light Sensor (ALS)


Audio Input/Output
Microphone

Dual Speakers
3-Band 3.5 mm stereo/standard headset jac

Power and Battery
15000mAH 3.8V lithium-polymer battery
Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C

Input Voltage
12V/3A Adapter

Operating Temperature
0 to 50°C (32 to 122°F)

Storage Temperature
-20 to 60°C (-4 to 140°F)

Dimensions
(W x H x D) 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")

Weight
1.66kg (3.66 lb.)

Protocols
DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
