Zinko ZPE-35RH-4M Pump, Electric 100V, 120 Cu. In Oil Tank With 4 Way/3 Position Manual Solenoid Valve

Brand:
Zinko
SKU:
ZPE-35RH-4M
Condition:
New

Factory Shipped

Total Price:
$3,302.28 $2,964.29
(You save $337.99)
Shipping Calculated at Checkout
Shipping Calculated at Checkout

Factory Shipped

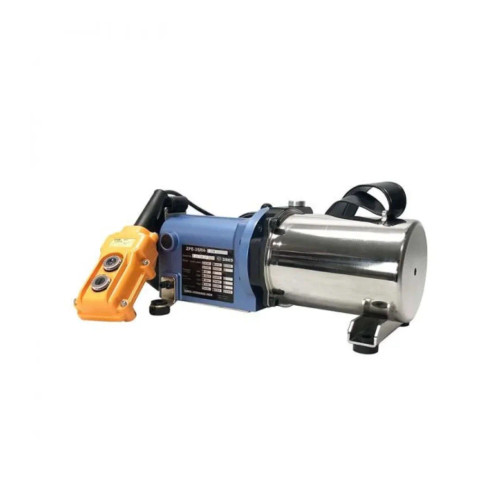

Zinko ZPE-35RH-4M Pump, Electric 100V, 120 Cu. In Oil Tank With 4 Way/3 Position Manual Solenoid Valve

Overview

1/3 HP 110V input Pump with remote pendant switch, 61 in3 reservoir, and 4 way 3 position manual solenoid valve. This pump is designed to work with double acting cylinders. Ideal for general industrial electric installations, the construction industry, ship yards, automotive service shops, material handling situations, laboratories and educational institutions. Capable of up to 10,000 psi (70 Mpa) output| Powered by a 1/3 HP, 2000 rpm commutator motor. Optional 120 in3 reservoir available.

Special Features

  • All models come equipped with either a convenient carrying handle or a shoulder strap.
  • The 4M & 4ML models are specially designed to work with double acting cylinders.
  • Super lightweight and compact for portability. Ideal for use with hydraulic pullers, pipe benders, cable tools and jacks.
  • These pumps are operatable in any position and fully sealed, making them ideal for outdoor use.
  • The 4 way 3 position valve has "advance, "hold" and "return" positions.
  • Cylinder ports are locked in "hold" position, and pump flow is directed back to the reservoir.
  • Country of Origin: Japan
More Information
Oil Capacity (in³) 61
Usable Oil Capacity (in³) 49
AC (v) 110
Output (HP) 1/3
Revolution (rpm) 2000
Max Press 1st Stage - Low (psi) 145
Max Press 2nd Stage - High (psi) 10000
Output 1st Stage - Low (in³/min) 37
Output 2nd Stage - High (in³/min) 18
Weight (lbs) 40.000000













LIMITED WARRANTY

ZINKO makes every effort to assure that its products meet high quality and durability standards and warrants to the original retail consumer/purchaser of our products that each product be free from defects in materials and workmanship as follows:

1 year limited warranty on all ZINKO products unless specified otherwise. Warranty does not apply to defects due directly to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities or to a lack of maintenance. ZINKO LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD SPECIFIED ABOVE FROM THE DATETHE PRODUCT WAS PURCHASED AT RETAIL. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES ORMERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOWLONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

In no event shall ZINKO be liable for incidental or consequential damages. The liability of ZINKO on any claim for loss or damage arising out of the sale, resale, or use of a jack or related service equipment shall in no event exceed the purchase price. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTALOR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.


To take advantage of this warranty, the product or part must be return for examination, postage prepaid, to an Authorized Repair Station designated by our Ontario, California office. Proof of purchase date and explanation of the complaint must accompany the merchandise. If our inspection discloses a defect, ZINKO will either repair or replace the product or refund the purchase price if we cannot readily and quickly provide a repair or replacement, if you are willing to accept such refund. ZINKO will return repaired product or replacement at ZINKO expense. If it is determined there is no defect, or that the defect resulted from cause not within the scope of ZINKO warranty, then the user must bear the cost of storing and returning the products. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. For service contact your local distributor.

* MODEL AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
