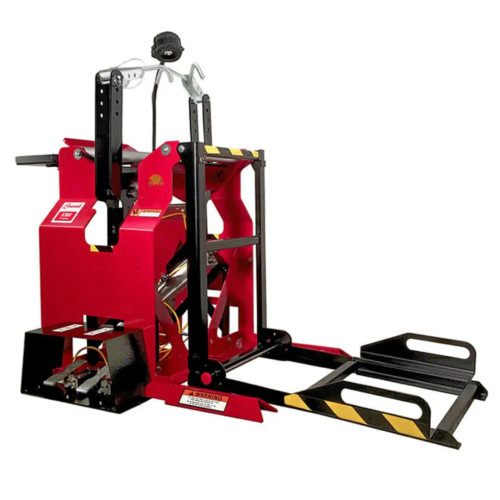

Branick 5300 Tire Spreader
5300 Tire Spreader.
The model 5300 is great spreader whether you are doing inspection or repair. With air-powered tire spread and tire lift, it saves time and reduces back strain from lifting tires. The foot-operated controls keep both hands free to work on the tire, while the RMA-compliant LED light makes your work easy to see. Zinc-plated rollers make rotating the tire a breeze, and the lift-out debris tray makes it easy to clean up. The attached tool tray keeps everything you need within reach. The lift locks up or down to keep it out of the way when not in use.
Features
- Tire Lift and Roll-On Spreaders for Faster, Easier Operation
- Spreaders for Everything From Passenger to OTR/AG
- Air Powered Spread Arms on All Large/HD Spreaders
- Quality All Steel Construction for Strength and Long Life
- Several Super Single Capable Models
Specifications
Maximum Bead Diameter | 24.5" |
Maximum X-Section | 18" / 458 mm |
Spread Arm Type | Air Powered |
Spread Arm Operation | Foot |
Working Height | 31" |
Tire Lift / Roll On | Lift |
Light | Included |
Hook Adjustment | Detent Lock Pin |
Shipping Weight | 350 |
Dimensions (inches) | 34 W X 35 D X 38 L |
Additional Information | Super single capable, Locking Lift, Tool Tray |
Documents:
Commercial Warranty
This product is warranted by BRANICK INDUSTRIES, INC. to the original user-owner against defective materials or workmanship for a period of one year from the date of shipment. During the warranty period, at the discretion of Branick management, if the product is found to be defective, it will be repaired or replaced without charge. For service, contact Branick (800-437-4394) to obtain an RMA. Any product shipped to Branick must have an RMA and proof of original shipment date. The repaired or replacement product will be returned with transportation charges prepaid by Branick.
This warranty does not cover defects in the product caused by ordinary wear and tear, abuse, misuse, overloading, accident (including shipping damage), improper maintenance, alteration, or any other cause not the result of defective materials or workmanship.
REPAIR OR REPLACEMENT IS THE EXCLUSIVE REMEDY FOR DEFECTIVE PRODUCT UNDER THIS WARRANTY. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANT ABILITY OR ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE OF THIS PRODUCT. BRANICK INDUSTRIES, INC. SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES.
BRANICK INDUSTRIES, INC. reserves the right to make changes in the design or construction of our products without obligation to incorporate such changes in products already sold and without notice. Service parts and regular repair service are available from authorized distributors of Branick products.
If you have any questions about warranty information, please contact us at 800-562-4791
