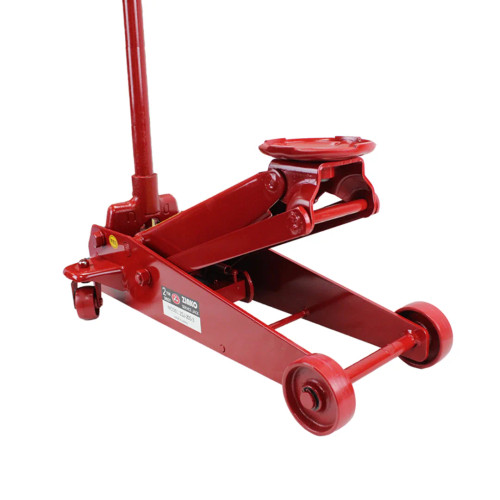

Zinko ZSJ-200H 20 Ton Heavy Duty Service Jack


Factory Shipped

Total Price:
$4,178.57 $3,750.88
(You save $427.69)
Shipping Calculated at Checkout
Shipping Calculated at Checkout

Factory Shipped

Zinko ZSJ-200H 20 Ton Heavy Duty Service Jack

  • The lift can be operated either manually or pneumatically.
  • Overall construction of selected steel frame, full swivel rear caster wheels, and large lifting cap provide easy positioning and enable these jacks to handle the largest loads.
  • With a foot pumping device (Fig.20), you can easily lift the jack saddle up to the loading point. Air hydraulic models with air pressure ranges from 90 to 140 psi can also be operated by the push button for a quick lift. (Fig.22)
  • Push bottom control unit can be easily removed from handle which enables the operator to view the lift from the side (for all air hydraulic models).
  • T-Handle permits easier maneuvering. It can be locked in one of three positions so that it is convenient to position the jack under the load. (Fig.21)
  • Large knob provides load release control. (Fig 22)
  • Extra long chassis reaches under low overhangs.



Model Number Capacity (Tons)

Min Ht. (in)


Hydraulic Lift (in)


Max Ht. (in)


Chasis Leng (in)


Chassis Width (in)


Ht.of Frame (in)


Shipping Wt. (lbs)
ZSJ-200H 20 7 1/2 16 1/2 24 66 7/8 19 1/2 10 1/4 505


Zinko ZSJ-H Parts Breakdown

Zinko ZSJ-H User Manual


ZINKO makes every effort to assure that its products meet high quality and durability standards and warrants to the original retail consumer/purchaser of our products that each product be free from defects in materials and workmanship as follows:

1 year limited warranty on all ZINKO products unless specified otherwise. Warranty does not apply to defects due directly to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities or to a lack of maintenance. ZINKO LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD SPECIFIED ABOVE FROM THE DATETHE PRODUCT WAS PURCHASED AT RETAIL. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES ORMERCHANTABILITY AND FITNESS ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOWLONG THE IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

In no event shall ZINKO be liable for incidental or consequential damages. The liability of ZINKO on any claim for loss or damage arising out of the sale, resale, or use of a jack or related service equipment shall in no event exceed the purchase price. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTALOR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

To take advantage of this warranty, the product or part must be return for examination, postage prepaid, to an Authorized Repair Station designated by our Ontario, California office. Proof of purchase date and explanation of the complaint must accompany the merchandise. If our inspection discloses a defect, ZINKO will either repair or replace the product or refund the purchase price if we cannot readily and quickly provide a repair or replacement, if you are willing to accept such refund. ZINKO will return repaired product or replacement at ZINKO expense. If it is determined there is no defect, or that the defect resulted from cause not within the scope of ZINKO warranty, then the user must bear the cost of storing and returning the products. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. For service contact your local distributor.
