Chicago Pneumatic PAT24 Single-Stage Pump (1-2 HP)
Features
- Used on BelAire and Chicago Pneumatic Single Stage Portable Air Compressors
- 7.1 CFM @ 100 psi (1000 RPM)
- 11" Flywheel
- Cast Iron Cylinder
- Single Stage Compressor
- Belt Drive
- Oil Lubricated (splash lubrication)
- Oil Sight Glass
Specifications

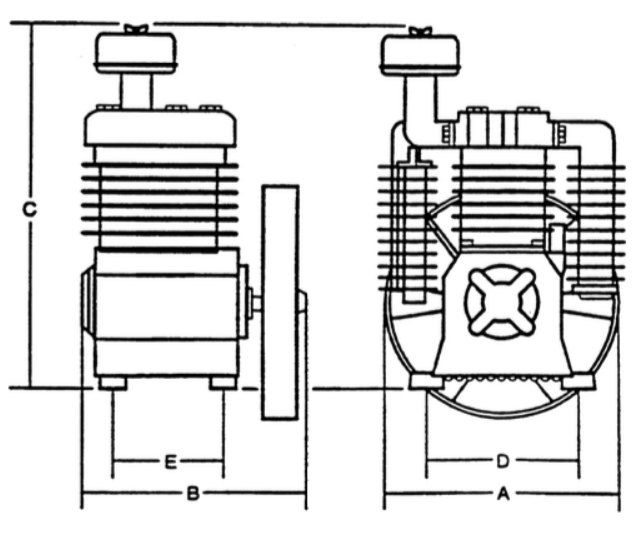

Model | A | B | C | D | E |
PAT24 | 11.00 | 9.90 | 11.00 | 6.38 | 5.20 |
PAT38 | 13.00 | 10.91 | 13.50 | 6.14 | 5.51 |
T29S | 13.78 | 12.40 | 14.56 | 6.75 | 5.75 |
B5900 | 13.78 | 13.54 | 15.94 | 7.48 | 6.69 |
T39 | 15.00 | 13.46 | T39 | 9.25 | 6.57 |
C1 | 17.91 | 19.57 | 19.69 | 9.00 | 7.75 |
C2 | 28.74 | 21.06 | 19.15 | 9.63 | 9.13 |
*The manufacturer collects Sales Tax in all states
Chicago Pneumatic Limited Warranty Policies
General Pneumatic Tools: 1 Year Limited Warranty
Limited Warranty: The “Products” of the Chicago Pneumatic Tool Co. LLC (“CP”) are warranted to be free from defects in material and workmanship for one year from the date of purchase. This Warranty applies only to Products purchased new from CP or its authorized dealers. Of course, this Warranty does not apply to products which have been abused, misused, modified, or repaired by someone other than CP or its Authorized Service Representatives. If a CP Product proves defective in material or workmanship within one year after purchase, return it to any CP Factory Service Center or Authorized Service Center for CP tools, transportation prepaid by customer, enclosing your name and address, adequate proof of date of purchase, and a short description of the defect. CP will, at its option, repair or replace defective Products free of charge. Repairs or replacements are warranted as described above for the remainder of the original warranty period. CP’s sole liability and your exclusive remedy under this Warranty is limited to repair or replacement of the defective Product. (There Are No Other Warranties Expressed Or Implied And CP Shall Not Be Liable For Incidental, Consequential, Or Special Damages, Or Any Other Damages, Costs Or Expenses.)
