EMAX Silent Industrial Plus 7.5 HP 3 Phase 2-Stage 80 gal. Compressor with 30 CFM Dryer Bundle-With Pressure Lube Pump

EMAX Compressors

Factory Shipped
Calculated at Checkout
Total Price:
MSRP: $6,513.21
(You save  $1,085.21 )
Adding to cart… The item has been added
Shipping Calculated at Checkout Factory Shipped

EMAX Silent Industrial Plus 7.5 HP 1-Phase 2-Stage 80 gal.Vertical Compressor with 30 CFM Dryer Bundle-With Pressure Lube Pump

This package contains:

(1) EMAX Premium 7.5 HP 3 PH 80 GALLON VERTICAL WITH AIR SILENCER-With Pressure Lube Pump

(1) EMAX 30CFM 115V Refrigerated Air Dryer

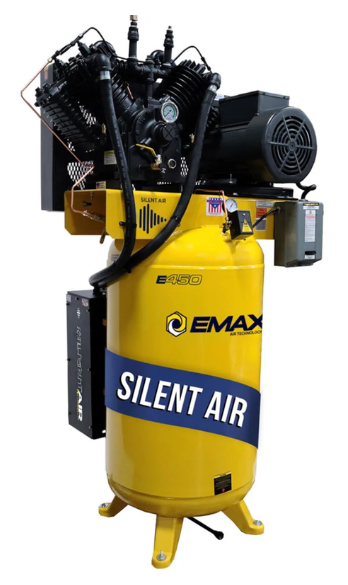

EMAX Premium 7.5 HP 3 PH 80 GALLON VERTICAL WITH AIR SILENCER-With Pressure Lube Pump

Engineered and manufactured in the U.S.A. The whisper series compressors reduce stationary compressor DBA ratings by as much as 25%!

The Whisper dissipates compressor intake noise by channeling the intake air through a series of baffle plates and pre-filter media within the silencer cabinet. As a result, the piston intake noise is trapped and dissipated within the silencer structure. As a result, the piston intake noise is trapped and dissipated within the silencer structure. It also acts as a secondary filtration for cleaner air.

Patented Pressure Lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based on B-10 bearing life rating


  • Pumps are SUPER quiet in operation and built to last!
  • Solid cast iron crankcase.
  • Precision balanced solid cast iron crankshaft
  • Timken-Style stainless steel roller bearings on the front and rear of the crankshaft
  • Removable 100% cast iron cylinders
  • Re-usable oil filter
  • Oil Pressure Gauge
  • Eligible for lifetime pump warranty
  • Built-in fan, head unloaders, inter-cooler and after-coolers.
  • One of the lowest RPM compressor pumps on the market. That’s the Emax difference!
  • Not only do you get the big CFM output, but the lower RPM operation also reduces friction and heat buildup to extend pump life!
  • Raised pump platform design is a nice feature for keeping your oil cool within the pump.
  • Large 1-3/8” output shaft
  • High quality ball bearings on the front and rear of the motor shaft
  • Large starting and running capacitors
  • 15 Service Factor load. This means the motor can be pulled 15% over full load for more break horsepower
  • Dynamically balanced armature for low vibration levels
  • Automatic Belt Tensioner will allow you to adjust the tension and alignment of your belts with ease and in just minutes.
  • Belt guards built right here in the USA with 13 G steel and premium grade expanded metal
  • For your safety, our belt guards are OSHA approved.
  • Prewired condor starter and pressure switch built into one. Features an actuation- type diaphragm.
  • Our air tanks are manufactured right here in the USA and are ASME code compliant in 50 states including California.
  • 100% brass check valves with Teflon Seating.
  • 100% brass ASME safety valves.
  • Automatic Tank Drain with Integrated Dual Timer will do maintenance for you automatically on the time intervals you set to ensure that the condensation is removed
  • Prewired magnetic starter
  • “Continuous run” feature that maximizes performance and reduces wear on the internal components of your motor.
  • For normal workloads in your shop, you can turn off the continuous run and the unit will go back to automatic start/stop operation.
  • Taper lock style 2-groove pulleys (not single groove).
  • We also use dual 2-groove, B-Style belts to drive our pumps.


 Voltage available  230
 Motor RPM  1750
 Motor Phase  Single phase
 Magnetic Starter  Yes
 Amp Draw  32
 Recommended Breaker  50 AMP
 HP  7.5
 Pump Model  APP4V1043TP
 Pump Material  Solid Cast Iron
 Pump Drive  Belt Drive
 Pump RPM  640
 Max PSI  175
 CFM @ 100 PSI  31
 Compressor Stage  Two Stage
 After Cooler  Yes
 Oil Type  Oil Lubricated
 Oil System  Full Pressure Lubrication
 Oil Sight Glass  Yes
 Oil Capacity  2.5 quarts
 Pump Low Oil Shut-off  No
 Tank Size  80 Gallon
 Tank Outlet  3/4 Inch
 Tank Drain  Timed Automatic
 Tank Orientation  Vertical
 Pressure Gauge  Yes
 Air Dryer  No
 Air Filter  Yes
 Weight  743 Pounds
 Dimensions LxWxH  38" x 42" x 72"
 Power Type  Electric
 UPC  815002013190
 Certifications  CSA, ASME,ETL
 Warranty  1 Year Standard, 5 Year Extended, Lifetime Extended



EMAX 30CFM 115V Refrigerated Air Dryer

Our EMAX air dryer is the only energy efficient dryer systems with aluminum refrigerated air inner cooler. The air is filtered of all solid particles 0.01 micron and larger.  Clean, dry compressed air leaving the dryer minimizes maintenance and repair and also reduces internal dryer contamination. We designed them with Non-corrosive inner and after cooler.

Our dryers feature stainless steel heat exchanger for maximum dryer life and less maintenance.  Emax Air dryers are UL-CSA approved scroll compressor & electric system for high efficiency and durability. They feature adjustable hot bypass for complete dryer function in low and high CFM flow preventing dryer freeze up.

Keep Water, Oil, And Dirt Out of Your Compressed Air, Less corrosion of pipes and tools. Avoid splotches & stains.
Energy Efficient Aluminum Refrigerated Air Cooling System, Designed for maximum performance and efficiency.
Rust Free, Stainless Steel Heat Exchanger, Maximum heat transfer, maximum dryer life & less maintenance
Refrigerated Air Inlet Inner Cooler, Provides trouble free operation for high temp cooling
Compact And Efficient, Great for a 5-7.5 HP systems, 30 CFM
Easy To Instal, Uses 120V single-phase power, no special wiring needed


  • Purifies compressed air by chilling to condense moisture
  • Condensate is drained carrying oil & dirt partials away from the air
  • Auto drain system – eliminates the need for daily maintenance
  • Refrigerant pressure – gauge clearly monitors performance of dew point temp (models under 400 CFM)
  • PLC Display (models 400 CFM & above)
  • Outlet air baffle heater –  prevents condensation on outlet air piping
  • Heavy duty steel cabinet
  • Trouble free operation refrigerated air inlet inner cooler for high temp cooling
  • Top mounted condenser & fan motor
  • Environmentally friendly 134A refrigerant
  • Auto Drain System
  • Refrigerant Pressure Gauge
  • Outlet Air Baffle Heater


 CFM  30
 Dimensions LxWxH  16" x 14" x 22"
 Product Weight  71
 Voltage 60HZ  115
 Amp Draw  4
 Dew Point (degrees F)  37-50
 Pipe Size:Inlet & Outlet (inch.)  1/2"
 Max Ambient Temp.(degrees F)  122
 Refrigerant Type  R-134A
 Max Rated Inlet Temp (degrees F)  140
 Dryer Drain  Built in automatic
 Dryer Filtration  Built in coalescing filter
