Bendpak PCL-18B-4 72,000 Lb Portable Column Lift

BendPak PCL-18B-4 72,000 Lb. Capacity Portable Column Lift - SET OF 4

Features

• SET OF 4.
• 18,000-lb. individual column capacity / 108,000-lb. maximum system capacity.
• Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011.
• Two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles.
• 208-240V, 3-phase main power system - optional voltages available upon request.
• SINGLE, PAIR or TEAM operation.
• For a standard four-column set, just three 30' cables are used leaving the front or back of the lift clear of cable obstructions.
• Simple operation, long service life and minimum maintenance.
• Intuitive controls allow the lift to be fully programmed and controlled from any column.
• Control systems feature 24-volt safety circuitry.
• The PLC and main system components are standard off-the-shelf brands rather than proprietary printed circuit boards or controls, which can be very expensive to service or replace.
• Smart electronics feature self-diagnostics and self-calibration functions.
• Sealed and enclosed linear potentiometers feature precision potentiometric output and high-frequency response for precise synchronization and communication of all columns throughout all operation cycles for precise, level lifting.
• Variable height limit settings can be programmed for shops with low ceilings or when specific vehicle service requirements necessitate specific rise heights.
• Two-speed lowering option – turtle or rabbit speed settings.
• Each column is equipped with a warning light and audible alarm for critical warning alerts.
• Emergency shut-off switches on each column quickly shut off power to the lift in the event an unsafe condition is detected by the operator.
• Separate key lock enclosure on each column.
• Electronics are multi-fuse protected.
• An enclosed electric-hydraulic power system that ensures quieter operation is better suited for sound-sensitive areas.
• Pallet-jack style steering wheels enable the columns to be lowered firmly on the floor vs. constantly loaded spring-type steering wheels that can cause columns to roll when unladen by the weight of a vehicle.
• Low-mounted power units and cylinders means a lower center of gravity, making the columns easier to move and less likely to topple vs. screw-drive systems with heavy overhead motors and drive systems.
• Extended forks accommodate wide tires and deep wheel configurations.
• Multi-width wheel forks with locking pins accommodate the widest range of wheels, eliminating the need for specialty wheel adapters.
• Tandem 8” diameter polyurethane covered steel wheels with sealed roller bearings easily roll over dirt and debris.
• Heavy-duty steel carriage rollers feature turned, ground and polished axle pins.
• Manual safety override valves on each column permit the lift to be lowered in the event of a power outage without the need for manual hand cranks.
• Durable forklift pockets provide simplistic handling when moving the lift columns from one facility to another.
• Inverted hydraulic cylinders feature an integrated safety valve to prevent accidental uncontrolled lowering in the event of oil pressure loss.
• Multiple, automatic, independent safety locks spaced every four inches ensure safe operation.
• Space-saving design, reduced column weight and a tight turning radius provides improved mobility.
• Use the lift to place vehicles on tall jack stands then use the columns to raise another vehicle in an adjoining bay.
• Durable powder-coat finish.

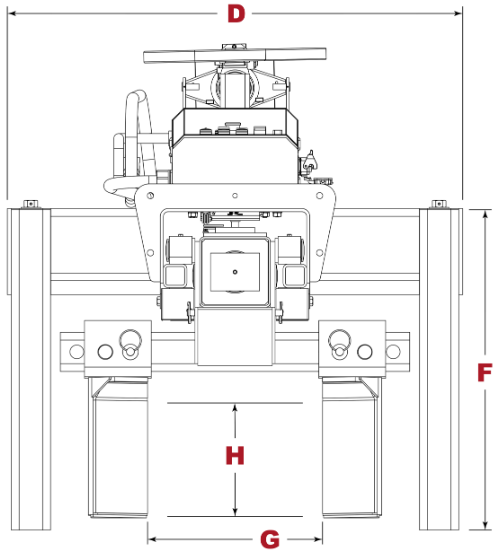

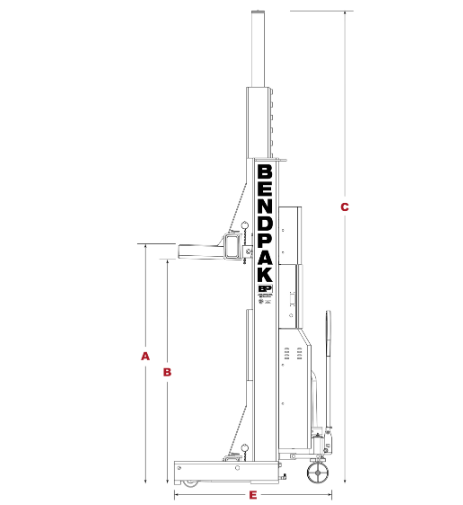

Specifications

*Specifications subject to change without notice.
