jmc-shipping-button.pngBendpak Hdso-14AX 14,000-Lb. Capacity Open Front Extended Alignment Lift

Open-Front Design and 14,000 Lbs. of Might

The HDSO14AX is a 14,000-lb. capacity open-front alignment lift. The “open” design makes it easier to access the front turn plates and undercarriage. Our alignment system features front turn plates and rear slip plates built right into the runways. The wheels always respond to your adjustments with no resistance or hassle. This car lift is available with optional drive-thru ramps, drip trays and rolling jacks.

Bendpak Leak Proof Bendpak HDSO-14LSX Warranty Bendpak HDSO-14LSX Floorplan

Bendpak Safe Balancing Bendpak Car Lift Guide Bendpak Top 10 Car Lift Buyer's Guide



Features

  • 14,000-lb. lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Heavy-duty turn plates and integrated rear slip-plates included
  • Multi-position turn plate pockets
  • Automatic leveling system
  • Multiple auto-leveling locking positions
  • Runways include rail-kit for optional accessories
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks, and sheaves
  • Internal “Anti-Sway” UHMW slider blocks in each column
  • Features oversize sheaves and heavy-duty 1/2” aircraft cable
  • Rugged 1?3/8” roller axles and oversize self-lubricating cable sheaves
  • Multi-position safety locks in each column with push-button safety release
  • Runways adjust for different tread widths and feature non-skid surface
  • Optional 7,000-lb. capacity bridge jacks available (Model RJ?7) 14,000-lb. lifting capacity

Specifications

 Capacity
 Lifting Capacity*  14.000 lbs. (6350 kg)
 *Max Capacity / Front Axle  7000 lbs. (3175 kg)
 *Max Capacity / Rear Axle  7000 lbs. (3175 kg)

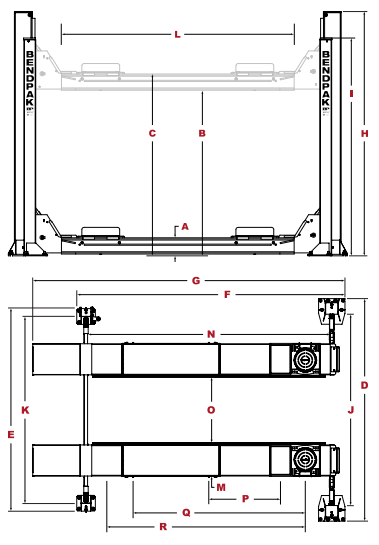

 Rise
 A - Min. Runway Height:  7,625" (194 mm)
 B - Max. Rise:  70" (1778 mm)
 C - Max. Lifting Height:  77,625" (1972 mm)
 Time to Full Rise:  60 seconds
 D - Overall Width (FRONT)  143” (3,632 mm)
 E - Overall Width (REAR)  130” (3,301 mm)
 F - Outside Length  215" (5,472 mm)
 G - Overall Length  243" (6,191 mm)
 H - Height of Columns (FRONT)  105" (2,664 mm)
 I - Height of Columns (REAR)  103” (2,613 mm)
 J - Width Between Columns (FRONT)  123” (3,124 mm)
 K - Width Between Columns (REAR)  120” (3,046 mm)
 L - Drive-Thru Clearance  97” (2,464 mm)
 M - Runway Width  20.5” (520 mm)
 N - Length of Runways  199" (5,054 mm)
 O - Width Between Runways  45" (1,143 mm)
 P - Min. 4-Wheel Alignment  89" (2,261 mm)
 Q - Max. 4-Wheel Alignment  156" (3,962 mm)
 R - Max. 2-Wheel Alignment  175" (4,445 mm)
 Minimum Wheelbase
 Rated Capacity:  140" (3556 mm)
 75% Capacity:  120" (3048 mm)
 50% Capacity:  100" (2540 mm)
 25% Capacity:  80" (2032 mm)
 Locking
 Locking Positions:  13
 Lock Spacing:  4
 Power Unit
 Motor:  220 VAC / 60 Hz / 1 Ph
 Noise:  45 dB
 Shipping
 Weight:  3,586-lbs. (1,626 kg)
 Dimensions:  240'' x 23'' x 41'' (6,096 mm x 584 mm x 1,041 mm)

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to function. It is solely the responsibility of the end-user to provide, install and maintain the air supply.




ACCESSORIES:

Bendpak WSA-100     Bendpak Air Bottle jack     Bendpak DP-30     Bendpak Rolling Jack 7000     Bendpak Airline Kit
         WSA-100          AIR BOTTLE JACK                DP-30                ROLLING JACKS          AIRLINE KIT


Downloads

Manual
Specs



**Bendpak charges sales tax in California**
***It is the buyer's responsibility to unload the freight at their location.
