Bendpak HD-973PX-G Galvanized Parking Lift
The BendPak Tri-Level Parking Lift with 9,000 lb. and 7,000 lb. capacity is constructed of galvanized steel with powder coated finished for exceptional strength and durability. It features extra height and width design to provide increased space for stacking taller and longer vehicles.
Supersize your parking capacity with this revolutionary tri-level parking lift from BendPak! This unique four-post parking lift design parks up to three vehicles in one space, instantly tripling your parking capacity. With an extended length and taller rise compared to the HD-973P, the HD-973PX has even more room for your longest and boxiest vehicles.
The tri-level HD-973PX is a four-post parking lift that maximizes your parking capacity without adding any additional real estate. Each HD-973PX houses up to three vehicles on strengthened parking platforms to give you the most space for your buck. With an additional 84” of overall height compared to the HD-973P parking lift, the HD-973PX supports some of the biggest vehicles around! This extra height, along with the additional 10” of runway length, gives you the perfect amount of space to fit longer and taller vehicles, while maintaining a height that will fit comfortably in most shops and garages. With the topmost platform’s weight capacity sitting at a hefty 7,000 lbs. and the lower deck handling up to 9,000 lbs., the HD-973PX is ideal for lifting even heavy-duty vehicles like full-size trucks and SUVs.
This rugged design is ready for installation indoors or outdoors, instantly tripling your parking and storing capability. The easy to use top-of-the-line design ensures that your vehicles are being lifted safely, and efficiently. Which saves you time, and worry. The safety features that come standard with any BendPak lift make sure your cars stay in the air until YOU move them, and intuitive design cycles through the cars at the push of a button. With the HD-973PX you’re getting a lift that can not only park your taller and longer vehicles, but fits comfortably and safely wherever you need it most.
Features
- Extended length, high rise.
- Perfect for parking, storage and service.
- 7,000 lb. capacity upper deck.
- 9,000 lb. capacity lower deck.
- Superstructure features durable powder coat finish.
- Perfect for cars, trucks, and SUVs.
- Platforms feature full-length aluminum decking.
- Rugged welded-steel construction.
- Powerful hydraulic cylinders.
- Heavy-duty 3/8” lifting cable.
- Heavy-duty steel construction.
- Wide base-plate for maximum stability.
- Heavy-duty steel construction.
- Grease nipples are located on every sheave and sheave axle to make lubrication maintenance a breeze.
- Integrated hydraulic flow restrictor provides controlled descent in event of hose rupture.
- Reliable electric-hydraulic power system.
- Multi-position safety locks in each column.
- Automatic safety locks combined with redundant anti-fall devices.
- Adjustable lock ladders.
- Independent backup slack-cable safety latches.
- Push-button pneumatic safety release.
- Padded trip bar with limit switch prevents lower vehicle from making contact with upper platform.
- Simple controls.
- Optional drive-thru ramps available.
- Optional 4,500-lb. air-hydraulic rolling jacks available.

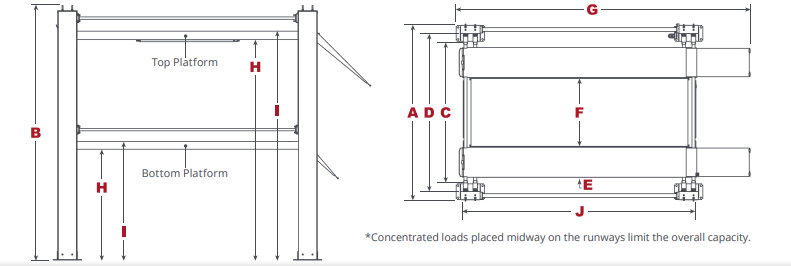

Specifications
| Style | |
| Style | Multi-Level Parking Lift |
| Top Platform | |
| Lifting Capacity* | 7,000 lbs. (3,175 kg) |
| *Max Capacity / Front Axle | 3,500 lbs. (1,588 kg) |
| *Max Capacity / Rear Axle | 3,500 lbs. (1,588 kg) |
| A - Overall Width | 112" (2,849 mm) |
| B - Overall Length | 252.25" (6,409 mm) |
| C - Height of Columns | 173" (4,398 mm) |
| D - Drive-thru Clearance | 87" (2,201 mm) |
| E - Maximum Rise | 151.5" (3,849 mm) |
| F - Maximum Lifting Height | 156.5" (3,972 mm) |
| G - Distance Between Columns | 100" (2,546 mm) |
| H - Runway Width | 19" (482 mm) |
| I - Width Between Runways | 44" (1,121 mm) |
| J - Runway Length | 199" (5,056 mm) |
| Min. Wheelbase @ rated Capacity1 | 140" (3,556 mm) |
| Min. Wheelbase @ 75% Capacity1 | 120" (3,084 mm) |
| Min. Wheelbase @ 50% Capacity1 | 100" (2,540 mm) |
| Min. Wheelbase @ 25% Capacity1 | 80" (2,032 mm) |
| Locking Positions | 34 |
| Locking Spacing | Every 4" (102 mm) |
| Lifting Time to Max. Rise | 90 seconds |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Bottom Platform | |
| Lifting Capacity* | 9,000 lbs. (4,082 kg) |
| *Max Capacity / Front Axle | 4,500 lbs. (2,041 kg) |
| *Max Capacity / Rear Axle | 4,500 lbs. (2,041 kg) |
| A - Overall Width | 112" (2,842 mm) |
| B - Overall Length | 252.25" (6,409 mm) |
| C - Height of Columns | 245" (6,227 mm) |
| D - Drive-thru Clearance | 90.25" (2,295 mm) |
| E - Maximum Rise | 82.25" (2,088 mm) |
| F - Maximum Lifting Height | 87.25" (2,211 mm) |
| G - Distance Between Columns | 100" (2,546 mm) |
| H - Runway Width | 19" (482 mm) |
| I - Width Between Runways | 44" (1,121 mm) |
| J - Runway Length | 186.75" (4,744 mm) |
| Min. Wheelbase @ rated Capacity1 | 135" (3,429 mm) |
| Min. Wheelbase @ 75% Capacity1 | 115" (2,921 mm) |
| Min. Wheelbase @ 50% Capacity1 | 95" (2,413 mm) |
| Min. Wheelbase @ 25% Capacity1 | 75" (1,905 mm) |
| Locking Positions | 16 |
| Locking Spacing | Every 4" (102 mm) |
| Lifting Time to Max. Rise | 50 seconds |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Shipping | |
| Shipping Weight | 5,948-lbs (2,697 kgs) |
1 The Lift supports less weight than its rated capacity when the vehicle’s wheelbase is shorter; this is because the wheels of such a vehicle are closer to the middle of the Runways, where there is less strength. For example, the maximum weight allowed on the Lift for a vehicle with a wheelbase of 95" is 50 percent of the Lift’s rated capacity (or 3,500 lbs. when the rated capacity is 7,000 lbs.).
Note: An air supply (minimum: 30 psi / 3 CFM) is may be required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
