Bendpak HDS-40 40,000-lb. Capacity Standard 4 Post Truck Lift

• BendPak’s newest line of heavy-duty four-post truck lifts are here. Bigger sheaves, beefier components and a legacy of dependability--get your hands on these massive machines and bring a higher level of service to your garage or shop. BendPak’s HDS-Truck Series four-post lifts are a whole new breed of rugged. They’re newly engineered super-duty truck lifts that make light work out of heavy lifting. They are built to last and feature increased safety, durability and productivity.

Features:

• 40,000-lb. lifting capacity
• Supersized 12" diameter cable sheaves
• Galvanized lifting cables
• Grease nipples
• Single hydraulic under-runway cylinder
• Integrated flow restrictor
• Durable powder coat
• Spring-loaded safety locks
• Second lock system on constant guard
• Fully enclosed lifting cables
• Multiple adjustable height locking positions
• Maintenance-free electric hydraulic power system
• Conveniently positioned operator controls
• 12" x 12" base plates
• Non-skid runways
• Optional rolling jacks

Specifications:

Capacity

• Lifting Capacity* 40,000 lbs. (18,144 kg)
• *Max Capacity / Front Axle 20,000 lbs. (9,072 kg)
• *Max Capacity / Rear Axle 20,000 lbs. (9,072 kg)

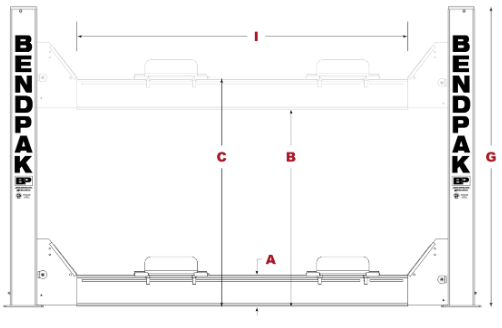

Rise

• A - Min. Runway Height: 8.5" (216 mm)
• B - Max. Rise: 60" (1,524 mm)
• C - Max. Lifting Height: 68.5" (1,740 mm)
• Time to Full Rise: 75 seconds

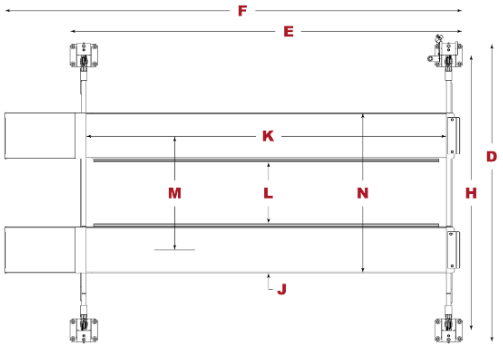

Outside Dimensions

• D - Overall Width: 154" (3,912 mm)
• E - Outside Length: 257" (6,528 mm)
• F - Overall Length: 297" (7,544 mm)
• G - Height of Columns: 93" (2,362 mm)

Inside Dimensions

• H - Width Between Columns: 134" (3,404 mm)
• I - Drive-Thru Clearance: 109" (2,769 mm)

Runways

• J - Runway Width: 28" (711 mm)
• K - Length of Runways: 263" (6,680 mm)
• L - Width Between Runways: 36" (914 mm) or 47" (1,194 mm)
• M - Runway Centerline: 64" (1,626 mm) or 75" (1,905 mm)
• N - Outside Edge of Runways: 92" (2,337 mm) or 103" (2,616 mm)

Minimum Wheelbase

• Rated Capacity: 185" (4,699 mm)
• 75% Capacity: 160" (4,064 mm)
• 50% Capacity: 135" (3,429 mm)
• 25% Capacity: 110" (2,794 mm)

Locking

• Locking Positions: 9
• Lock Spacing: Every 6" / 152 mm

Power Unit

• Motor: 220 VAC / 60 Hz. 1Ph.
• Noise: 45 dB

ACCESSORIES:



          WSA-100                       AIR BOTTLE JACK                       DP-30                      ROLLING JACKS                  AIRLINE KIT

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to function. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
