Bendpak 10APX-181 10K Capacity Two-Post Lift (Extended Height)
10,000‐lb. Capacity / Adaptable Clearfloor / Adjustable Width / HIGH-RISE
The 10AP Series is meticulously crafted to future-proof your shop, incorporating all the essential attributes for optimal vehicle servicing. This groundbreaking lift effortlessly accommodates Electric Vehicles and seamlessly transitions between symmetrical and asymmetrical configurations. The 10APX-181 high-rise lift sports an overhead beam height of 181” to accommodate high-roof cargo vans.
Features
- Durable powder coat finish.
- Expandable top beam accommodates wide or narrow drive-thru configurations.
- Double-telescoping screw pads offer increased versatility.
- Padded overhead safety shutoff bar.
- Exclusive Bi-Metric arm design for more versatile arm positioning.
- Single-point safety release.
- Drop-end arms provide a lower pad height.
- Dual hydraulic direct-drive cylinders.
- Oversized 53" & 59" tall carriages for superior strength and durability.
- Electric / hydraulic HVLP power system.
- Self-lubricating dura-glide UHMW polyethylene bearing system.
- Safety locks in each column spaced every 3".
- Automatic arm restraints withstand over 2000-pounds of side force.
- Heavy-duty 1/2" aircraft-quality equalizer cables.
- Oversized cable sheave diameter reduces cable fatigue.
- 14-piece standard adapter set.
- Four triple-telescoping arms.
- ALI certified.
Specifications
| Model | 10APX-181 |
| Lifting capacity | 10,000 lbs. / 4,536 kg |
| Max. Capacity | 5,000 / 2,268 kg (Front Axle) 5,000 / 2,268 kg (Rear Axle) |

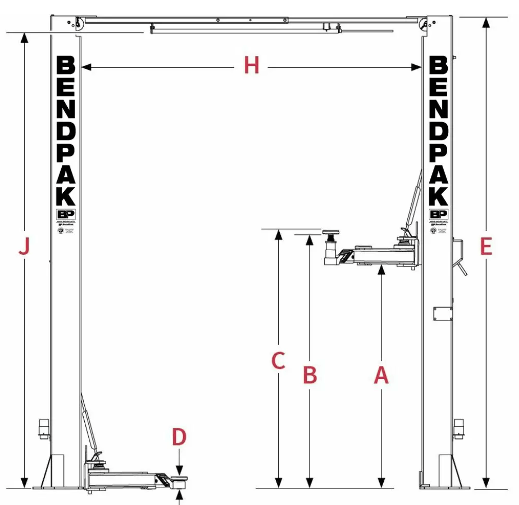

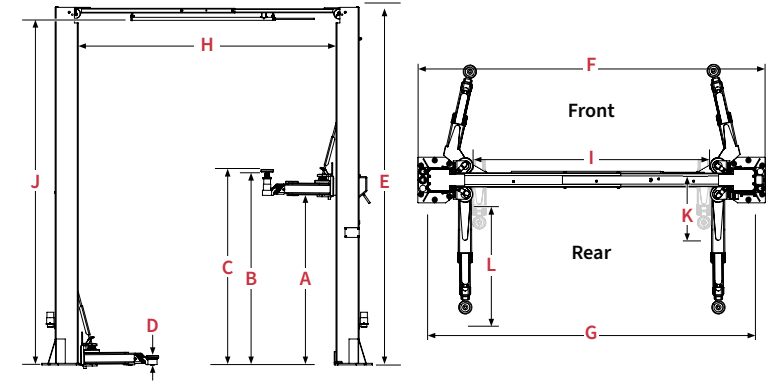

| A – Max. Rise | 75.5 in. / 1,918 mm |
| B – Lifting Height(1) | 79.5 in. / 2,007 mm |
| C – Max. Lifting Height(1) | 89 in. / 2,261 mm |
| D – Min. Height(1) | 4 in. / 102 mm |
| E – Overall Height | 181 in. / 4,597 mm |

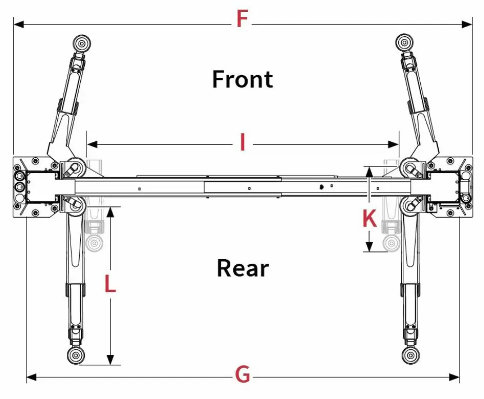

| F – Overall Width | 135 in. / 3,431 mm (Narrow) 145 in. / 3,683 mm (Wide) |
| G – Outside Columns | 127.5 in. / 3,238 mm (Narrow) 137.5 in. / 3,492 mm (Wide) |
| H – Inside Posts | 108.5 in. / 2,756 mm (Narrow) 118.5 in. / 3,010 mm (Wide) |
| I – Drive-Thru | 92 in. / 2,477 mm (Narrow) 102 in. / 2,731 mm (Wide) |
| J – Floor to Top Switch | 175.75 in. / 4,464 mm |
| K – Front Arm Reach | 24.5 in. / 622 mm (min) 50 in. / 1,270 mm (max) |
| L – Rear Arm Reach | 32 in. / 812 mm (min) 59.25 in. / 1,504 mm (max) |
| Max. load per Lift Arm | 2,500 lbs. / 1,134 kg |
| Screw Pad Adjustment | 2 in. / 51 mm |
| Time to Full Rise(3) | ≈ 45 seconds |
| Motor(2) | 220 VAC, 60 Hz, 1 Phase |
| Sound | <70 dB |
(1) Lifting Height is maximum lifting height of lift with contact pads adjusted to low setting and no adapter(s). Maximum Lifting Height is maximum lifting height of lift with contact pads adjusted to high setting and with both tall and medium adapters installed (Sold Separately). (2) Special voltages available upon request. (3) Actual rise and descent times vary depending on vehicle weight. Specifications subject to change without notice.
