Description

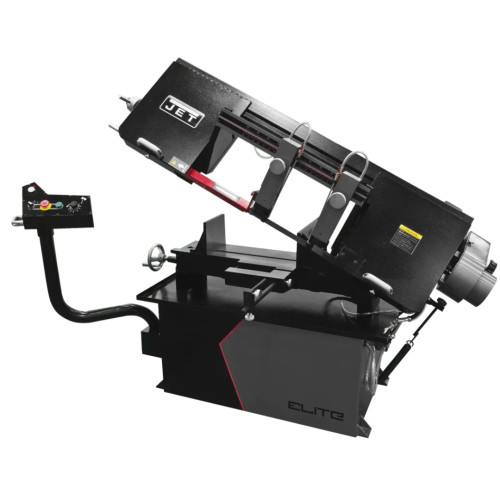

JET Tools HBS-1220MSAH, 12"x20" Semi-Automatic Mitering Variable Speed Bandsaw W/ Hydraulic Vise
The JET HBS-1220MSAH is a 12 x 20 in. semi-automatic mitering horizontal bandsaw for angled and straight cuts in fabrication shops. Its head swivels to cut any angle from 0 to 45 degrees and a hydraulic vise speeds clamping, with variable blade speed, hydraulic downfeed control and a swing-away control panel.
Features
- Heavy duty construction reduces vibration and deflection.
- CSA/US: Following strict guidelines and electrical requirements, this JET Saw is CSA/US certified.
- Automatic blade breakage sensor detects accidental breakage and interrupts the power.
- Blade is fully guarded for operator safety.
- Auto shut off at the end of the cut.
- Mitering head - the workpiece remains fixed while the head swivels to cut any angle 0° to 45°.
- Semi-Automatic bow raises after cut to predetermined height.
- Blade Tensioning Meter.
- Built-in self propelled blade brush prevents chip build up in blade guides.
- Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with the various types of materials.
- Variable speed drivetrain allows the operator to fine tune the blade speed quickly & easily.
- Auxiliary roller support on back of vise.
- One piece blade cover makes changing blades extremely easy.
- Circulating coolant system through both blade guides.
- Swing away control arm puts the controls at the Operator fingertips.
- Hydraulic vise makes setup easier for the operator.
Specifications
| Model Number | HBS-1220MSAH |
| Head Movement (Deg.) | 45 |
| Maximum Vise Opening (In.) | 19-5/8 |
| Motor (HP) | 3 HP , 230/460V, 3-Ph |
| Overall Dimensions (L x W x H) (In.) | 87-3/4 x 31.5 x 53 |
| Rectangle at 45 Degrees (In.) | 12-9/16 x 11-7/32 |
| Round at 45 Degrees (In.) | 11-7/32 |
| Round at 90 Degrees (In.) | 11-13/16 |
| Weight (Lbs) | 1625 |
Warranty Information
WARRANTY INFORMATION
JET RED ASSURANCE 2-YEAR WARRANTY
JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET Tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.
JET RED ASSURANCE 2-YEAR WARRANTY
JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET Tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.
