GMC FP-4075 40 x 75 in Wide Belt Sander - 15 HP Metal Sanding Machine

SKU: FP-4075
$26,850.00
$32,220.00
(You save $5,370.00 )

Adding to cart… The item has been added
SKU:
FP-4075
Condition:
New
Availability:
Call us up for details!
Shipping:
Free Shipping
Description

GMC FP-4075 40 x 75 in Wide Belt Sander - 15 HP Metal Sanding Machine

Our 40" Heavy Duty Sander machine are great for deburring and finishing parts in the production and manufacturing industries. Save time with our effortless belt changing system. Avoid shutting down for hours to simply replace your metal wide belt. GMC's Finish Pro Heavy Duty Sander machine for deburring and finishing parts in the production and manufacturing industries.

Features

  • Abrasive belt size: 40” x 75”
  • Motorized Table Lift with computer display.
  • Variable Speed Conveyor.
  • Conveyor Forward & Reverse.
  • Belt Safety Overtravel Switches.
  • Electronic Eye Belt Tracking. Belt tracking adjusting lever (Belt Trimmer) to Re-adjust the tracking system when running extremely out of parallel belts.
  • 4-Jackscrew Table Support.
  • Double Infeed & Outfeed Pinch Rolls with protective guards.
  • Conveyor Belt Tracking System.
  • Safety System with Disc Brake. Air operated disc brakes to stop sanding head in 3-5 seconds in the even of loss of air pressure or activation of any emergency stop device.
  • Table Height Digital Readout.
  • Load Meter indicates percentage of full motor loads.
  • Belt change door electrically interlocked for safety purpose.
  • Air tensioning of belt for accurate tensioning & compensation of belt stretch.
  • Quick release sanding head support for fast belt change.
  • Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area.
  • Emergency stops from almost any point.
  • Noise level bellows 82 dba.
  • Operation manual, control tags, danger signs, and warning labels in English on machine.
  • 208/230V, 3-Phase.

Specifications

 Max. Part Width  40"
 Abrasive Belt Size  40" x 75"
 Contact Roller Size  8" Dia.
 Passline Height  31" - 37"
 Max. Thickness Capacity
 Min. workpiece length
 Max. workpiece weight
 6 1/8"
 Min 8”, need a fixture for smaller parts 375 LBS
 Conveyor Drive Speeds  8 - 40 FPM
 Infeed Conveyor Length  20"
 Dust Collector Capacity  1,800 CFM
 Main Motor  15 HP, 230V
 Conveyor Motor  1.5 HP, 230V
 Table Lifting Motor  1 HP, 230V
 Net Weight, Approx.
 Shipping Weight
 4,650 LBS
 4,859 LBS
 Machine Dimensions (L x W x H)
 Shipping Dimensions
 76" x 88" x 81"
 73" x 67" x 86"

Optional Accessories (Sold Separately)

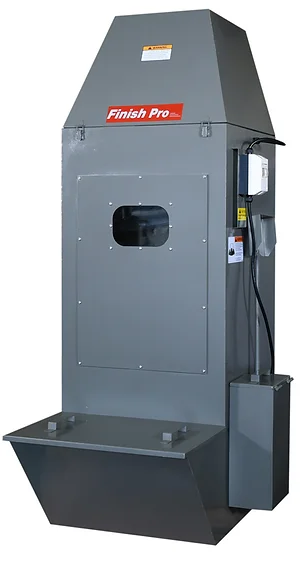

Wet Dust Collector

Downloads

Manual

Catalog

Warranty Information

Warranty Information

GMC Machine Tools Warranty

GMC warranties all machinery sold against failure of defective workmanship or materials which occurs after the product is professionally installed within product specifications and during normal use and operation for the period of one (1) year.

We will replace all parts, that our inspection shows to be defective from a manufacturing standpoint.

Warranty parts will be shipped free of charge to original purchaser.

Labor and or all travel expenses are not included in the warranty and will be charged additionally at market rate should on site repair be ever needed.

If Purchaser decides to return machines within the 1st 30 days of the purchase date, they may do so only with written agreement from GMC, freight prepaid. All machinery returned must be in same condition received.

After GMC inspects the machinery, equipment, GMC will charge a 35% restocking charge due to retuned machines can only be resold as PRE-OWNED OR DEMO WITH reduced market value and limited warranty.

GMC at no time will be liable for injuries, death, property damage, and any consequential damages that result from using our machinery, improper use, improper set up, and installation. Any legal action brought against GMC shall be tried in the State of California County of San Bernardino County.

GMC reserves the right to make specification changes at any time to better improve their product lines to continue to deliver the quality products our customers are used to.

Any machine that has a voltage change, phase converter installed after purchase, or if you forget to add oil into the machine will automatically void warranty. Buyer is fully responsible for parts and labor.

We truly hope you will never need to use this warranty and you have our commitment to work with you diligently If support is ever needed.

We look forward to being of service now and in the future.
