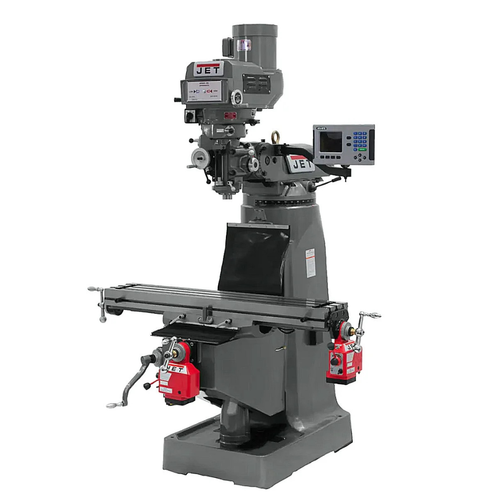

JET Tools JTM-4VS Mill W/ACU-RITE 203 DRO With X, Y & Z-Axis Powerfeeds
Constructed using the Meehanite casting process, JET Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use.
Features
- Certified Meehanite Castings.
- Precision bored and honed milling head.
- Large diameter quill is chromed.
- High precision Class 7 spindle bearings.
- Chrome plated motor shaft with lower bearing support.
- Spindle head is internally cooled.
- Heavy duty splined motor drive.
- One piece quill pinion and shaft.
- Three stage power downfeed with automatic stop.
- Heavy duty spindle brake.
- Locks on all movable surfaces.
- Precision hardened and ground ways and table.
- Adjustable gibs throughout.
- Internal coolant tank built into casting base for use with coolant system (coolant pump not included).
- Tolerance test sheet included.
- One shot lubrication system.
- Way covers.
- Draw bar.
- Tool box with tools.
Specifications
| Stock Number | JT-690099 |
| Collet Capacity | 1/8 - 7/8 |
| Distance Spindle to Column (Max.) (In.) | 19 |
| Max Distance Spindle to Table (In.) | 17-1/2 |
| Model Number | JTM-4VS |
| Motor (HP) | 3 HP, 230/460V, 3Ph |
| Number of Axis | 2 |
| Overall Dimensions (L x W x H) (In.) | 66 x 63 x 85 |
| Powerfeed | X, Y and Z-Axis |
| Quill Diameter (In.) | 3-3/8 |
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
| Range of Spindle Speeds (RPM) | 60 - 4,200 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |
| Style (Type) | Variable Speed R8 |
| T-Slot Centers (In.) | 2-1/2 |
| Table Cross Travel (In.) | 12 |
| Table Longitudinal Travel (In.) | 34 |
| Table Longitudinal Travel With Powerfeed (In.) | 28-3/4 |
| Table Size (L x W) (In.) | 9 x 49 |
| Travel of Knee (In.) | 14-1/2 |
| Travel of Ram (In.) | 13-3/8 |
| Weight (Lbs.) | 2420 |
| Work Table Weight Capacity (Lbs.) | 660 |
