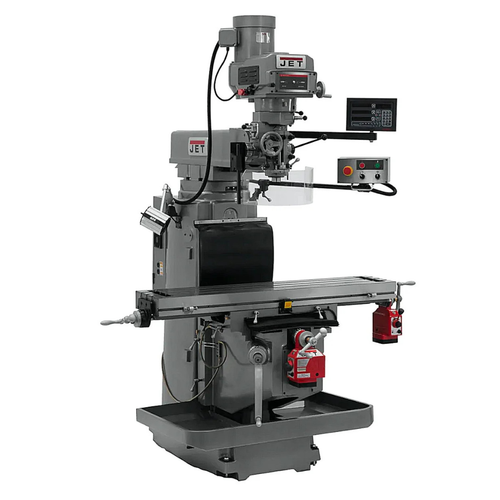

JET Tools JTM-1254RVS W/NEWALL DP700 DRO X & Y Powerfeeds & Air Power Drawbar
The JET JTM-1254RVS and JTM-1254VS combine durability, strength and precision engineering, resulting in 12” x 54” Variable Speed Vertical Milling Machines that turn out high quality components. Designed for ease of use, Jet Mills provide ongoing automatic lubrication and quick nut spindle feed along with the JET exclusive new casting, providing the end-user with an easier solution to leveling the machine without raising it up off the floor.
Features
- Certified Meehanite Castings.
- Precision bored and honed milling head.
- High precision Class 7 spindle bearings.
- Quick Spindle Feed Nut.
- Three-stage power downfeed with automatic stop.
- Heavy-duty spindle brake.
- Precision hardened and ground ways and table.
- Three Precision ground t-slots.
- Turcite B on X & Y Axis.
- Adjustable gibs throughout.
- CSA/CUS: Following strict guidelines and electrical requirements, these JET Mills are CSA/CUS certified.
- Spindle Guard.
- Spindle Brake for rapid stopping of the spindle.
- Automatic Lubrication every 180 minutes with a flow of 3-6cc reduces maintenance.
- Quick nut for spindle feed.
- JET exclusive new casting provides the end-user an easier solution to leveling the machine without raising it up off the floor.
- Two 115V outlets on electrical box for Powerfeeds only.
- Spindle Safety Guard.
- Led Machine Lamp.
- Dual Locks on All Moveable Surfaces.
- Chip Pan.
- Draw bar.
- Tool box with tools.
Specifications
| Stock Number | JT-698129 |
| Collet Capacity | 1/8 - 1 |
| Column Width (In.) | 14-1/4 |
| Distance Spindle to Column (Max.) (In.) | 27-3/4 |
| Max Distance Spindle to Table (In.) | 23 |
| Model Number | JTM-1254RVS |
| Motor (HP) | 5HP, 230/460V, 3Ph |
| Number of Axis | 2 |
| Overall Dimensions (L x W x H) (In.) | 92-1/8 x 79-7/8 x 104-1/4 |
| Power Draw Bar | Pneumatic |
| Quill Diameter (In.) | 4-1/8 |
| Quill Down Feed Rates (IPR) | .0015–.003–.008 |
| Range of Spindle Speeds (RPM) | 80 - 3,800 |
| Saddle Width (In.) | 25-5/8 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |
| Style (Type) | Variable Speed R8 |
| T-Slot Centers (In.) | 2-1/2 |
| Table Cross Travel (In.) | 15-1/3 |
| Table Longitudinal Travel (In.) | 33-7/8 |
| Table Longitudinal Travel With Powerfeed (In.) | 28-1/4 |
| Table Size (L x W) (In.) | 12 x 54 |
| Travel of Knee (In.) | 19-1/4 |
| Travel of Ram (In.) | 25 |
| Weight (Lbs.) | 3969 |
| Work Table Weight Capacity (Lbs.) | 925 |
