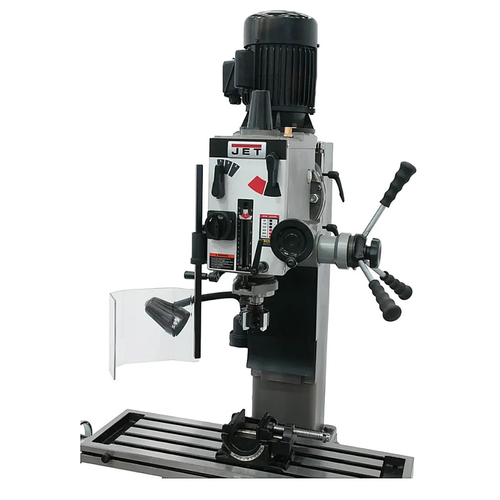

JET Tools JMD-45VSPF Variable Speed Square Column Geared Head Mill/Drill W/Newall DP500 2-Axis DRO
- Brand:
- JET Tools
- SKU:
- JT-351162
- Condition:
- New
Current lead time may be 4 to 8 weeks. Please contact us at 800-562-4791 for availability.
Current lead time may be 4 to 8 weeks. Please contact us at 800-562-4791 for availability.
JET Tools JMD-45VSPF Variable Speed Square Column Geared Head Mill/Drill W/Newall DP500 2-Axis DRO
DESCRIPTION
Engineered to maximize production, the heavy-duty JMD-45VSPF variable speed Square Column Geared Head Mill Drill with power downfeed capability delivers the rigidity needed to perform a variety of precision drilling applications in high intensity environments.
FEATURES
- Heavy-duty design allows for a variety of precision drilling applications
- Full power to the cutting tools through Variable Speed geared head
- Square column with dovetail ways
- CSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified
- Spindle guard
- Work Lamp
- Calibrated fine down feed built in
- Easy to read internal depth gauge
- Head tilts left & right 90º
- Rapid spindle speed changes through quick-select gear shift levers
- Forward/reverse switch
- Power Downfeed standard
- Milling table allows for movement
- R8 spindle allows use of all mill tooling
- Mill Drill Stand, p/n 350045, shown in some images, is optional
SPECIFICATIONS
- Digital ReadoutNewall DP500 2-Axis DRO
- Drilling Capacity (In.)1-1/2
- Face Mill Capacity (In.)4
- End Mill Capacity (In.)3/4
- Swing (In.)19-11/16
- Max Distance Spindle to Table (In.)18-1/8
- Spindle Taper (In. x TPI)R8
- Spindle Travel (In.)5
- Spindle Travel Auto (In.)4-1/4
- Quill Diameter (In.)3
- Column Diameter (In.)7-7/8 x 7-5/8 Square
- Number of Spindle SpeedsVariable Speed
- Range of Spindle Speeds (RPM)50-2500
- Table Size (L x W) (In.)9-1/2 x 32-1/4
- Table Longitudinal Travel (In.)20-1/2
- Base Dimensions (In.)26-11/16 x 15-15/16
- Motor (HP)1-1/2HP, 115/230V, 1Ph
- Overall Dimensions (L x W x H) (In.)29 x 36 x 50
- Weight (Lbs.)827
WARRANTY INFORMATION
JET RED ASSURANCE 2-YEAR WARRANTY
JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET Tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.
JET RED ASSURANCE 2-YEAR WARRANTY
JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET Tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.
