Omer Lifts MINI-30VX Mid-Rise Scissor Lift
*Approvals - UL/CSA/CE
OMER’s mid-rise scissor lifts are the ideal lifts for a wide variety of vehicles, ranging from compact cars up to light-duty trucks. Their compact design and smooth lifting motion allow you to safely lift vehicles quickly and efficiently. The unique design of these hydraulic car lifts make them ideal for performing service work on tires, brakes, body repairs and fast lube. The lifting capacity for this category is 6,600 lbs. / 3.0T. OMER’s mid-rise scissor lifts come in two different models: the MINI and the MiG.
Capacity: 6,600 lbs.
Length: 61 in. to 83.5 in.
Collapsed Height: 4.1 in. to 9 in.
Raised Height: 39.3 in. (42 in. with adapters)
Features
- The MINI mid-rise scissor lift has a compact, free-wheel design with the best-in-class weight capacity despite its small footprint. With dimensions of only 78.75 in. x 86.5 in., it is designed to maximize your usable shop space. Thanks to its versatility and ease-of-use, this hydraulic car lift is ideal for most passenger vehicles; from small, compact vehicles, up to light duty trucks. The four mobile flaps installed on the ends of both of the runways are designed to accommodate vehicles with both short and long wheelbases. It is also engineered with no tie bar or floor obstructions and the compact size of the removable torsion bar offers remarkable advantages in logistics and reliability.
- The hydraulic system is designed with a Master/Slave style control. The master cylinder is a single cylinder with two chambers. As hydraulic oil is pumped into the lower chamber, the hydraulic oil in the upper chamber is pushed out and directed to the “Slave” cylinders on each of the runways via an aluminum block manifold. This design guarantees that an equal amount of hydraulic pressure is provided to each of the runways, which, in turn, ensures that the platforms stay level at all times without the need for additional electronic sensors.
- The lack of electronic sensors means that this car scissor lift requires less maintenance than other similar products on the market, while its equalization valve and extra-large pins equipped with zirk grease fittings add to its ruggedness and reliability. Overall, these features translate to less downtime, and make this product the ideal solution for quick-turnaround, high-volume shops. This hydraulic car lift is built to the highest safety standard.
- It is equipped with two five-position mechanical safety locks (one per platform), and two single-point pneumatically actuated lock-releases (one per mechanical safety lock). This ensures side to side stability of the lift and eliminates the potential for accidental lowering of the lift. Additional safety features of this product include parachute valves on each cylinder, a maximum pressure valve, a limit switch with acoustic warning for the complete lowering of the lift below 18 inches, a low-voltage control circuit (24V), and “Dead-Man” controls in case of a loss of power situation.
- The MINI’s open front and rear design, with no tie bars or torsion rods, allows for unobstructed access to the underside of most vehicles on the market. Its independent platform design allows for between 27 and 38 inches of working space. The flat-deck platform and “spotting blocks” allow easy vehicle spotting and a quick set-up by the operator, increasing bay productivity. The low-profile approach ramps provide greater accessibility of smaller compact cars while still being able to accommodate heavier loads. The lift can also be flush mounted for ultimate productivity and space-saving.
- Equipped with a 1.5 kW motor and a double-independent hydraulic system, this car scissor lift both reduces energy consumption while simultaneously maximizing the lifts reliability.
Specifications
| Capacity | 6,600 lb. / 3000 kg |
| Power Supply | 220V 60hz 1 ph 23 amp 2HP/ 1.5 kw |
| Operating Noise Level | <80 db |
| Lifting Time | 20 secs. raised/ 20 secs. lowered |

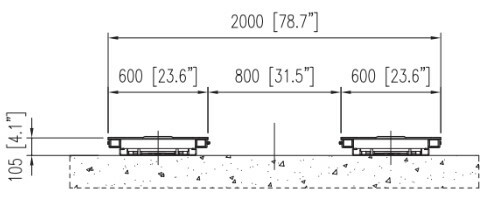

| Overall Width | 78-3/4” / 2000mm |

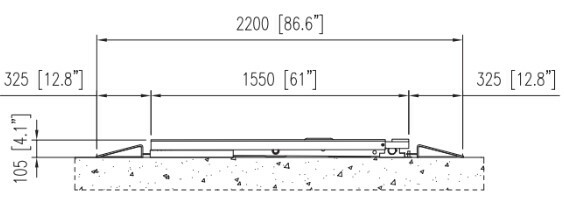

| Overall Length | 86-1/2” / 2200mm |
| Drive-Over Height | 4-1/8” / 105mm |

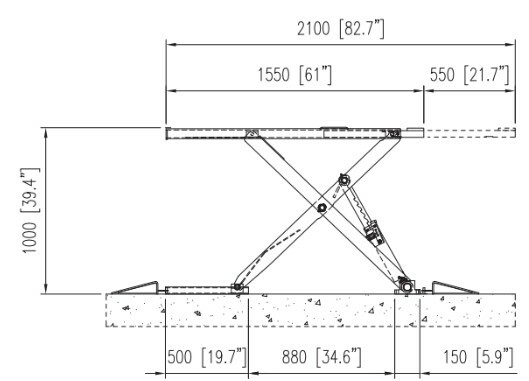

| Overall Lifting Height | 39-3/8”/ 1000mm (42”/ 1066mm with adapters) |
| # of Mechanical Locks | 5 |
| Lock Release | Air-cylinder lock release |
| Finish | Double-bake coat |
| Height Adapters | 2” / 50 mm Rubber-covered blocks |
| Lifting Pad Dimensions |
61” to 82-1/2” Extended x 23-1/2” wide |
| Equalization | Master / Slave System |
| Available In Flush-Mount | Yes |
| Pull-Out Deck Extension | Yes |
| Optional Light Truck Frame Adapter | Yes |
| Shipping Weight | 1540 lb. / 700kg |
| Country Of Manufacture | Italy |
| Approvals UL/CSA/CE | Yes |
Optional Accessories
- Hot-dipped galvanization for outdoor use
- Non-standard power supply 230V-460V / 3Ph / 50-60Hz
- Hoses length up to 26 ft.
- Low-Approach drive on ramps
- Traverse Beam kit for vans
- Hand pump for emergency descent
