Bendpak SP-7XE 7000 Lbs Full-Rise Scissor Lift
This space‐saving, frame engaging lift features no cross members whatsoever, making installation simpler than ever. It easily accommodates most passenger vehicles and light trucks, and it comes complete with pneumatic safety locks, rubber lifting blocks and an open‐center for full under‐car accessibility.
Features
- 7,000-lb. lifting capacity.
- Pneumatic safety locks.
- Hardened pivot pins with "Zerk" fittings.
- Open-center design.
- Ergonomic controls.
- Dual-cylinder hydraulic design provides extra power.
- Low-profile.
- Surface-mount.
Specifications

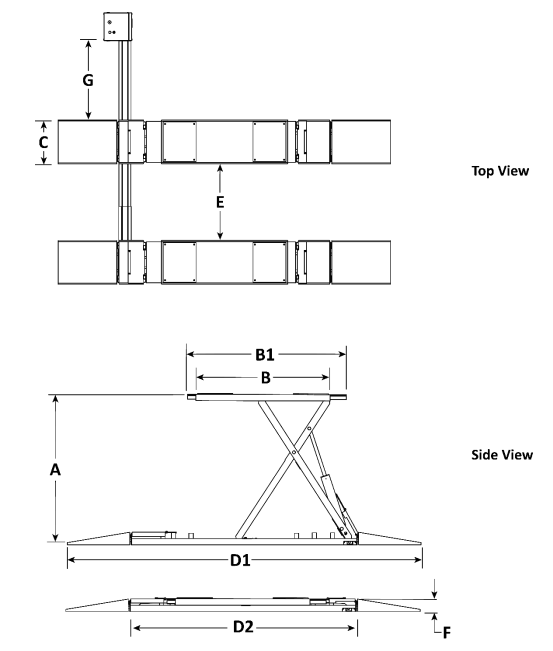

| Model | SP-7XE |
| Mounting Style | Surface mount |
| Lifting capacity | 7,000 lbs. / 3,175 kg |
| A Maximum height raised (no blocks) | 70.5 in. / 1,790 mm |
| B Individual Platform length | 62.5 in. / 1,590 mm |
| B1 Extended Platform length | 74 in. / 1,880 mm |
| C Individual Platform width | 21.75 in. / 550 mm |
| D Total length | D1: 165 in. / 4,190 mm (includes Drive-up Ramps) |
| E Distance between Platforms | 38 – 44 in. / 968 – 1,114 mm |
| F Lowered height | 6.5 in. / 161 mm |
| G Max distance to Console* | Up to 39.25 in. / 999 mm |
| Safety Lock Positions | 8 |
| Lifting time | ≈45 seconds |
| Motor** | 220 VAC, 50/60 Hz, 1 Ph |
| Operating Pressure at Max. Load | 3,060 psi |
* With the supplied Hydraulic Hoses.
**Special voltages available upon request.
*Specifications subject to change without notice.
