AMGO Hydraulics MR06 6000 Lbs Mid-Rise Scissor Portable Lift
The Mid-Rise Lift is an excellent choice for low ceiling or adding a bay for seasonal increases in business. It provides a good working height for tires, brakes and body repairs. Quick set up time and an extended raised height makes the MR06 a real Winner for those shops that demand speed and quality in their lifting equipment.
Features
- Adjustable sliding radius arms with mechanical self-locking design.
- Strengthen manual multi-position safety locks ensure working safely at different height.
- Innovation power unit stand & telescoping Dolly Combos to move the lift easily.
- Dual hydraulic cylinders and solid platform structure provides maximum strength and stability.
- High speed: From 0~42 7/8” in just 26 seconds.
- Includes height extension adapters and durable pads are suitable for various chassis vehicles.
Specifications
| Model MR06 | Portable Mid Rise Lift | |
| Lifting Capacity | 6,000 lbs | |
| Lifting Time | 56 s | |

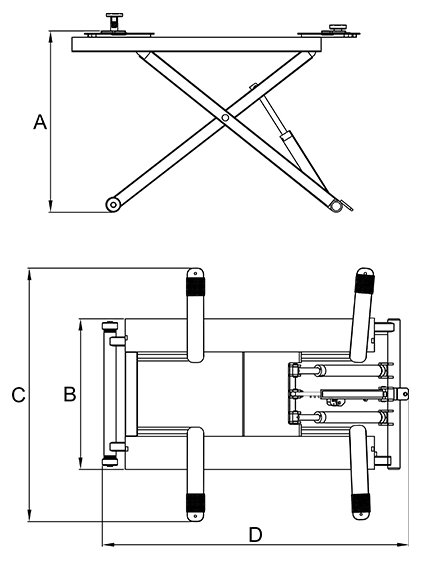

| Lifting height | A | 42 7/8" |
| Minimum height | 4 7/8" | |
| Platform Width | B | 40 1/8" |
| Swing Width | C | 66 1/4" |
| Overall Length | D | 74 1/4" |
| Gross Weight | 950 lbs | |
| Motor | 1.0HP,110V | |
Downloads
Warranty information.
AMGO offers one of the best product warranties in the industry from the original factory commercial invoice date in the industry as follows:
1.Steel structure components(including Columns,Carriage,,Lifting Arms, Top Beam, Floor Cover,Platform,Cross Beam,Car Drive-in Ramp, Scissor,baseframe etc.) warranty for five years.
2.Hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.)warranty for two years.
3.Other parts(no including consumption parts such as rubber pad),electrical components, power unit warranty for one year.
Warranty procedure:
In order to start a warranty claim, you need fill out completely (including date of purchase) the warranty card attached below, and then send it to technical.support@amgohyd.com. If this information is not provided, the factory will not support the claim.
Click here to download the warranty card
- Capacity:
- 6,000 Lbs
