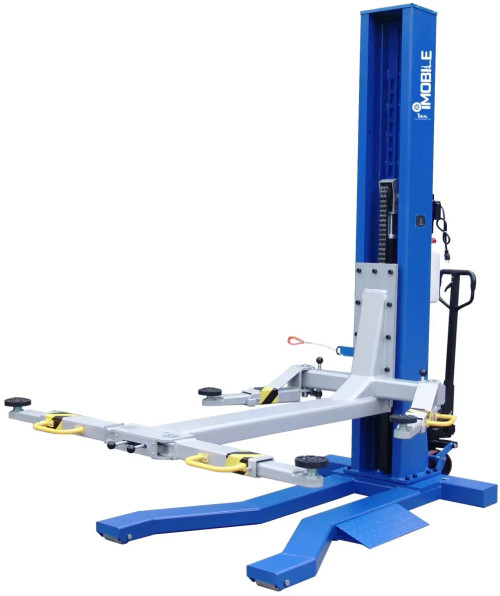

iDEAL MSC-6KLP 6,000Lbs single post car Lift
Similar to a hydraulic floor jack, the iDeal MSC-6KLP is a mobile, single-column lift that can be used in any professional or hobby garage. This particular lift can handle vehicles that weigh up to 6,000 lbs. The drive-over base ramp height is almost four inches, so there is no extra setup required on the lift's part for vehicle positioning.
In several service situations, the MSC-6KLP's drive-over ramps improves vehicle loading efficiency. The lift also has integrated wheels and pallet jack, making it portable. Not only do these features make the lift easy to move around the workspace, but it enables the technicians to free up floor space.
Due to its strong components and rigid base, this lift is able to ensure stability and safety during operation. Its single point lock release system also provides having the vehicle controlled and securely lifted while being able to easily free them. It's also convenient to use for under-vehicle access. The MSC-6KLP has an impressive lifting height of 72 inches which helps greatly for inspections, repairs, and maintenance.
Another great perk is the ability for the lift to be operated with a standard 115V power supply; there’s no need to have extra electric configurations set up to accommodate different settings.
Whether in compact spaces or spacious areas the iDEAL MSC-6KLP serves its function seamlessly with the width of 45 inches and a height of 102 inches.
To sum up, it offers mobility and durability and is user friendly, making it ideal for anyone looking to support a broad range of automotive service requirements accompanied by a reliable lifting solution.
Features
- Weighs 6000lbs.
- Under 4” Wide
- Drive Over Ramps
- Lightweight
- Rigid Base Construction
- Single Point Lock Release
- Telescoping Two Stage Swing Arms
- Double Telescoping Screw Pads
- Stackable extenders (2 sets of 4 @ 2” & 4”)
- Heavy Duty Restraints
- 21 Vertical Positions
- Durable finish paint (also comes in black)
Specifications
| Lift Model | MSC-6KLP |
| Capacity | 6,000 lbs |
| Width Overall | 45-3/16″ |
| Height Overall | 102-3/8″ |
| Depth / Length Overall | 101-9/16″ |
| Lift Rise Height | 72″ |
| Minimum Ceiling Height | 9′ |
| Swivel Pad Height (Adj.) | 3-15/16″ – 6-5/16″ |
| Platform Min. Height | NA |
| Main Side Arm Reach | 19-11/16″ – 26″ |
| Off Side Arm Reach | 24-5/8″ – 34″ |
| Drive Over Height | 3-15/16″ |
| Platform Frame | NA |
| Platform Aluminum Deck | NA |
| Platform Structure | NA |
| Ship Weight | 1,850 lbs |
| Power | 115V – 15 Amp 1Ph |
