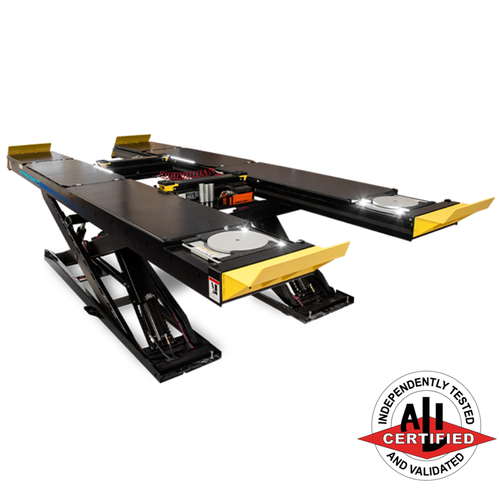

Hofmann EELR785APKG 14k Scissor Alignment Lift Short Bay Surface Mount with Lights and Locks
- Brand:
- Hofmann
- SKU:
- EELR785APKG
- Condition:
- New
Factory Shipped
Factory Shipped
Hofmann EELR785APKG 14k Scissor Alignment Lift, Short Bay Surface Mount with Lights and Locks
UNMATCHED PRODUCTIVITY, PERFORMANCE AND VALUE
Hofmann Scissor Alignment Lifts are easy to operate, provide increased accessibility to alignment adjustment areas and are easy to load. Space saving design allows for up to fi ve scissor lifts to fi t into the same operating space as four 4-post lifts. Locked and Lighted models provide productivity enhancements while allowing the technician to perform critical tasks while minimizing alignment process operations, by illuminating both inspection and adjustment areas and by sequencing the locking of alignment plates.
TRUE TASK LIGHTING SYSTEM (LIGHTS AND LOCKS MODELS)
• Patented auto on/off light feature ensures no power when operating in the hazard zone
• Patented light mounting position optimizes viewing angle, illuminating key inspection and adjustment areas
• Approved for use in Class 1 Division 1 environments for both surface and fl ush mount models
TRUE TASK LIGHTING SYSTEM (LIGHTS AND LOCKS MODELS)
• Patented auto on/off light feature ensures no power when operating in the hazard zone
• Patented light mounting position optimizes viewing angle, illuminating key inspection and adjustment areas
• Approved for use in Class 1 Division 1 environments for both surface and fl ush mount models
Specifications
Short bay surface mount | EELR783APKG |
Short bay flush mount | EELR784APKG |
Short bay surface mount with lights and locks | EELR785APKG |
Short bay flush mount with lights and locks | EELR786APKG |
Standard bay surface mount | EELR787APKG |
Standard bay flush mount | EELR788APKG |
Standard bay surface mount with lights and locks | EELR789APKG |
Standard bay flush mount with lights and locks | EELR790APKG |
Maximum capacity | 14,000 lbs (6,350 kg) |
Overall width | 92.5" (234.95 cm) |
Width between runways | 38" (96.52 cm) |
Overall Length: | |
Short Bay (Surface / Flush) | 256.19"/222.38" (650.7/564.8 cm) |
Standard Bay (Surface / Flush) | 270"/238.63" (685.8/606 cm) |
4 wheel alignment wheelbase | 88"-155" (223.52 - 393.7 cm) |
2 wheel alignment wheelbase | |
(Short / Standard) | Up to 165" (419 cm)/180" (457 cm) |
General service wheel base | |
(Short / Standard) | Up to 179" (454.7 cm)/194"(492.8 cm) |
Runway surface length | |
(Short / Standard) | 195.5" (496.6cm)/210" (533.4 cm) |
Runway surface width | 26" (66 cm) |
Maximum raised height | |
(Surface / Flush) | 72" (182.9 cm)/62" (157.5 cm) |
Minimum lowered height | |
(Surface / Flush) | 10" (25.4 cm)/0" (0 cm) |
Lifting time (at full load) | 75-85 Seconds |
Air supply requirements | 90-120 PSI |
Power supply requirements | 230VAC 1Ph 60Hz 20AMP |
Shipping weights (without jacks): | |
EELR783A | 6,077 lbs (2,756 kg) |
EELR784A | 5,877 lbs (2,665 kg) |
EELR785A | 6,306 lbs (2,860 kg) |
EELR786A | 6,106 lbs (2,770 kg) |
EELR787A | 6,207 lbs (2,815 kg) |
EELR788A | 6,007 lbs (2,725 kg) |
EELR789A | 6,387 lbs (2,897 kg) |
EELR790A | 6,187 lbs (2,806 kg) |
Console dimensions (D x W x H) | 16.5" x 14.125" x 45.75" (41.9 x 35.9 x 116.2 c m) |
STANDARD ACCESSORIES | |
7,000 lb lifting capacity roller jacks for 14k scissor lifts Lights and locking turnplates included with specific lift models | |
Premium turnplates (LxWxH) 18.5"x19.7"x2" (47x50x5 cm) | EAK0289J06A |
Paddle kit | EAK0277J28A |
OPTIONAL ACCESSORIES | |
Turn plate hold down, shim pad, paddle kit | EAK0277J67A |
Download
Hofmann has been a partner to automotive garages and tire shops for decades. For more than 80 years our name has been synonymous for delivering precision, quality and innovative garage equipment. It is our goal to provide the latest technology and user-friendly features to meet the needs of automotive service professionals.
Hofmann equipment Warranty Policy
Hofmann USA products carry the following warranties:
1. HOFMANN WHEL BALANCERS:
- LABOR 6 MONTHS
- PARTS 1 YEAR
- ELECTRONIC CIRCUIT BOARD 3 YEARS
- ELECTRIC MOTOR 5 YEARS
2. HOFMANN BRAKE LATHES:
- LABOR - 6 MONTHS
- PARTS - 2 YEARS
- ELECTRIC MOTOR - 1 YEAR
3. HOFMANN TIRE CHANGERS:
- LABOR - 6 MONTHS
- PARTS - 1 YEAR
- ELECTRIC MOTOR - 3 YEARS
- AIR MOTOR - 1 YEAR
- TRANMISSION - 3 YEARS
4. HOFMANN WHEEL ALIGNERS:
- LABOR - 6 MONTHS
- CIRCUIT BOARDS, PC’S, CRT & LCD - 3 YEARS
- PARTS & PRINTER - 1 YEAR
5. HOFMANN LIFTS:
- LABOR - 1 YEAR
- PARTS - 1 YEAR
- POWER PACK - 18 MONTHS (1 YEAR SCISSOR ALIGNMENT)
- HYDRAULICS - 1 YEAR
