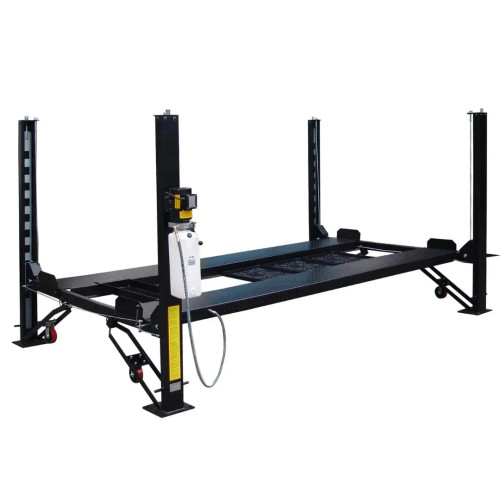

JMC Equipment JMC9K-DX-XLT 9,000 Lb Four Post Lift

Deluxe Storage / Service Lift


  • 9,000 lbs. Capacity.
  • Industry leading Runway length & Drive-Thru width.
  • Cable Driven.
  • Single Point Manual Lock Release.
  • Adjustable Locking Positions.
  • Slack Cable Safety.
  • Steel Approach Ramps.
  • Great for storage and/or general commercial service.
  • Includes Drip Trays, Jack Tray & poly Caster Kit


 Lift Model  JMC9K-DX-XLT
 Capacity  9,000 lbs
 Overall Length w/Ramp  239″
 Overall Width (Outside Base Plates)  123″
 Overall Height  97″
 Lifting Height  85″
 Width Between Posts  111-1/2″
 Length of Runways  188-1/2″
 Width of Runways  20″
 Lifting Speed  100S
 Maximum Clearance under Track  81″
 Cable Diameter  3/8″
 Base Plate Size  12″ x 12″
 Lock Position  11
 Ship Weight  2,354 lbs
 Power  115V – 20 Amp – 1PH



JMC9K-DX-XLT User Manual


Boise, ID 83709
Elwood, IN 46036
Temecula, CA 92590
Norcross, GA 30071
Brooksville, FL 34604
Pontiac, MI 48342
Reidsville, NC 27320
Alvarado, TX 76009
Kalispell, MT 59901
West Valley City, UT 84119

*Tuxedo collects Sales Tax on all orders shipped to California


Structural Warranty:

The following parts and structural components carry a five year warranty:

Columns, Arms, Uprights, Swivel Pins

Legs, Carriages, Overhead Beam

Tracks, Cross Rails, Top Rail Beam

Limited One-Year Warranty:

Tuxedo Distributors, LLC (Tuxedo) offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials orworkmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not beenoperated or maintained according to specifications.

Other Limitations:

This warranty does not cover:

1. Parts needed for normal maintenance

2. Wear parts, including but not limited to cables, slider blocks, chains, rubber pads and pulleys

3. Replacement of lift and tire changer cylinders after the first 30 days. A seal kit and installation instructions will be sent for repairs thereafter.

4. On-site labor

Upon receipt, the customer must visually inspect the equipment for any potential freight damage before signing clear on the shipping receipt. Freight damage is not considered a warranty issue and therefore must be noted for any potential recovery with the shipping company.

The customer is required to notify Tuxedo of any missing parts within 72 hours. Timely notification must be received to becovered under warranty.

Tuxedo will replace any defective part under warranty at no charge as soon as such parts become available from the manufacturer. No guarantee is given as to the immediate availability of replacement parts.

Tuxedo reserves the right to make improvements and/or design changes to its lifts without any obligation to previously sold, assembled or fabricated equipment.

There is no other express warranty on the Tuxedo lifts and this warranty is exclusive of and in lieu of all other warranties,expressed or implied, including all warranties of merchantability and fitness for a particular purpose.

To the fullest extent allowed by law, Tuxedo shall not be liable for loss of use, cost of cover, lost profits, inconvenience,lost time, commercial loss or other incidental or consequential damages.

This Limited Warranty is granted to the original purchaser only and is not transferable or assignable.

Some states do not allow exclusion or limitation of consequential damages or how long an implied warranty lasts, so the above limitations and exclusions may not apply. This warranty gives you specific legal rights and you may have other rights, which may vary from state to state.
