jmc-shipping-button.pngBendPak HDS-27 27,000-lb. Capacity Standard Length 4 Post Lift

This is where our lifts really step into the next level of lifting. If you need a bigger, better four-post lift that can handle a 27,000-lb., Class 7 semi-truck, you need the HDS27. Bigger sheaves and beefier components carry on our legacy of dependability. If your shop services commercial and/or municipal vehicles, a lift of this stature is practically mandatory. Get your hands on this utterly massive truck lift and bring a higher level of service to your garage or shop.

Bendpak Leak Proof  Bendpak HDS-27 Floorplan

Bendpak Safe Balancing Bendpak Car Lift Guide Bendpak Top 10 Car Lift Buyer's Guide



Features

  • 27,000-lb. lifting capacity.
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493.
  • Supersized 12" diameter cable sheaves.
  • Galvanized lifting cables.
  • Grease nipples.
  • Single hydraulic under-runway cylinder.
  • Integrated flow restrictor.
  • Durable powder coat.
  • Spring-loaded safety locks.
  • Second lock system on constant guard.
  • Fully enclosed lifting cables.
  • Multiple adjustable height locking positions.
  • Maintenance-free electric hydraulic power system.
  • Conveniently positioned operator controls.
  • 12" x 12" base plates.
  • Non-skid runways.
  • Optional rolling jack.

Specifications

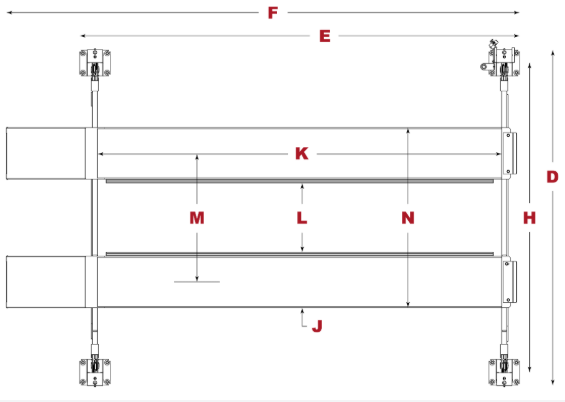

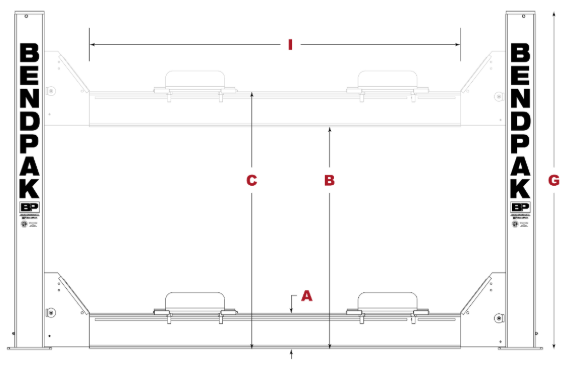

 MODEL  HDS-27
 Lifting Capacity  27,000 lbs. / 12,247 Kg
 Max Capacity / Front Axle  13,500 lbs. / 6,124 Kg.
 Max Capacity / Rear Axle  13,500 lbs. / 6,124 Kg.
 A -Overall Width  153-1/2” / 3899 mm
 B -Outside Length  257” / 6528 mm
 C -Overall Length  312-1/2” / 7940 mm
 D -Height of Columns  91-1/4” / 2318 mm
 E -Min. Runway Height  9-1/2” / 240 mm
 F -Max. Rise  60” / 1524 mm
 G -Max. Lifting Height  69-1/2” / 1764 mm
 H -Width Between Columns  133-1/2” / 3391 mm
 I -Runway Width  22” / 559 mm
 J -Width Between Runways  MIN  40” / 1016 mm
 J -Width Between Runways MAX  45-1/4” / 1149 mm
 K -Runway Centerline MIN  67” / 1702 mm
 K -Runway Centerline MAX  72-1/4” / 1835 mm
 L -Outside Edge of Runways  MIN  89” / 2261 mm
 L -Outside Edge of Runways MAX  94-1/4” / 2394 mm
 M -Drive-Thru-Clearance  109” / 2769 mm
 N -Length of Runways  256-1/2” / 6520 mm
 Min. Wheelbase @ Rated Capacity  185” / 4699 mm
 Min. Wheelbase @ 75% Capacity  160” / 4064 mm
 Min. Wheelbase @ 50% Capacity  135” / 3429 mm
 Min. Wheelbase @ 25% Capacity  110” / 2794 mm
 Locking Positions  13
 Lock Spacing  Every 4” / 100 mm
 Lifting Time  75 Seconds
 Standard Motor   220 VAC / 60 Hz. 1Ph



*The design, material and specifications are subject to change without notice.
