BendPak HDS18E 18,000-lb. Car Lift
HDS-18E 18,000-lb. Capacity / Four-Post Lift / Standard
Ready to lift a bus, dump truck and some truly heavy farm equipment? You may just need the HDS-18E, BendPak’s 18,000-lb. capacity four-post truck lift that also handles your low-rise sports cars and compacts with ease.
You may just need the HDS-18E, BendPak’s 18,000-lb. capacity four-post lift that also handles your low-rise sports cars and compacts. Aircraft-quality cables and a single hydraulic cylinder keep this car lift working for you day in and day out.
BendPak’s HDS-18E four-post lift is engineered to make light work out of heavy lifting. It’s built to last and features upgrades that increase safety, durability and productivity. This is the lift that graduates from the class of mid-size trucks, vans and SUVs up to heavy-duty applications. This is a professional truck lift that can even handle some industrial and farming equipment. It’s also lighter-duty than other lifts in the truck-weight category, so it’s not overkill when you don’t need, for instance, 20 tons of lift capacity when 9 tons will do just fine.
Features
- 18,000-lb lifting capacity.
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493.
- Supersized 12" diameter cable sheaves.
- Galvanized lifting cables.
- Grease nipples.
- Single hydraulic under-runway cylinder.
- Integrated flow restrictor.
- Durable powder coat.
- Spring-loaded safety locks.
- Second lock system on constant guard.
- Fully enclosed lifting cables.
- Multiple adjustable height locking positions.
- Maintenance-free electric hydraulic power system.
- Conveniently positioned operator controls.
- 12" x 12" base plates.
- Optional rolling jacks.
Specifications
MODEL | HDS-18E |
Lifting Capacity | 18,000 lbs. / 8165 Kg. |
Max Capacity / Front Axle | 9,000 lbs. / 4082 Kg. |
Max Capacity / Rear Axle | 9,000 lbs. / 4082 Kg. |

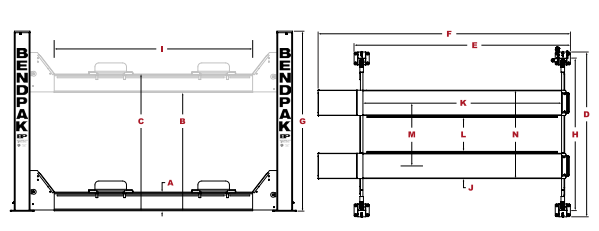

A -Overall Width | 153-1/2” / 3899 mm |
B -Outside Length | 257” / 6528 mm |
C -Overall Length | 309-1/4” / 7856 mm |
D -Height of Columns | 91-1/4” / 2318 mm |
E -Min. Runway Height | 8-1/2” / 216 mm |
F -Max. Rise | 60” / 1526 mm |
G -Max. Lifting Height | 69-1/2” / 1766 mm |
H -Width Between Columns | 133-1/2” / 3391 mm |
I -Runway Width | 22” / 559 mm |
J -Width Between Runways MIN | 40” / 1016 mm |
J -Width Between Runways MAX | 45-1/4” / 1149 mm |
K -Runway Centerline MIN | 67” / 1702 mm |
K -Runway Centerline MAX | 72-1/4” / 1835 mm |
L -Outside Edge of Runways MIN | 89” / 2261 mm |
L -Outside Edge of Runways MAX | 94-1/4” / 2394 mm |
M -Drive-Thru-Clearance | 109” / 2769 mm |
N -Length of Runways | 257” / 6528 mm |
Min. Wheelbase @ Rated Capacity | 185” / 4699 mm |
Min. Wheelbase @ 75% Capacity | 160” / 4064 mm |
Min. Wheelbase @ 50% Capacity | 135” / 3429 mm |
Min. Wheelbase @ 25% Capacity | 110” / 2794 mm |
Locking Positions | 13 |
Lock Spacing | Every 4” / 100 mm |
Lifting Time | 75 Seconds |
Standard Motor | 220 VAC / 60 Hz. 1Ph |
*The design, material and specifications are subject to change without notice.
